FUEL TANK

T20 TC250 SCRAMBLER 1969 USA (E03)

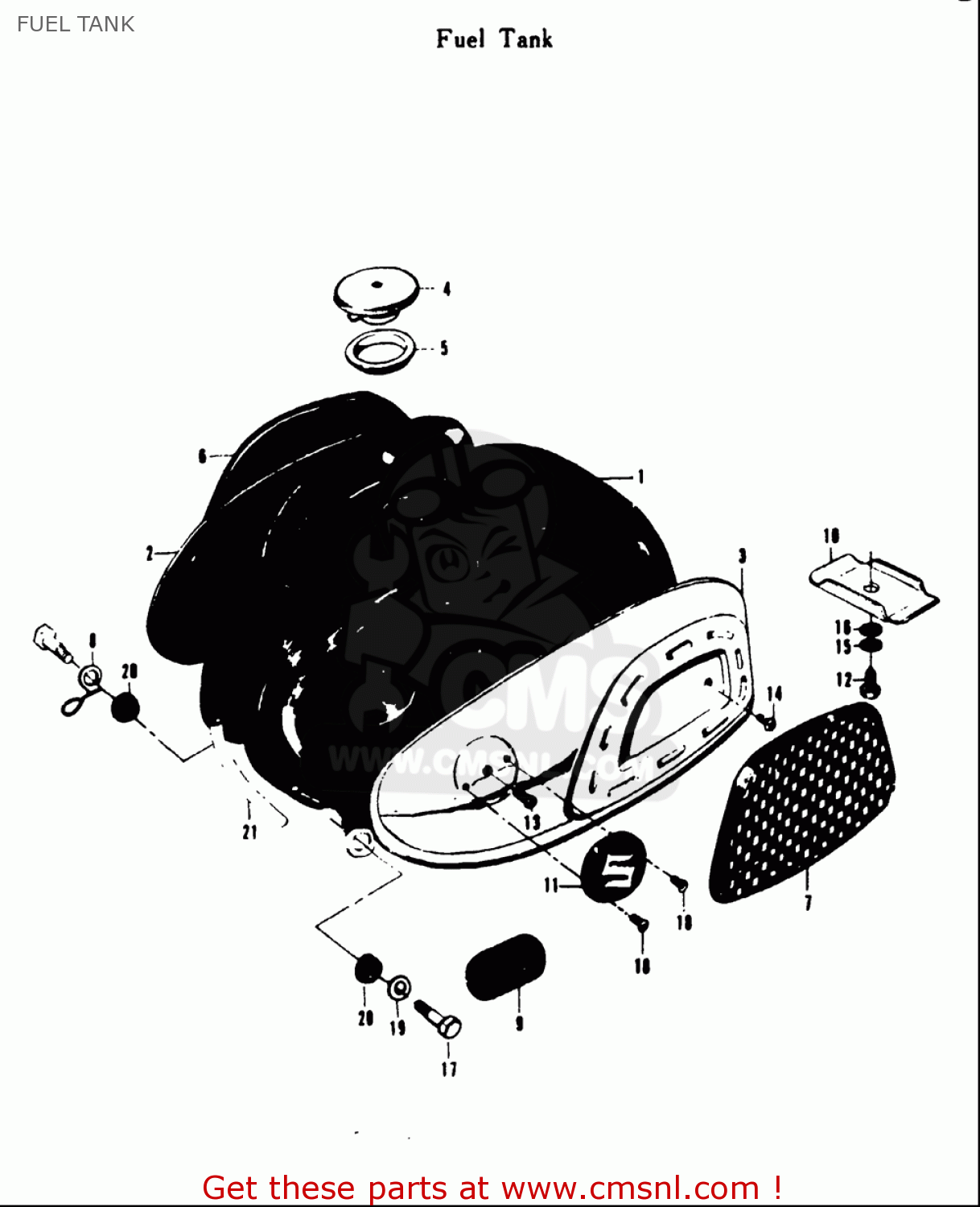

Fuel tank diagram T20 TC250 SCRAMBLER 1969 USA (E03)

FUEL TANK T20 TC250 SCRAMBLER 1969 USA (E03)

FUEL TANK T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

12

0150008307
ref: 12

BOLT

€ 2.50

14

0912505117
ref: 14

SCREW(5X6)

€ 2.50

15-1

0832101087
ref: 15-1

WASHER,LOCK

€ 2.00

16

0832201087
ref: 16

WASHER

€ 2.00

19

0916012089
ref: 19

WASHER(12.5X26X1.6)

€ 2.00
