OPTIONAL

T20 TC250 SCRAMBLER 1969 USA (E03)

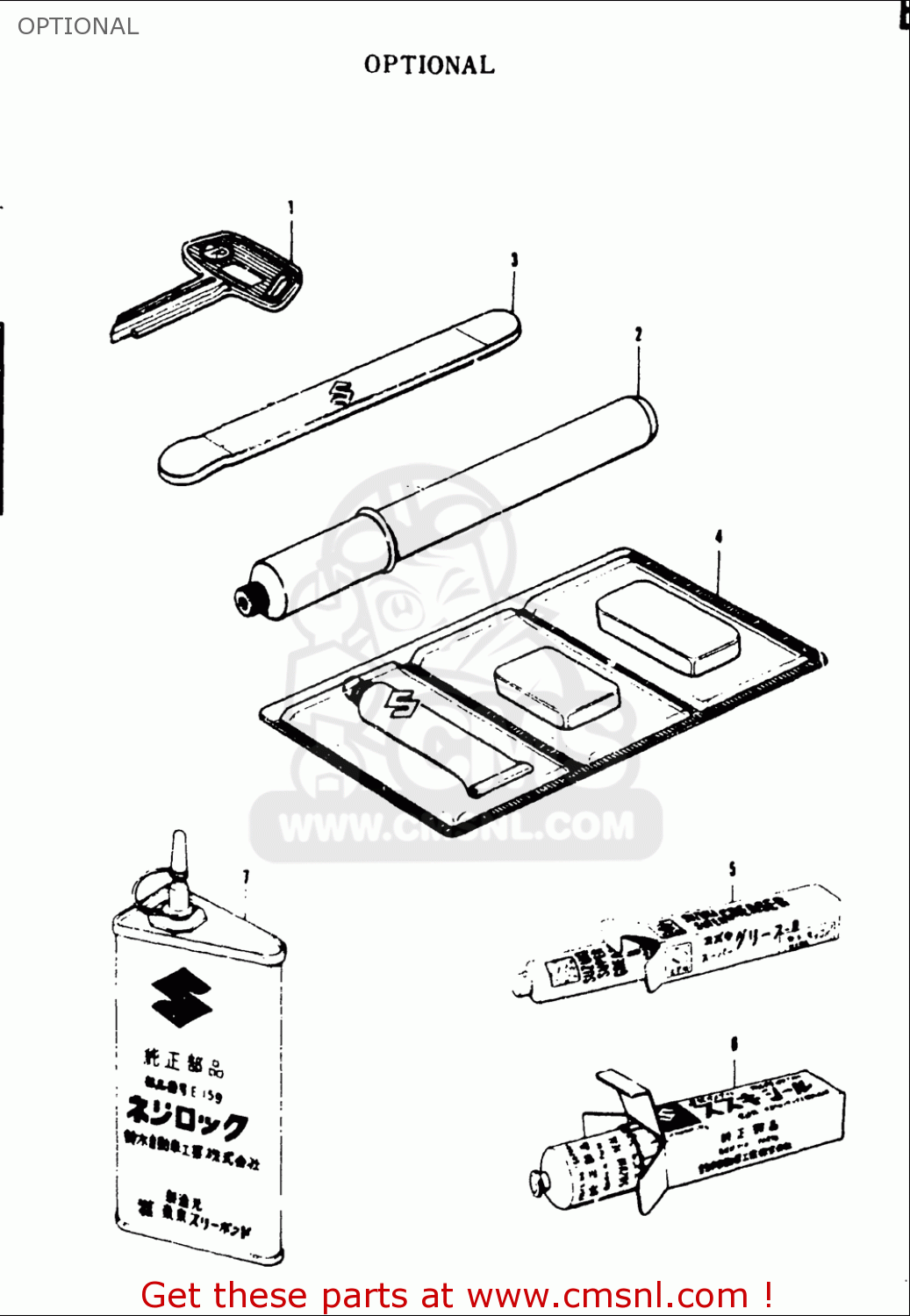

Optional diagram T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

0982500002
ref: 3

LEVER,TIRE

€ 16.50

7-4

1148211000
ref: 7-4

CRANKEASE RIGHT COVER GASKET

€ 6.50

7-5

1149511000
ref: 7-5

CLUTCH RELEASE ADJUSTING CAP G (TC250; I.D.=78(3.07). O.D.=110(4

€ 6.00

7-6

1312511000H17
ref: 7-6

GASKET,CARBURETOR (NAS)

€ 3.00

7-7

1418101D00
ref: 7-7

GASKET,EXHAUST PIPE (NAS)

€ 8.00

7-10

0916806001
ref: 7-10

GASKET(6.2X11X1) (NAS)

€ 1.50

7-11

0916806004
ref: 7-11

GASKET(6.2X11X1).2 (NAS)

€ 1.50

7-12

0916808016
ref: 7-12

GASKET(8.2X14X1) (NAS)

€ 1.00

7-13

0916810002
ref: 7-13

GASKET(10X14X3.6) (NAS)

€ 2.00

7-14

0916810005
ref: 7-14

GASKET(10X16X3) (NAS)

€ 6.00

7-15

0916814001
ref: 7-15

GASKET(14.5X20.5X1) (NAS)

€ 4.50

7-16

0928022001
ref: 7-16

O RING(D:2.4,ID:21.8)

€ 2.00

7-17

0928048002
ref: 7-17

O RING(D:2.6,ID:47.4)

€ 1.50
