EXHAUST PIPE-MUFFLER

T20 TC250 SCRAMBLER 1969 USA (E03)

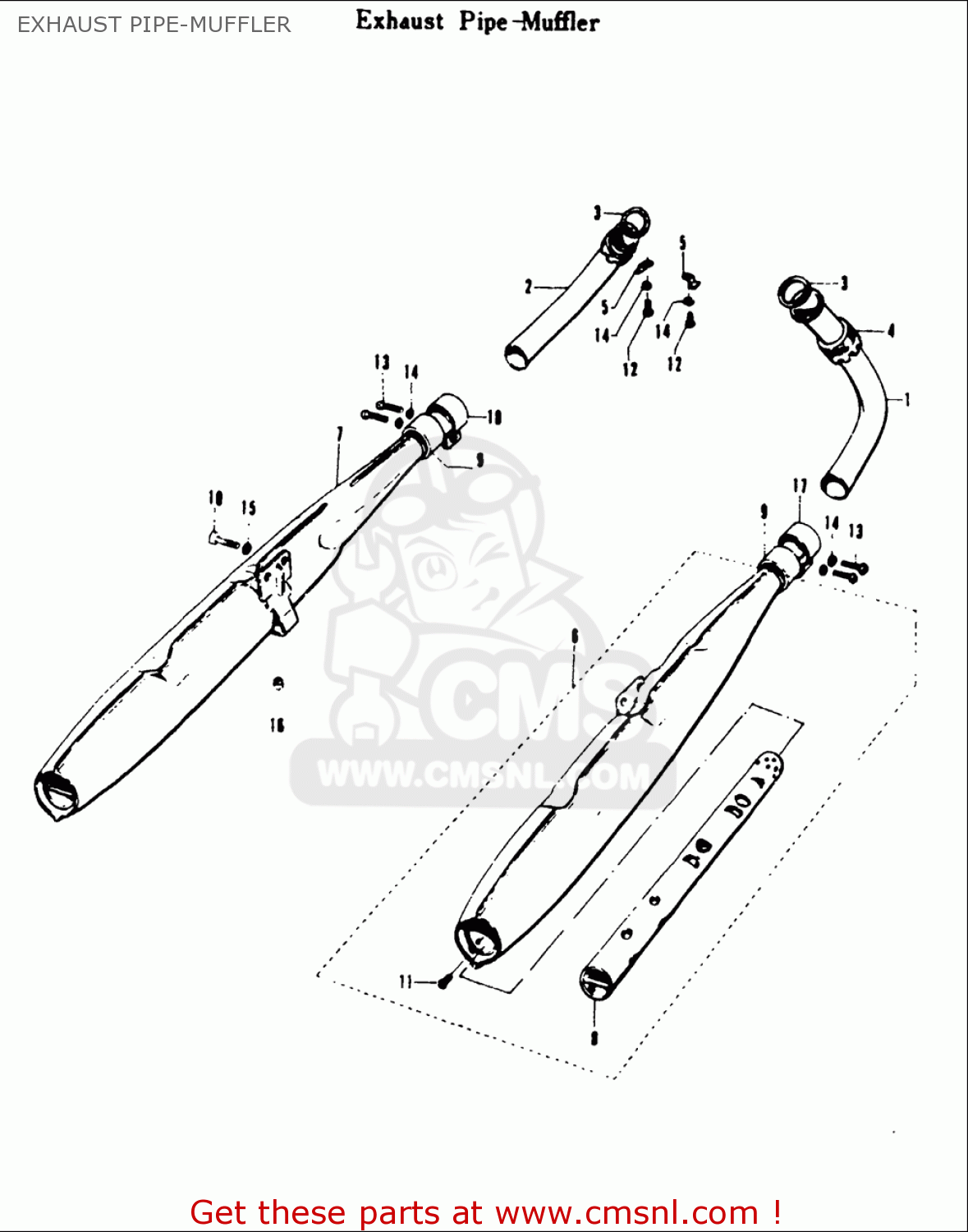

Exhaust pipe-muffler diagram T20 TC250 SCRAMBLER 1969 USA (E03)

EXHAUST PIPE-MUFFLER T20 TC250 SCRAMBLER 1969 USA (E03)

EXHAUST PIPE-MUFFLER T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

3

1418101D00
ref: 3

GASKET,EXHAUST PIPE (NAS)

€ 8.00

5

1418311000
ref: 5

PLATE,EXHAUST PIPE

€ 51.00

12

0211206127
ref: 12

SCREW

€ 2.00

14

0832101067
ref: 14

WASHER,LOCK

€ 2.50

15

0832101107
ref: 15

WASHER,LOCK

€ 2.00

16

0932110001
ref: 16

CUSHION

€ 2.50
