STAND-REAR BRAKE-FOOTREST BAR

T20 TC250 SCRAMBLER 1969 USA (E03)

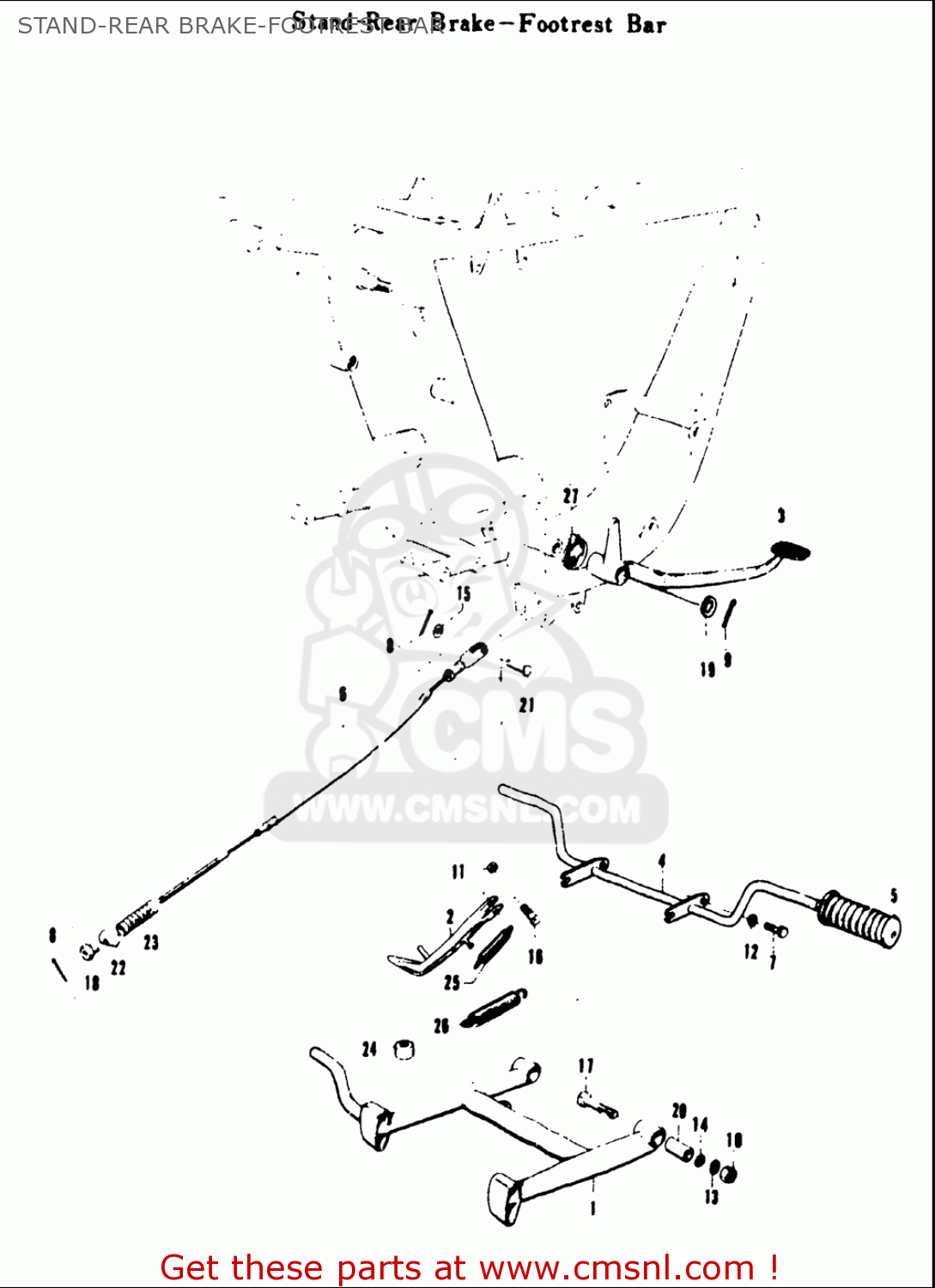

Stand-rear brake-footrest bar diagram T20 TC250 SCRAMBLER 1969 USA (E03)

STAND-REAR BRAKE-FOOTREST BAR T20 TC250 SCRAMBLER 1969 USA (E03)

STAND-REAR BRAKE-FOOTREST BAR T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

2

4231008002
ref: 2

STAND,PROP

€ 34.00

5

4355109000
ref: 5

RUBBER,FR FOOTREST

€ 21.00

6

5850011000
ref: 6

CABLE ASSY,RR BRAKE

€ 39.00

7

0150008163
ref: 7

BOLT

€ 2.00

9

041113030A
ref: 9

PIN

€ 1.50

10

0831000107
ref: 10

NUT

€ 2.50

11

0831000107
ref: 11

NUT

€ 2.50

12

0832101087
ref: 12

WASHER,LOCK

€ 2.00

13

0832101107
ref: 13

WASHER,LOCK

€ 2.00

14

0832201107
ref: 14

WASHER

€ 2.50

15

0832201067
ref: 15

WASHER

€ 2.00

16

0910010287
ref: 16

BOLT(10X27)

€ 4.50

17

0910010017
ref: 17

CENTER STAND BOLT

€ 1.50

18

0915006014
ref: 18

NUT

€ 3.50

20

0918010001
ref: 20

SPACER(10.5X16X30)

€ 3.50

21

0920005001
ref: 21

PIN(L:17.5)

€ 1.50

22

0920913018
ref: 22

PIN(13X18)

€ 3.50

23

0928705001
ref: 23

SEAL,DUST

€ 11.00

24

0932007001
ref: 24

CUSHION

€ 4.00

25

0944314017
ref: 25

SPRING

€ 6.50

26

0944316005
ref: 26

SPRING

€ 12.00

27

0944839001
ref: 27

SPRING

€ 1.50
