FRAME - FRAME LEFT COVER - OIL TANK - OIL TANK OUTLET - AIR INFL

T20 TC250 SCRAMBLER 1969 USA (E03)

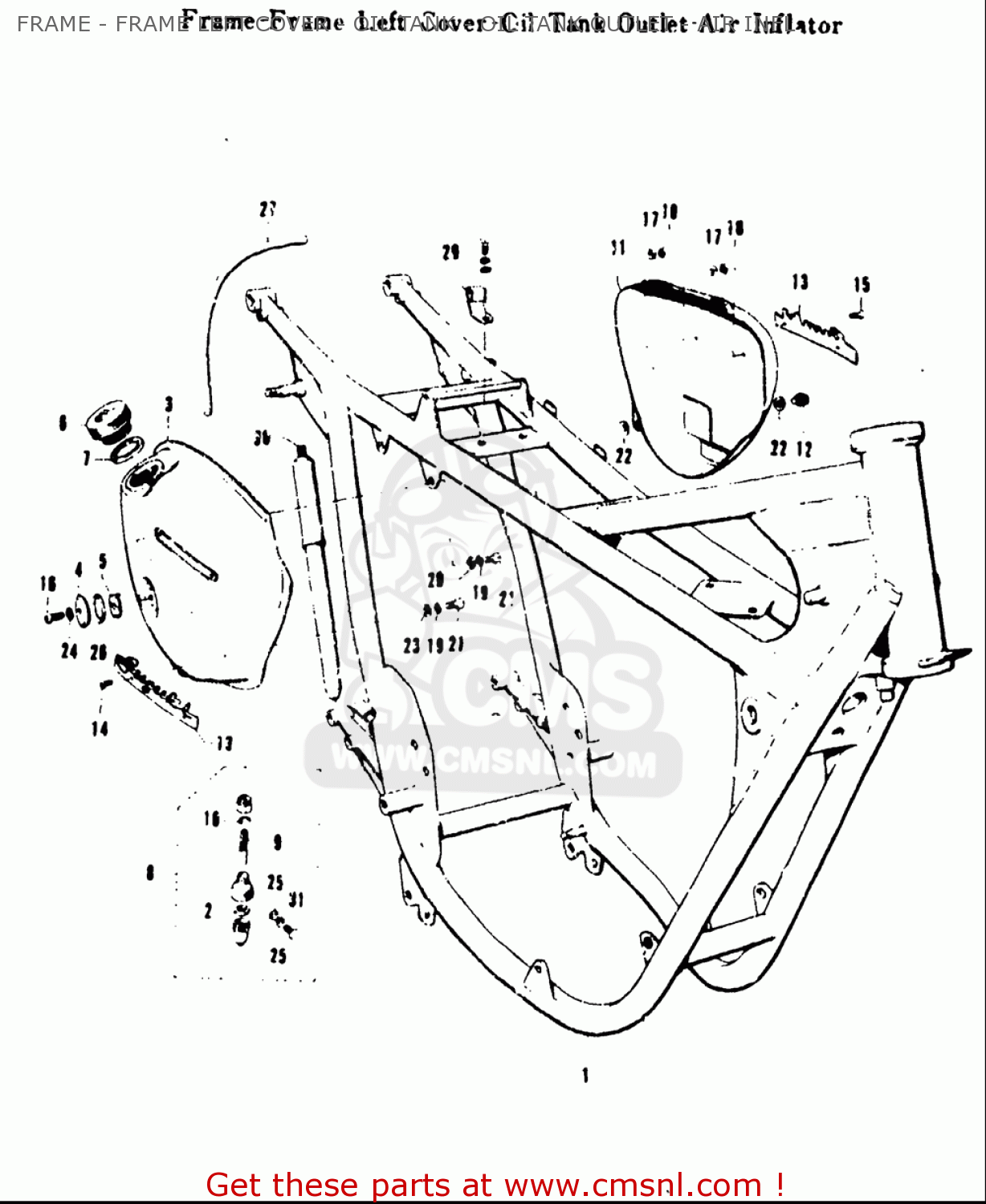

Frame - frame left cover - oil tank - oil tank outlet - air infl diagram T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

4464011843
ref: 5

LENS SET,OIL INSPECTION

€ 8.50

4465111040
ref: 6

CAP,OIL TANK

€ 14.00

4466111000
ref: 7

GASKET,OIL TANK FILLER CAP (NAS)

€ 4.00

4472011030
ref: 9

UNIT,OIL FILTER

€ 5.50

4473311030
ref: 10

GASKET,OIL OUTLET JOINT (NAS)

€ 2.00

0211203047
ref: 14

SCREW

€ 2.00

0831000033
ref: 17

NUT

€ 2.00

0916203001
ref: 18

WASHER,LOCK

€ 1.50

0832101067
ref: 19

WASHER,LOCK

€ 2.50

0832201067
ref: 20

WASHER

€ 2.00

0910006067
ref: 21

BOLT(6X14)

€ 2.50

0915206001
ref: 22

NUT

€ 1.50

0916805001
ref: 24

GASKET(5X9.5X1) (NAS)

€ 2.00

0916806004
ref: 25

GASKET(6.2X11X1).2 (NAS)

€ 1.50

0928023001
ref: 26

O RING(D:3,ID:23)

€ 2.00

093515080300B
ref: 27

HOSE(5X8X2000)

€ 10.00

0936006003
ref: 28

UNION BOLT

€ 5.00
