FUEL COCK

T20 TC250 SCRAMBLER 1969 USA (E03)

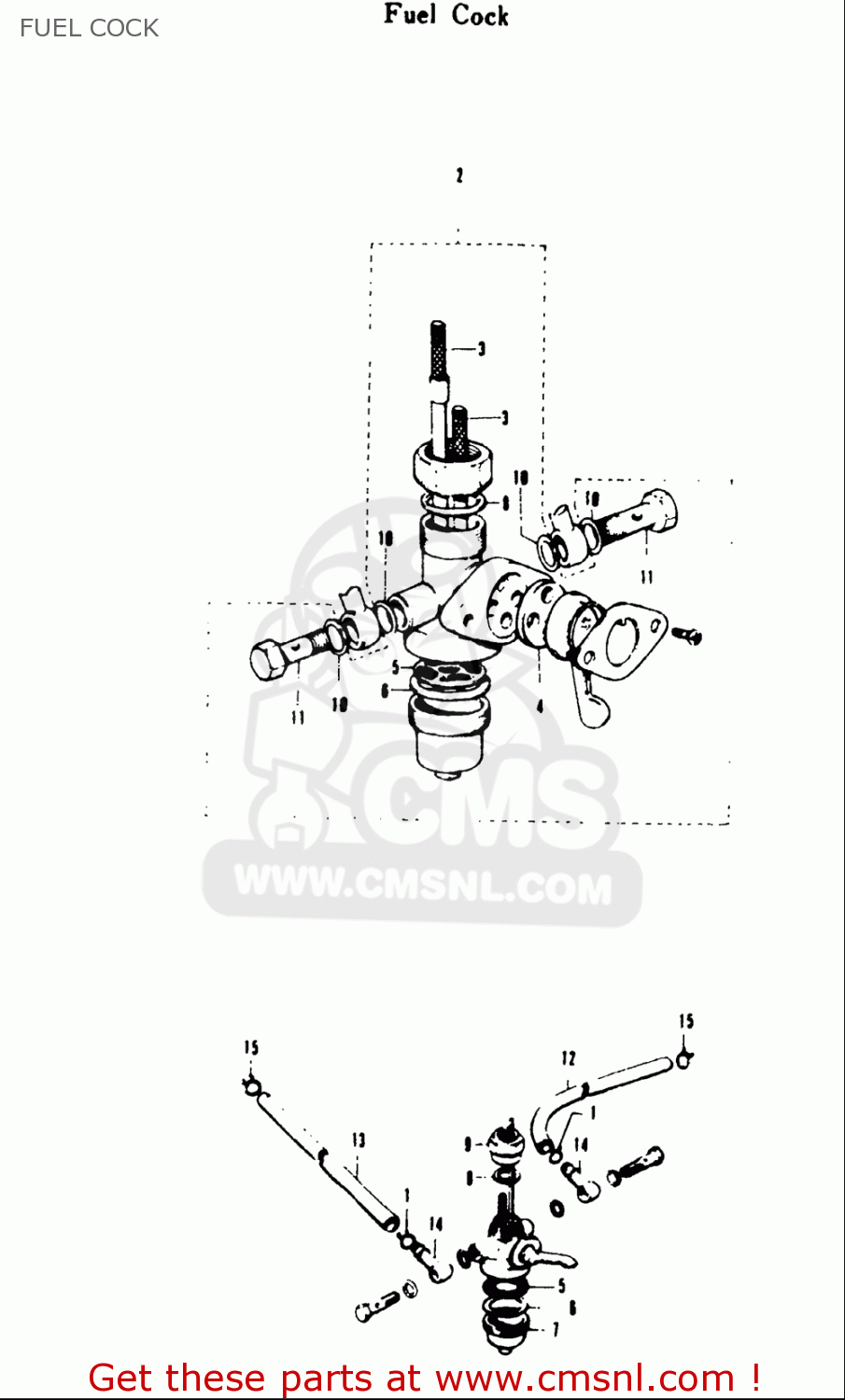

Fuel cock diagram T20 TC250 SCRAMBLER 1969 USA (E03)

FUEL COCK T20 TC250 SCRAMBLER 1969 USA (E03)

FUEL COCK T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

3

4430028817
ref: 3

FILTER SET,FUEL COCK

€ 26.50

4

4434105110
ref: 4

GASKET,LEVER (NAS)

€ 7.00

8-1

4434810050
ref: 8-1

GASKET,FUEL COCK (NAS)

€ 6.00
