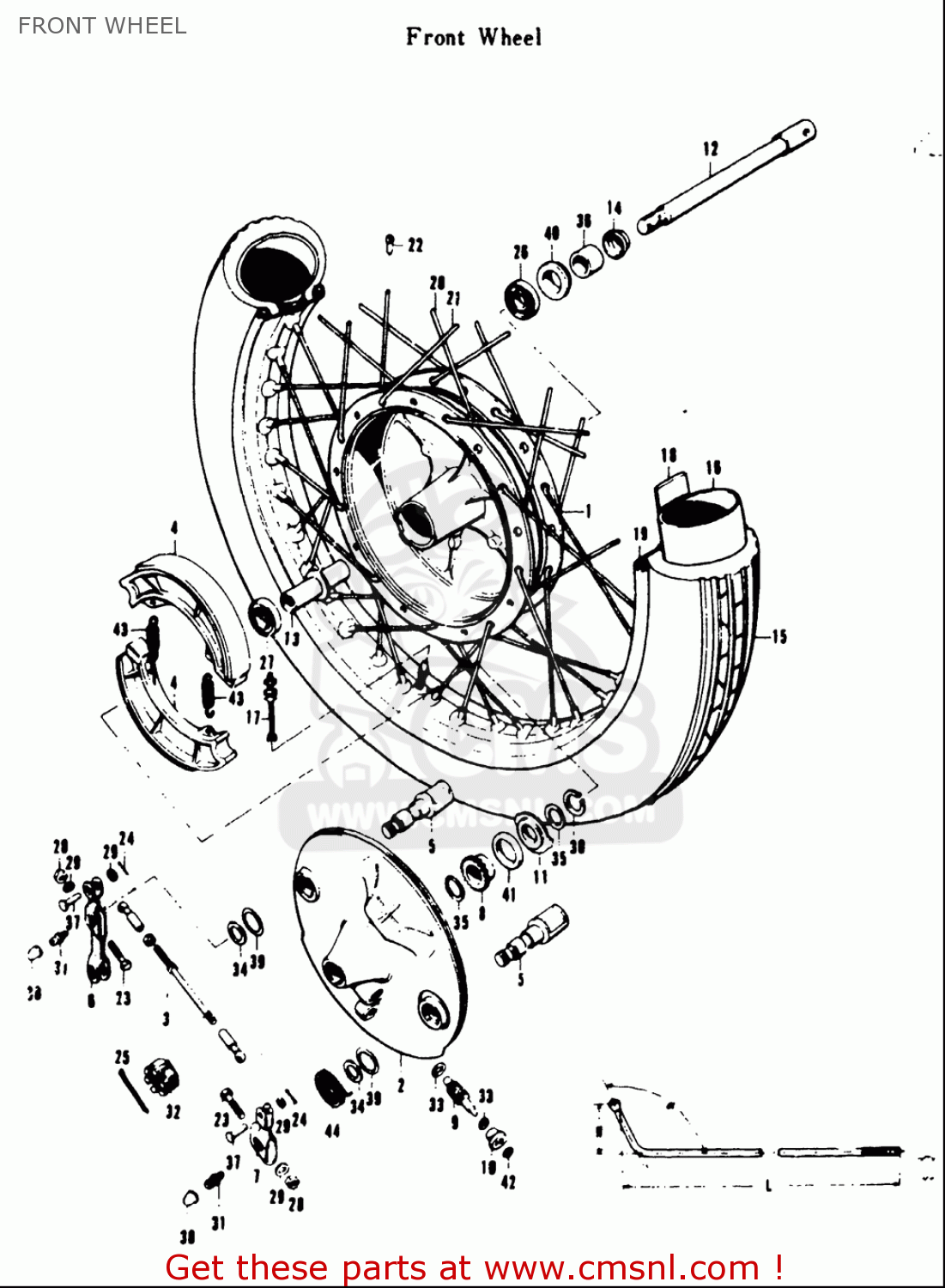

FRONT WHEEL

ref

part #

description

quantity

9

5462111000
ref: 9

PINION,SPEEDOMETER

€ 11.50

10

5463249200
ref: 10

BUSHING,SPEEDOMETER PINION

€ 6.50

11

5466011031
ref: 11

DRIVER,SPEEDOMETER GEAR

€ 31.00

13

5473011000
ref: 13

SPACER,FRONT HUB BEARING

€ 36.00

15

5510012B00
ref: 15

TIRE,FR(2.75-18)

€ 201.00

18

5526111010
ref: 18

PROTECTOR,INNER TUBE

€ 3.50

23

0910006150
ref: 23

BOLT(6X31)

€ 1.50

24

0411112108
ref: 24

PIN 12X10

€ 2.00

26

0811360020
ref: 26

BEARING

€ 14.00

27

0814362027
ref: 27

BEARING

€ 12.50

28

0831000067
ref: 28

NUT

€ 2.50

29

0832201067
ref: 29

WASHER

€ 2.00

30

0833131226
ref: 30

CIRCLIP

€ 2.00

31

0835111009
ref: 31

NIPPLE

€ 32.00

32

0914114001
ref: 32

NUT

€ 4.50

33

0916005001A05
ref: 33

WASHER(5.1X9X0.4)

€ 2.00

34

0916015048
ref: 34

WASHER(15.5X24X1.6)

€ 2.50

35

0916022001
ref: 35

WASHER(22.5X27X1)

€ 2.00

36

0918015001
ref: 36

SPACER

€ 6.00

39

0928015003
ref: 39

O RING(D:2.4,ID:14.8)

€ 2.00

41

0928526003
ref: 41

SEAL,OIL(26X38X4)

€ 22.00

42

0928906001
ref: 42

SEAL,OIL(6X10X3)

€ 4.00

44

0944830001
ref: 44

SPRING

€ 16.00
