TAIL/BRAKE LAMP - FUEL TANK

T20 TC250 SCRAMBLER 1969 USA (E03)

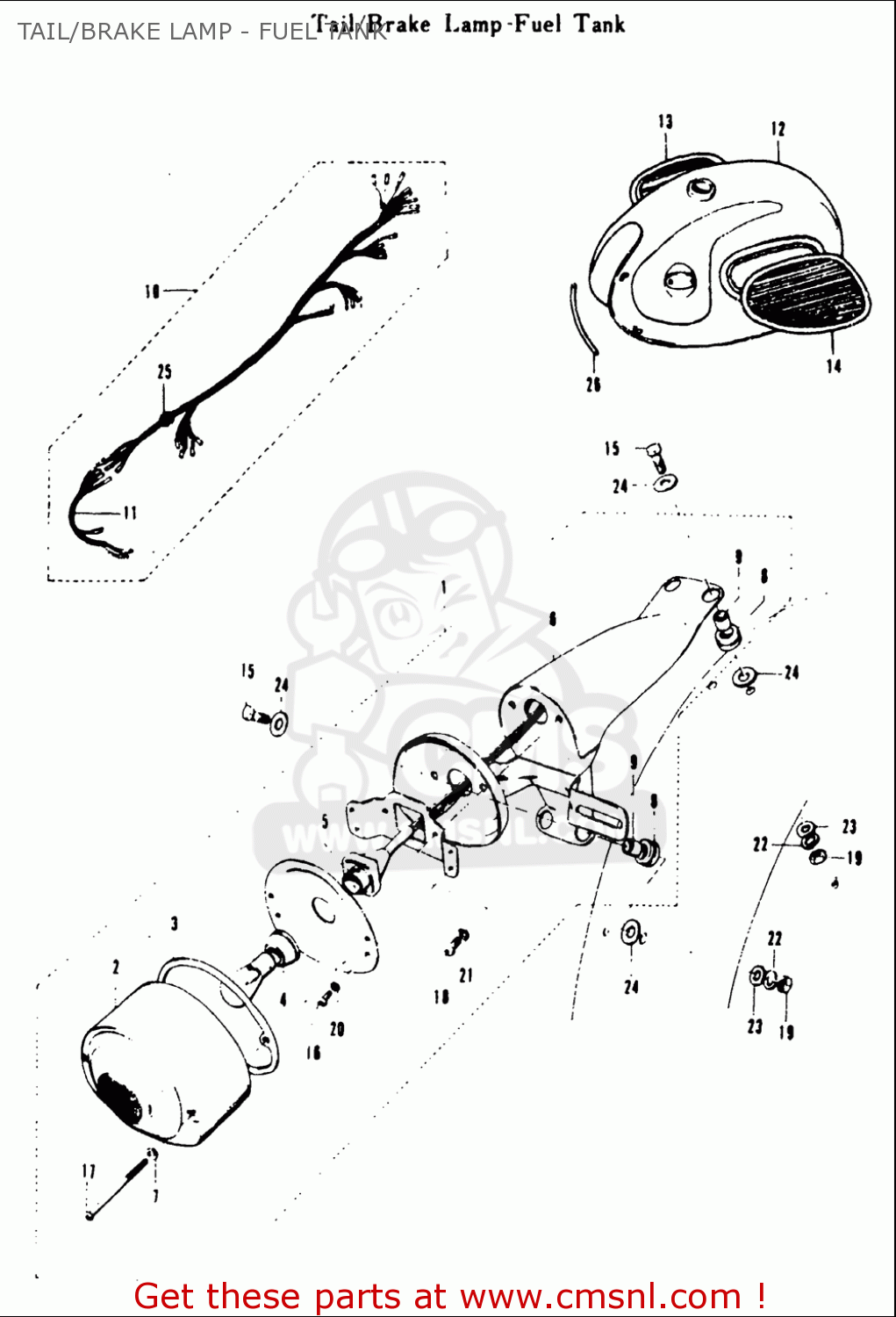

Tail/brake lamp - fuel tank diagram T20 TC250 SCRAMBLER 1969 USA (E03)

TAIL/BRAKE LAMP - FUEL TANK T20 TC250 SCRAMBLER 1969 USA (E03)

TAIL/BRAKE LAMP - FUEL TANK T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

2

3571206112
ref: 2

LENS,RR COMBINATION LAMP

€ 37.50

8

3576515010
ref: 8

CUSHION

€ 9.00

9

3576637110
ref: 9

SPACER

€ 11.50

19

0831000067
ref: 19

NUT

€ 2.50

20

0832101043
ref: 20

WASHER,LOCK

€ 2.00

21

0832101057
ref: 21

WASHER,LOCK

€ 2.00

22

0832101067
ref: 22

WASHER,LOCK

€ 2.50

23

0832201067
ref: 23

WASHER

€ 2.00

24

0916006066
ref: 24

WASHER(6.5X20X1.6)

€ 2.00
