FRONT FORK - FRONT FENDER - FRONT WHEEL - HANDLEBAR - REAR WHEEL

T20 TC250 SCRAMBLER 1969 USA (E03)

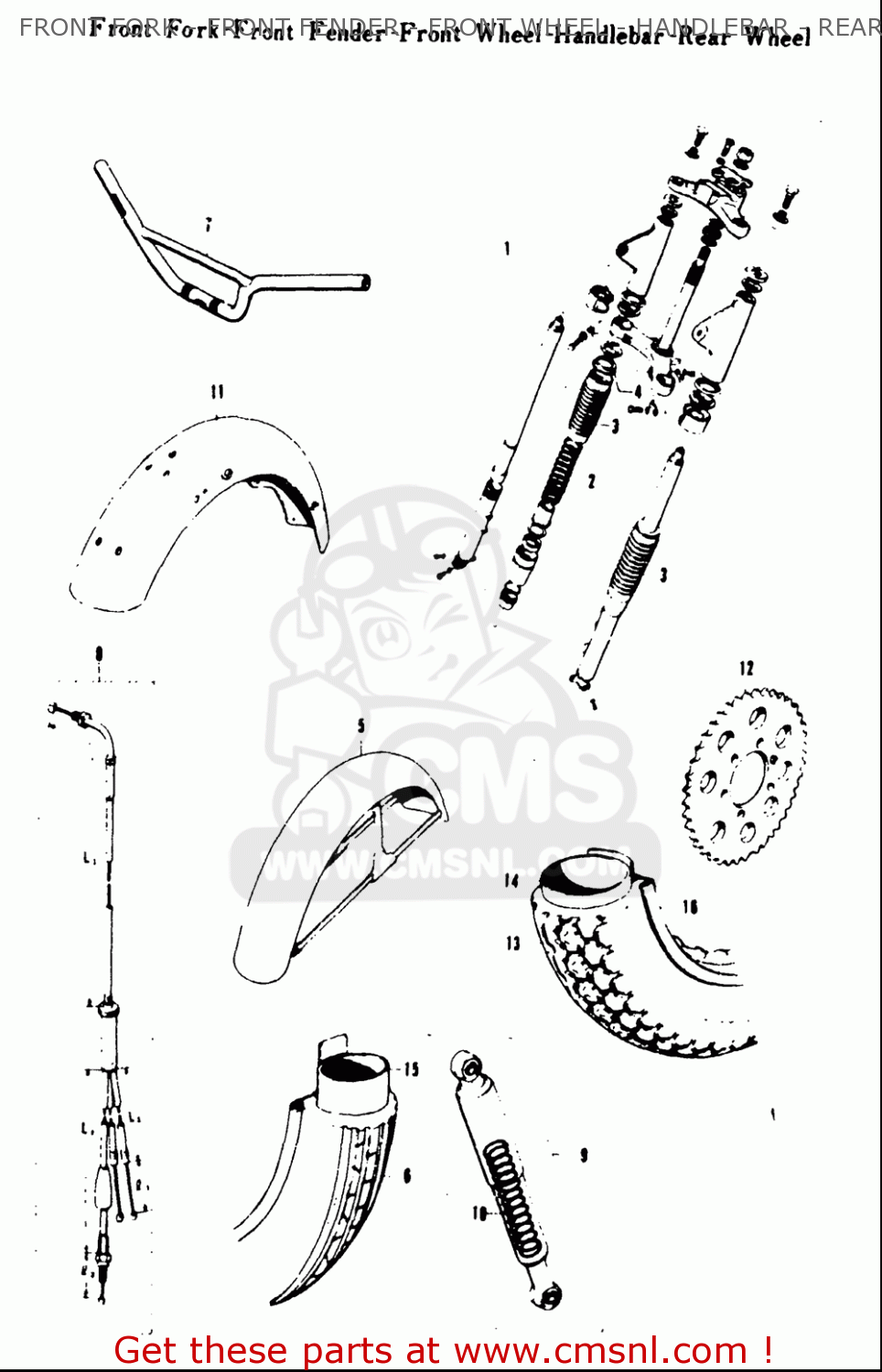

Front fork - front fender - front wheel - handlebar - rear wheel diagram T20 TC250 SCRAMBLER 1969 USA (E03)

FRONT FORK - FRONT FENDER - FRONT WHEEL - HANDLEBAR - REAR WHEEL T20 TC250 SCRAMBLER 1969 USA (E03)

FRONT FORK - FRONT FENDER - FRONT WHEEL - HANDLEBAR - REAR WHEEL T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

3

5157111010
ref: 3

BOOT,SPRING COVER

€ 36.50

16

6531111220
ref: 16

RIM,RR WHEEL

€ 114.50

17

0211205127
ref: 17

SCREW

€ 2.50
