FRONT FORK

T20 TC250 SCRAMBLER 1969 USA (E03)

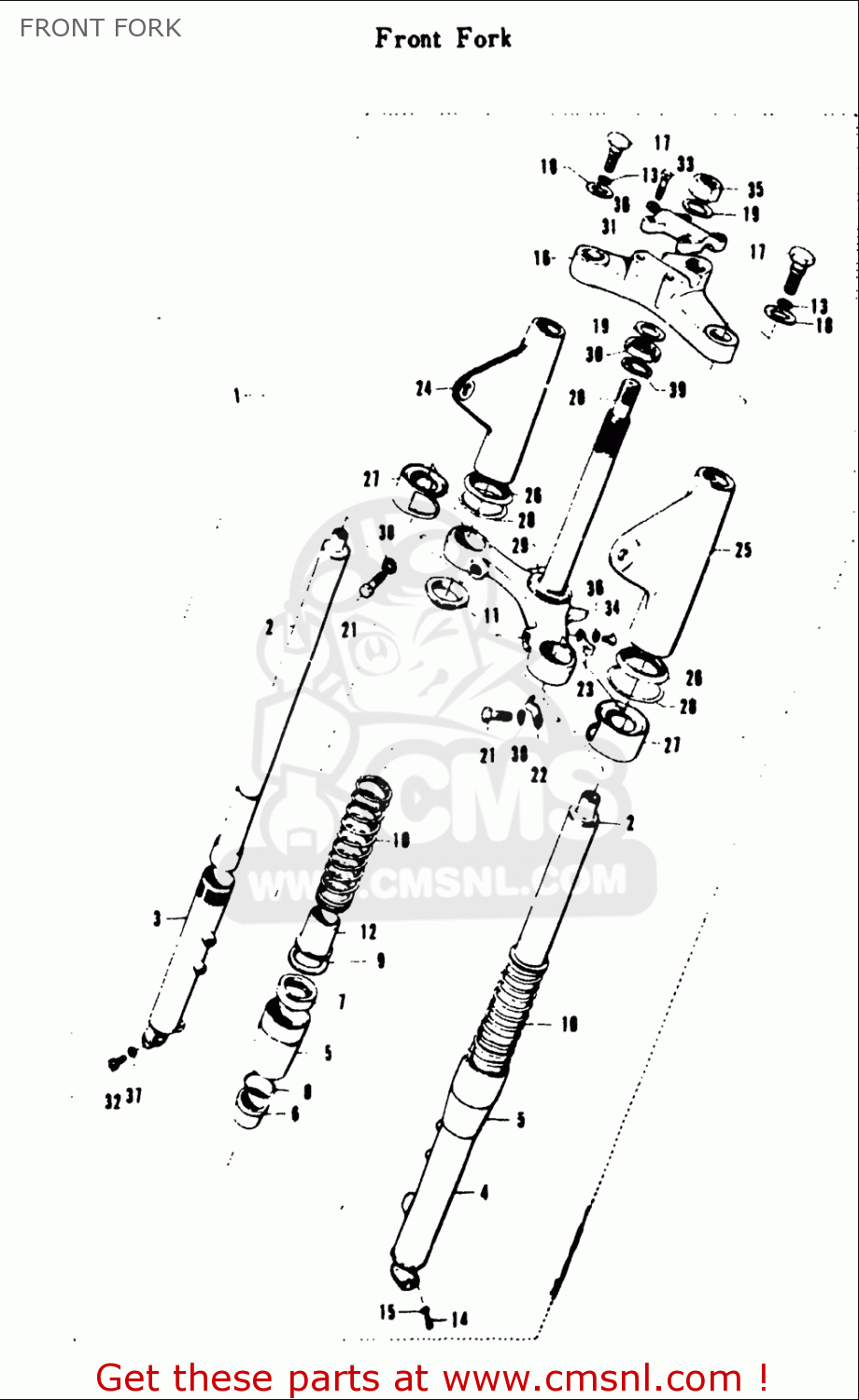

Front fork diagram T20 TC250 SCRAMBLER 1969 USA (E03)

FRONT FORK T20 TC250 SCRAMBLER 1969 USA (E03)

FRONT FORK T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

7

5115316511
ref: 7

SEAL,OIL

€ 10.50

9

5115811010
ref: 9

WASHER

€ 3.00

14

5118203621
ref: 14

OIL DRAIN PLUG

€ 3.50

15

5118303010
ref: 15

GASKET,DRAIN,PLUG (NAS)

€ 3.00

17

5135111011
ref: 17

CAP,FORK INNER TUBE

€ 5.50

18

5135411010
ref: 18

WASHER

€ 5.50

22

5145208010
ref: 22

CLIP,SPEEDOMETER CABLE

€ 3.00

23

5145303010
ref: 23

CLIP,BRAKE CABLE

€ 5.00

26

5155111010
ref: 26

SEAT,HEADLAMP BRACKET

€ 0.00

33

0120406257
ref: 33

BOLT

€ 1.50

35

0831000183
ref: 35

NUT

€ 2.00

36

0832101067
ref: 36

WASHER,LOCK

€ 2.50

37

0832101087
ref: 37

WASHER,LOCK

€ 2.00

38

0832101107
ref: 38

WASHER,LOCK

€ 2.00

39

0916626001
ref: 39

WASHER

€ 2.00
