REAR SWINGING ARM - REAR SHOCK ABSORBER

T20 TC250 SCRAMBLER 1969 USA (E03)

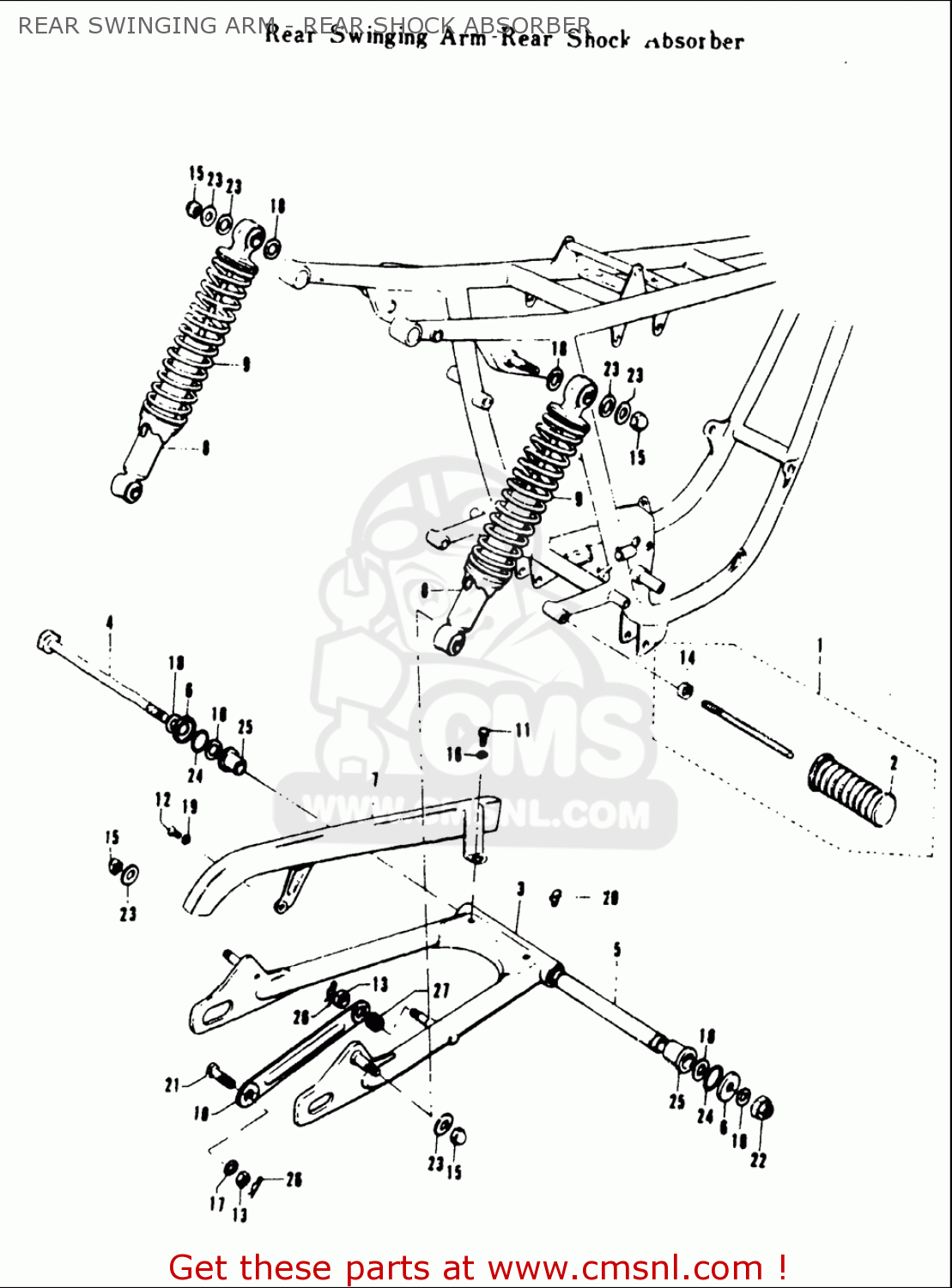

Rear swinging arm - rear shock absorber diagram T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

4360010809
ref: 1

FOOTREST SET,PILLION

€ 153.50

4360010809
ref: 2

FOOTREST SET,PILLION

€ 153.50

6126209200
ref: 6

COVER,SWGARM BUSH DUST SEAL

€ 2.50

0831000107
ref: 13

NUT

€ 2.50

0831000107
ref: 14

NUT

€ 2.50

0831310107
ref: 15

NUT

€ 2.50

0832101067
ref: 16

WASHER,LOCK

€ 2.50

0832101107
ref: 17

WASHER,LOCK

€ 2.00

0832201127
ref: 18

WASHER

€ 2.00

0832331058
ref: 19

TOOTHED WASHER

€ 1.50

0835131008
ref: 20

NIPPLE,GREASE

€ 10.50

0910110003
ref: 21

BOLT(10X31)

€ 4.00

0915912102
ref: 22

NUT

€ 5.00

0916010127
ref: 23

WASHER (10.5X24X2.3)

€ 2.00

0928024001
ref: 24

O RING(D:2,ID:24.5)

€ 2.00

0938510005
ref: 26

CLIP

€ 1.50

0944018002
ref: 27

SPRING

€ 1.50
