SKID PLATE - MUFFLER - MUFFLER COVER

T20 TC250 SCRAMBLER 1969 USA (E03)

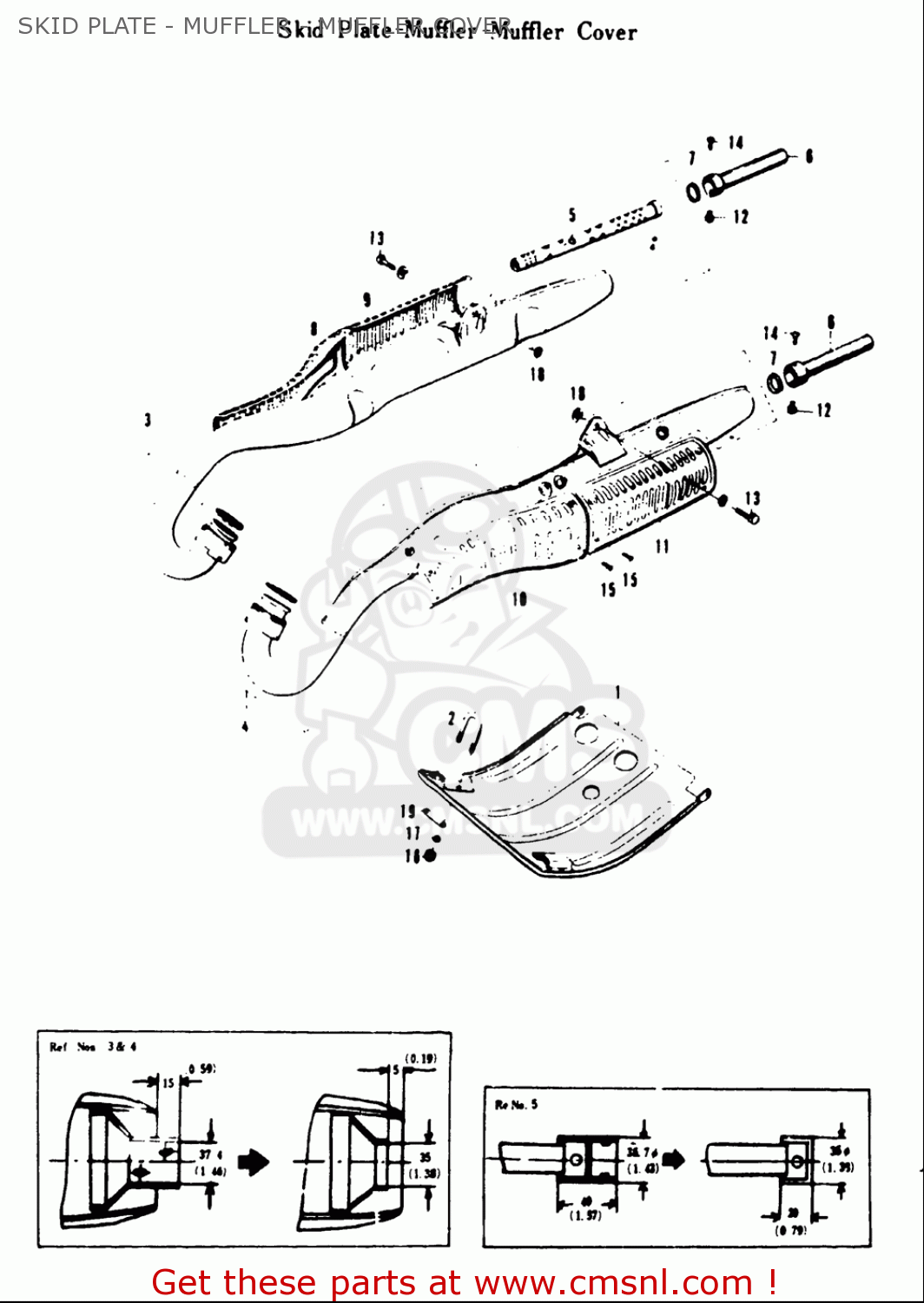

Skid plate - muffler - muffler cover diagram T20 TC250 SCRAMBLER 1969 USA (E03)

SKID PLATE - MUFFLER - MUFFLER COVER T20 TC250 SCRAMBLER 1969 USA (E03)

SKID PLATE - MUFFLER - MUFFLER COVER T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

13

0120410167
ref: 13

BOLT

€ 3.00

14

0211206087
ref: 14

SCREW

€ 2.00

15

0211206087
ref: 15

SCREW

€ 2.00

16

0831310067
ref: 16

NUT

€ 2.00

17

0832101067
ref: 17

WASHER,LOCK

€ 2.50

18

0832201107
ref: 18

WASHER

€ 2.50

19

0916906001
ref: 19

WASHER

€ 0.00
