CYLINDER

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

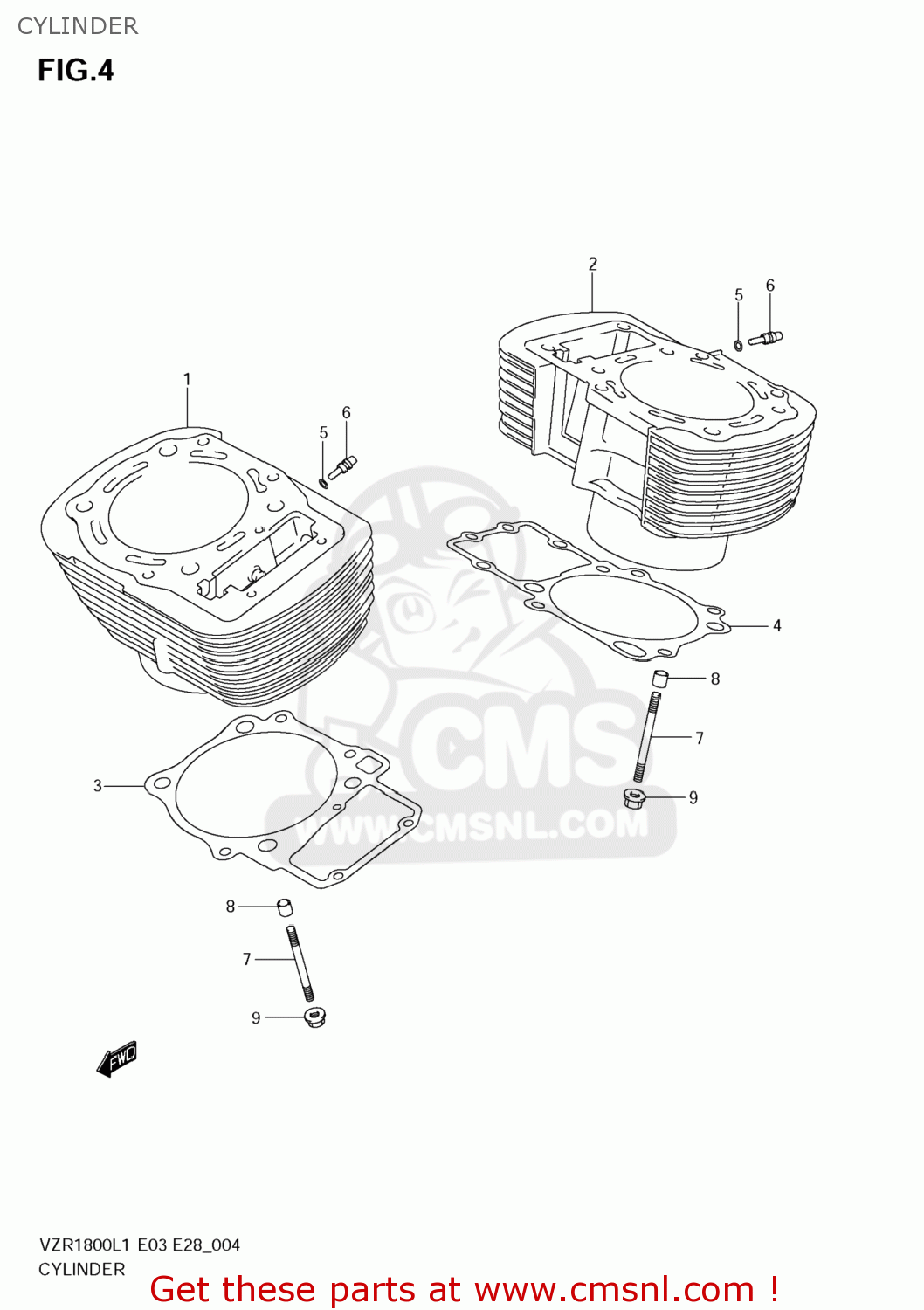

Cylinder diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

CYLINDER VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

CYLINDER VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

1121148G000F0
ref: 1

CYLINDER,FR

€ 791.50

2

1122148G000F0
ref: 2

CYLINDER,RR

€ 791.50

3

1124148G00
ref: 3

GASKET,CYLINDE (NAS)

€ 16.00

4

1124248G00
ref: 4

GASKET,CYLINDER RR (NAS)

€ 14.00

5

0928004004
ref: 5

O RING(D:1.2,ID:4)

€ 2.00

6

0949380005
ref: 6

JET(8)

€ 12.00

7

014210665A
ref: 7

BOLT,STUD

€ 2.00

8

0421113189
ref: 8

PIN

€ 2.50

9

083193106A
ref: 9

NUT

€ 2.50
