FRONT WHEEL (VZR1800 L1 E33)

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

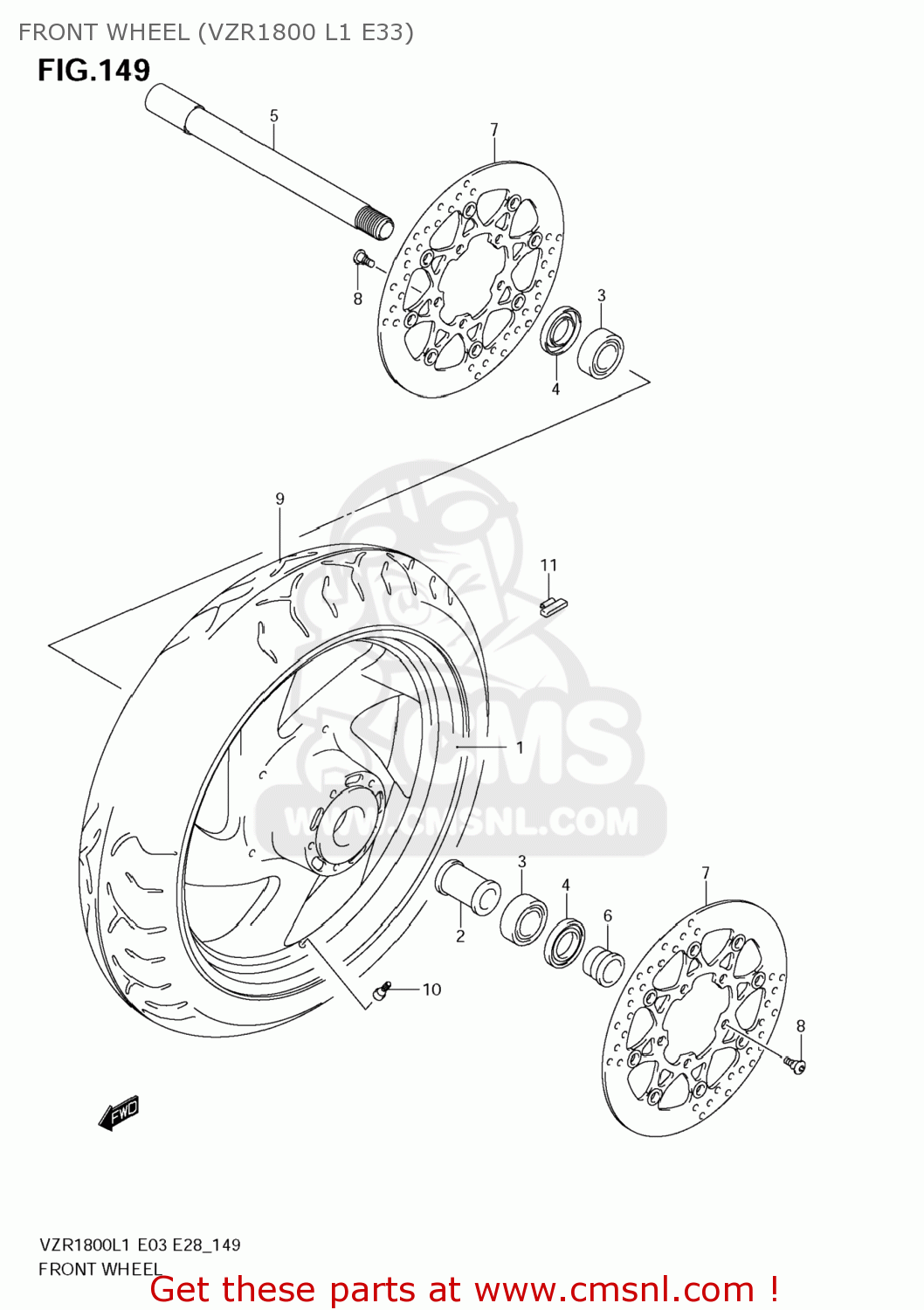

Front wheel (vzr1800 l1 e33) diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

FRONT WHEEL (VZR1800 L1 E33) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

FRONT WHEEL (VZR1800 L1 E33) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

5411148G1012Z
ref: 1

WHEEL,FR(18M/CXMT3.50)

€ 1,204.50

1

5411148G1012Z
ref: 1

WHEEL,FR(18M/CXMT3.50)

€ 1,204.50

2

5473148G00
ref: 2

SPACER,FR WHEEL BEARING

€ 27.00

3

0926225061
ref: 3

BEARING(25X52X15)

€ 27.50

4

0928532004
ref: 4

SEAL,OIL(32X52X7)

€ 8.00

5

5471148G00
ref: 5

AXLE,FR

€ 94.50

6

5474148G00
ref: 6

SPACER,FR AXLE,L

€ 20.50

7

5921041G10
ref: 7

DISC,FR BRAKE

€ 303.50

8

0910608160
ref: 8

BOLT(8X21)

€ 3.50

9

5511048G00
ref: 9
55110-48G01

TIRE,FR,130/70

€ 178.00

9

5511048G00
ref: 9
55110-48G01

TIRE,FR,130/70

€ 178.00

10

4313024A00
ref: 10

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

11-1

5541122H00
ref: 11-1

BALANCER,WHEEL(10G)

€ 4.50

11-2

5541222H00
ref: 11-2

BALANCER,WHEEL(20G)

€ 5.50

11-3

5541322H00
ref: 11-3

BALANCER,WHEEL(30G)

€ 6.00
