REAR SWINGING ARM

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

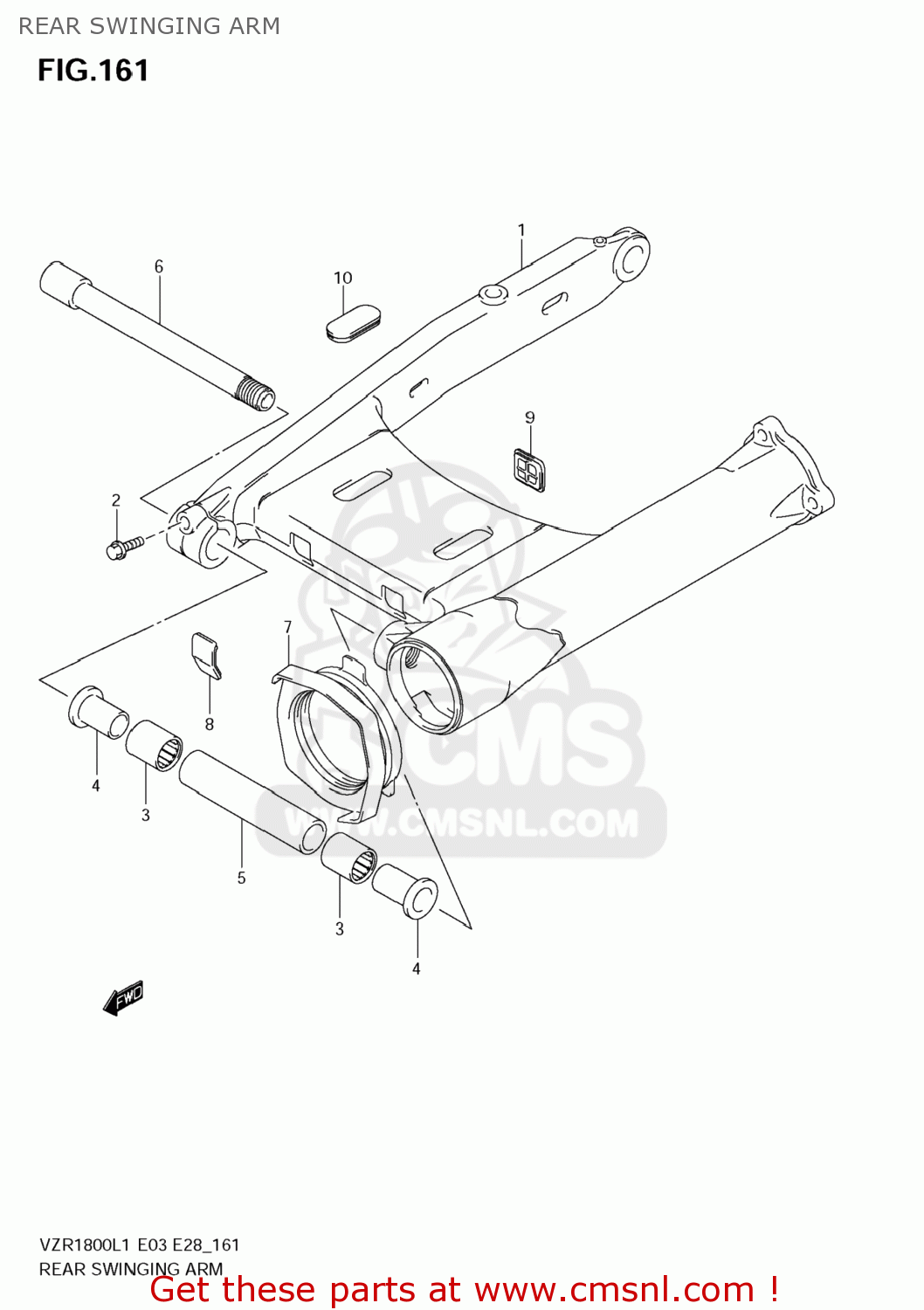

Rear swinging arm diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

6111148G20019
ref: 1

SWINGINGARM,RE

€ 743.00

0910308071
ref: 2

BOLT(8X36)

€ 4.00

0926325059
ref: 3

BEARING(25X33X35)

€ 35.00

6125131E00
ref: 4

SPACER,RR SWGARM PIVOT BERRING

€ 16.00

6128048G01
ref: 5

SPACER,RR SWGARM PIVOT CTR

€ 20.50

6121148G00
ref: 6

SHAFT,RR SWINGINGARM PIVOT

€ 59.50

6137248G10
ref: 7

BOOT,PROPELLER SHAFT

€ 14.00

6116748G00
ref: 8

CAP,RR SWINGING ARM JOINT FR

€ 3.50

6116848G00
ref: 9

CAP,RR SWINGING ARM JOINT RR

€ 13.50

6116948G00
ref: 10

CAP,RR SWINGING ARM JOINT UPR

€ 3.50
