REAR COMBINATION LAMP (VZR1800 L1 E33)

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

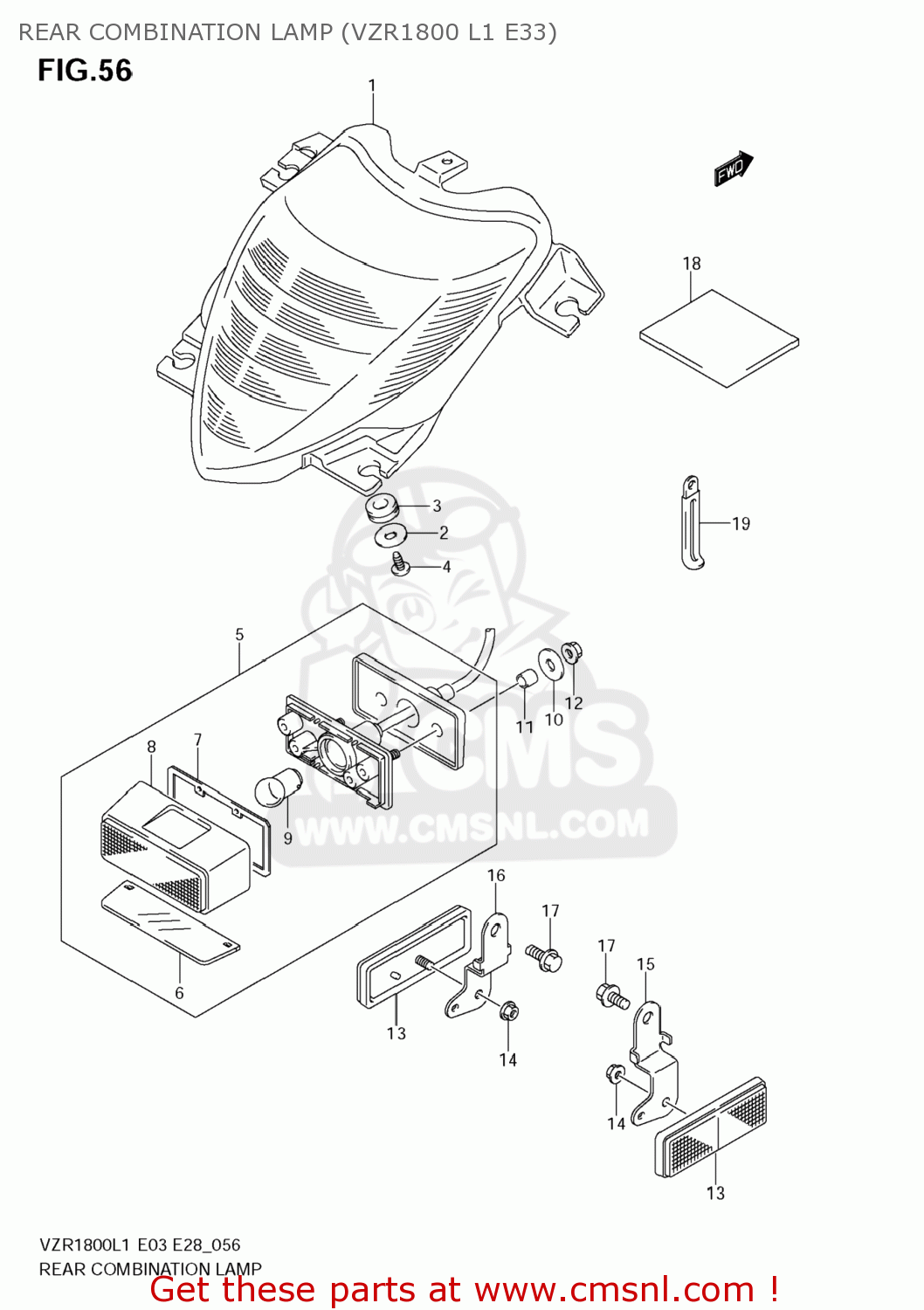

Rear combination lamp (vzr1800 l1 e33) diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

REAR COMBINATION LAMP (VZR1800 L1 E33) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

REAR COMBINATION LAMP (VZR1800 L1 E33) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

3571048G50
ref: 1

LAMP ASSY,RR COMBINATION

€ 212.00

2

0916005501
ref: 2

WASHER(5.5X20X1.2)

€ 2.00

3

0932010054
ref: 3

CUSHION

€ 2.00

4

035410512A
ref: 4

SCREW

€ 2.00

5

3591041G00
ref: 5
35910-41G01

LAMP ASSY,LICE

€ 51.50

6

3591241G00
ref: 6

LENS LICENCE

€ 19.50

7

3591341G00
ref: 7

GASKET (NAS)

€ 19.00

8

3591741G00
ref: 8

COVER,LICENSE LAMP

€ 27.00

9

0947112140
ref: 9
09471-12058

BULB(12V5W,BF150-40160A)

€ 4.00

10

0916006077
ref: 10

WASHER(6.5X20X1.2)

€ 2.00

11

0918006261
ref: 11

SPACER(6.5X9X8)

€ 2.00

12

083161006A
ref: 12

NUT

€ 2.50

13

3597007F01
ref: 13

REFLECTOR ASSY,RR

€ 20.50

14

083161005A
ref: 14

NUT

€ 2.50

15

3597548G00
ref: 15

BRACKET,RR SIDE RR,R

€ 3.00

16

3597648G00
ref: 16

BRACKET,RR SIDE RR,L

€ 4.00

17

021620612A
ref: 17

SCREW

€ 2.50

18

9221333G00
ref: 18

CUSHION,HELMET BOX

€ 4.50

19-1

0940406429
ref: 19-1

CLAMP(L:45)

€ 2.50

19-2

0940410415
ref: 19-2

CLAMP(L:45)

€ 1.50
