REAR FENDER EXTENSION

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

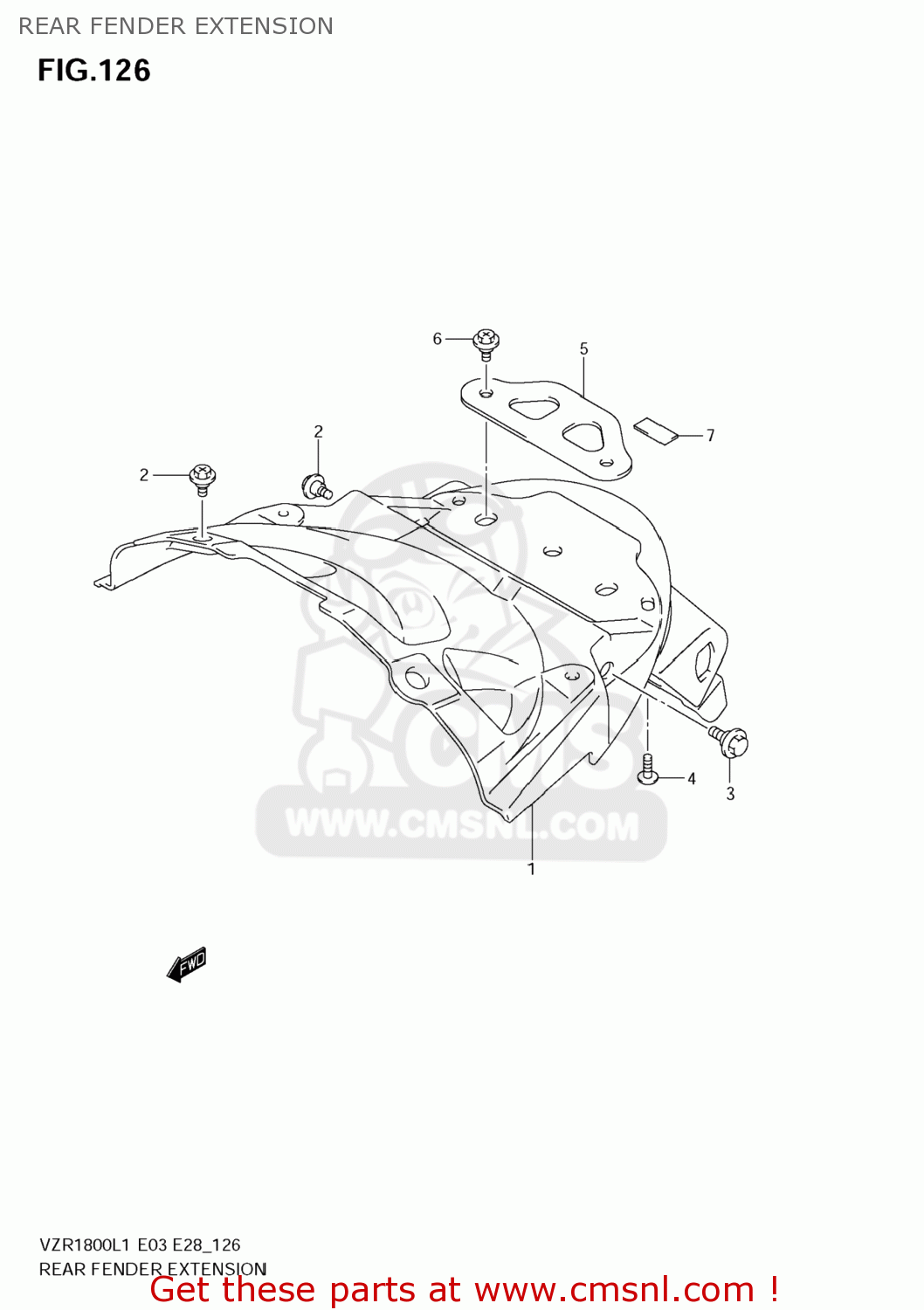

Rear fender extension diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

REAR FENDER EXTENSION VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

REAR FENDER EXTENSION VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

6331148G01
ref: 1

EXTENSION,RR FENDER

€ 99.00

2

6316143E10
ref: 2

BOLT

€ 2.50

3

0911106242
ref: 3

BOLT(6X16.5)

€ 2.50

4

021420516A
ref: 4

SCREW

€ 2.00

5

6312148G00
ref: 5

PLATE,RR FENDER EXTENSION

€ 6.50

6

0910306307
ref: 6

BOLT(6X10)

€ 2.50

7

6311348G00
ref: 7

CUSHION,RR FENDER EXT PLATE

€ 7.50
