HEADLAMP COVER (VZR1800Z L1 E3)

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

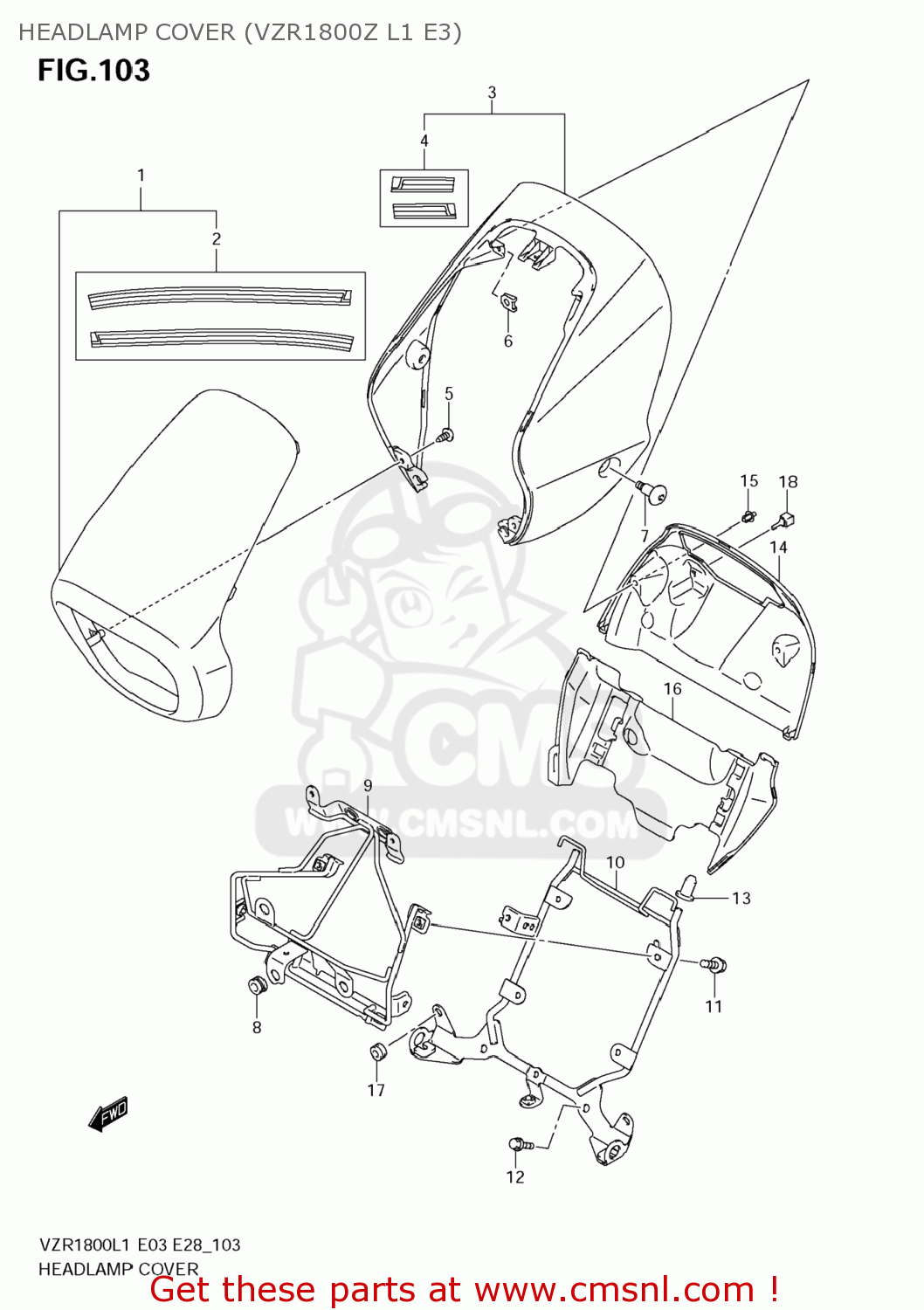

Headlamp cover (vzr1800z l1 e3) diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

HEADLAMP COVER (VZR1800Z L1 E3) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

HEADLAMP COVER (VZR1800Z L1 E3) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

5181048GC0JBA
ref: 1

COVER,HEADLAMP

€ 886.50

2

6872048G70JBA
ref: 2

TAPE SET,HEADLAMP HOUSING

€ 34.50

3

5182048GC0JBA
ref: 3

COVER,HEADLAMP LWR

€ 1,192.50

4

6872048G80JBA
ref: 4

TAPE SET,HEADLAMP HOUSING LWR

€ 15.50

5

035410510A
ref: 5

SCREW

€ 1.50

6

0914805045
ref: 6

NUT

€ 2.00

7

0913906191
ref: 7

SCREW(6X22)

€ 4.50

8

0932009039
ref: 8

CUSHION

€ 6.00

9

5186048GB0
ref: 9

BRACE,HEADLAMP HOUSING

€ 116.50

10

5185048GB0
ref: 10

BRACE COMP,HEA

€ 93.50

11

015500612B
ref: 11

BOLT

€ 2.50

12

015500816A
ref: 12

BOLT

€ 2.50

13

5183121D00
ref: 13

CUSHION,HEADLAMP HOUSING BRACE

€ 3.00

14

5183148GB0
ref: 14

COVER,HEADLAMP UPR

€ 19.00

15

09409063145PK
ref: 15

CLIP(BLACK)

€ 3.50

16

5184148GB0
ref: 16

COVER,HEADLAMP HSG BRACKET

€ 17.50

17

0932006016
ref: 17

CUSHION

€ 4.50

18

5183248GB0
ref: 18

CUSHION,HEADLAMP COVER UPR

€ 3.50
