STEERING STEM

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

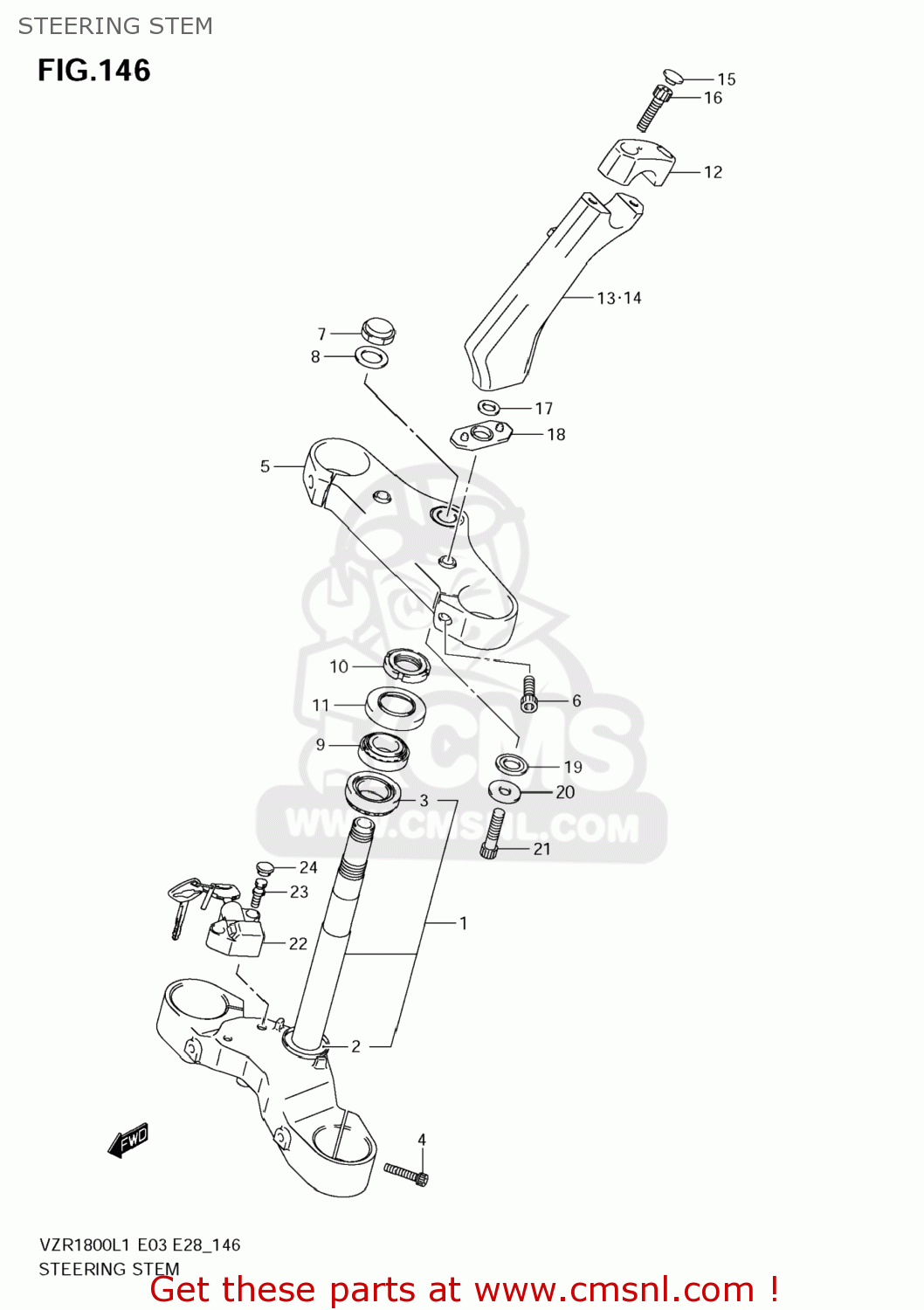

Steering stem diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

STEERING STEM VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

STEERING STEM VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

5141048G00
ref: 1

BRACKET,UNDER

€ 813.00

2

5164412C00
ref: 2

SEAL,STEERING LWR

€ 5.50

3

0926530020
ref: 3

BEARING(30X55X17)

€ 45.50

4

5132844G10
ref: 4

BOLT

€ 4.00

5

5131148G20
ref: 5

BRACKET,UPR

€ 477.50

6

5132144G10
ref: 6

BOLT

€ 6.50

7

5135324B00
ref: 7

NUT,CAP

€ 21.50

8

5135610D03
ref: 8

WASHER(22.5X35.9X1.6)

€ 3.00

9

0926525038
ref: 9

BEARING(25X47X15)

€ 49.00

10

5163131F00
ref: 10

NUT,STEERING STEM

€ 8.00

11

5164340502
ref: 11

DUST SEAL,STEERING UPR

€ 8.00

12

5621148G10
ref: 12

HOLDER,HANDLE

€ 44.00

13

5622448G20
ref: 13

HOLDER,HANDLE,R

€ 175.00

14

5622548G20
ref: 14

HOLDER,HANDLE,L

€ 175.00

15

0925006009
ref: 15

CAP(OD:14.5)

€ 3.50

16

5132844G10
ref: 16

BOLT

€ 4.00

17

5135448G00
ref: 17

WASHER

€ 4.50

18

5624548G00
ref: 18

RUBBER,HANDLE HOLDER

€ 4.00

19

5624539G20
ref: 19

RUBBER,HANDLE LWR

€ 5.50

20

5135548G00
ref: 20

WASHER

€ 7.00

21

5122648G00
ref: 21

BOLT

€ 9.50

22

5190048810
ref: 22

LOCK SET,STEERING

€ 99.50

23

5192548G00
ref: 23

SCREW,STEERING LOCK

€ 5.00

24

5192648G00
ref: 24

PLUG,STEERING LOCK

€ 3.50
