THROTTLE BODY (VZR1800Z L1 E3)

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

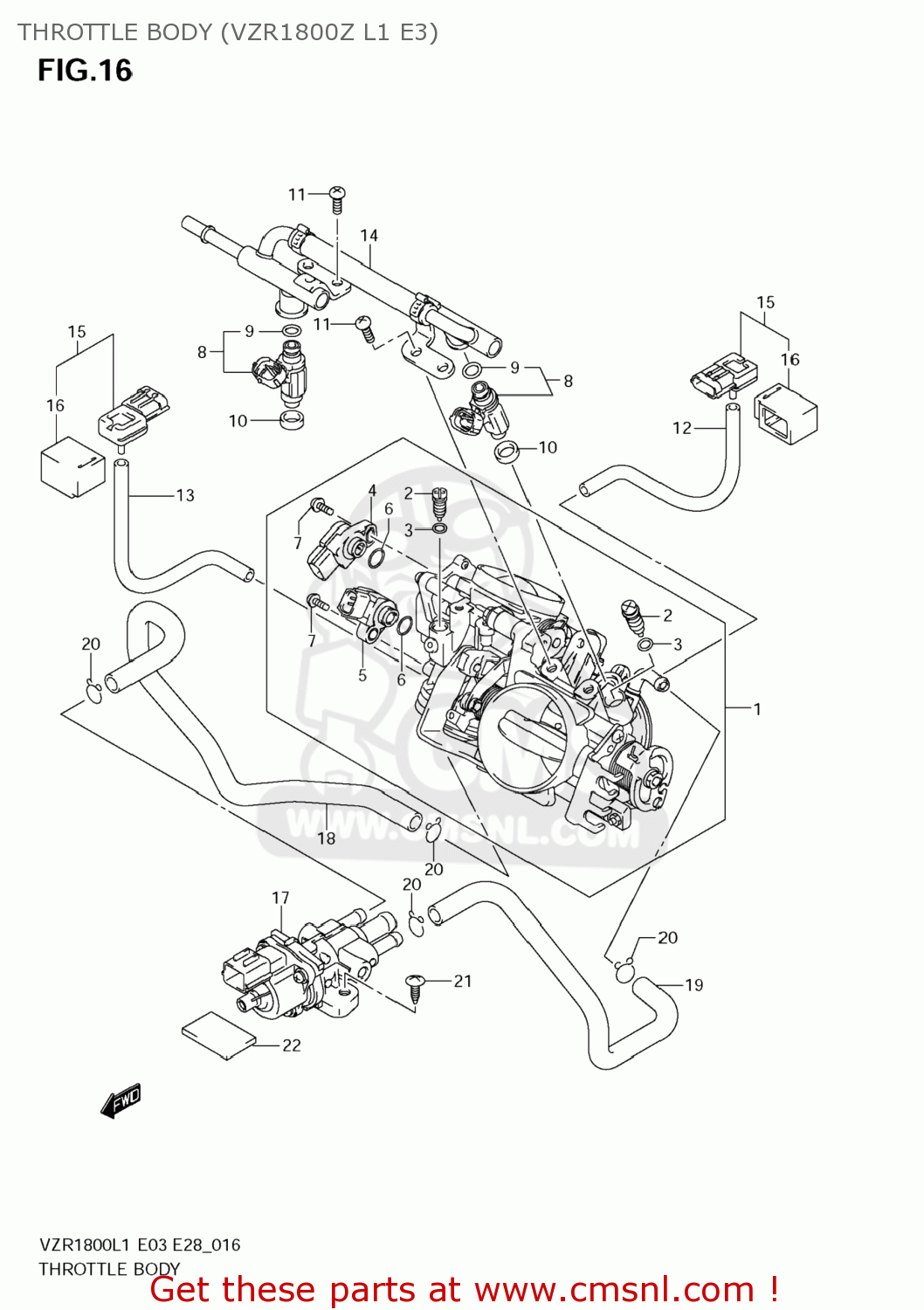

Throttle body (vzr1800z l1 e3) diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

THROTTLE BODY (VZR1800Z L1 E3) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

THROTTLE BODY (VZR1800Z L1 E3) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

1340548G20
ref: 1

BODY ASSY,THROTTLE

€ 1,110.00

2

1326948G00
ref: 2

ADJUSTER

€ 6.00

3

1352129FA0
ref: 3

O RING

€ 2.50

4

1358029G00
ref: 4

SENSOR ASSY

€ 101.50

5

1358048G00
ref: 5

SENSOR ASSY

€ 131.00

6

1357529G00
ref: 6

O RING

€ 3.00

7

1360502F00
ref: 7

SCREW

€ 3.00

8

1571048G00
ref: 8

INJECTOR ASSY

€ 210.50

9

1571758B00
ref: 9

O-RING

€ 7.00

10

1572229G00
ref: 10

SEAL

€ 9.50

11

1360206148
ref: 11

SCREW

€ 2.50

12

1368348G00
ref: 12

HOSE

€ 17.00

13

1368348G10
ref: 13

HOSE

€ 20.50

14

1573048G01
ref: 14

PIPE ASSY,DELIVERY

€ 190.50

15

1563029G10
ref: 15

SENSOR,AIR PRESSURE

€ 180.50

16

1562529G00
ref: 16

COVER

€ 7.50

17

1811748G00
ref: 17

VALVE,ISC

€ 260.50

18

1369748G00
ref: 18

HOSE,ISC VALVE,R

€ 10.50

19

1369848G00
ref: 19

HOSE,ISC VALVE,L

€ 9.00

20

0940113102
ref: 20

CLIP

€ 2.00

21

031110625A
ref: 21

SCREW

€ 2.00

22

4461213600
ref: 22

CUSHION,FUEL TANK NO.2

€ 3.00
