SIDE COVER (VZR1800 L1 E33)

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

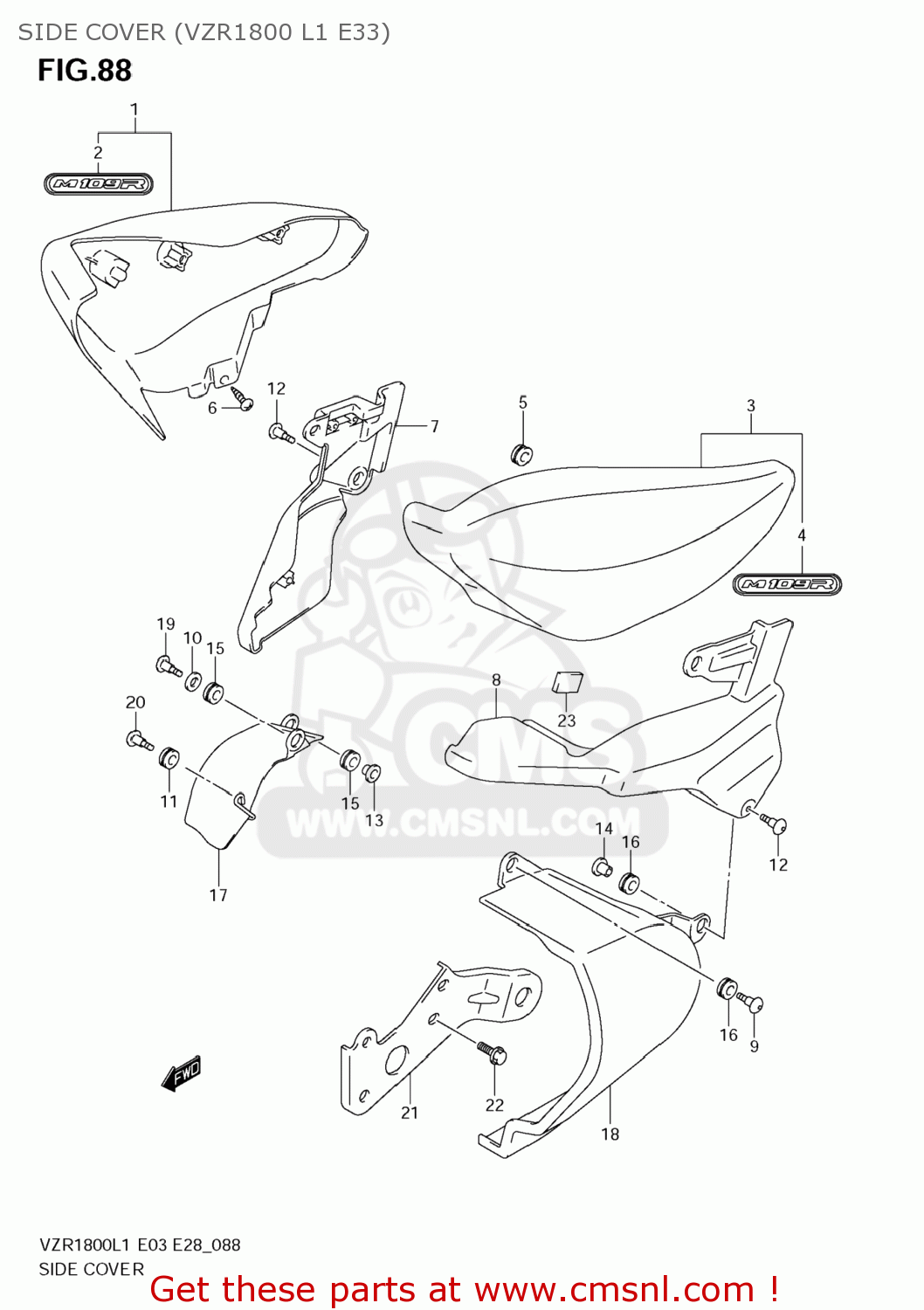

Side cover (vzr1800 l1 e33) diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

SIDE COVER (VZR1800 L1 E33) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

SIDE COVER (VZR1800 L1 E33) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1-1

4711048G00YKZ
ref: 1-1

COVER,SIDE,R(BLUE)

€ 151.50

1-2

4711048G00YVB
ref: 1-2

COVER,SIDE,R(BLACK)

€ 151.50

2

6813148G00
ref: 2

EMBLEM,M109R

€ 33.00

3-1

4721048G00YKZ
ref: 3-1

COVER,SIDE,L(BLUE)

€ 131.00

3-2

4721048G00YVB
ref: 3-2

COVER,SIDE,L(BLACK)

€ 151.50

4

6813148G00
ref: 4

EMBLEM,M109R

€ 33.00

5

0932008018
ref: 5

CUSHION

€ 4.00

6

035410516A
ref: 6

SCREW

€ 1.50

7

4712148G00
ref: 7

COVER,SIDE LWR,R

€ 15.50

8

4722148G00
ref: 8

COVER,SIDE LWR,L

€ 15.50

9

0913906126
ref: 9

SCREW(6X20)

€ 4.00

10

0916010123
ref: 10

WASHER(10.5X20X2.3)

€ 2.00

11

0932009501
ref: 11

CUSHION

€ 2.00

12

0913906029
ref: 12

SCREW(6X25)

€ 5.00

13

0918006319
ref: 13

SPACER(6.5X10X11.6)

€ 3.50

14

0916906075
ref: 14

WASHER

€ 2.00

15

0932008021
ref: 15

CUSHION

€ 4.00

16

0932008070
ref: 16

CUSHION

€ 8.50

17

4713048G00
ref: 17

COVER,LWR,R

€ 154.00

18

4723148GB0
ref: 18

COVER,LWR,L

€ 267.00

19

0913906126
ref: 19

SCREW(6X20)

€ 4.00

20

0913906126
ref: 20

SCREW(6X20)

€ 4.00

21

4725048G00
ref: 21

BRACKET,LWR COVER,L

€ 8.50

22

015500612A
ref: 22

BOLT

€ 2.50

23

4716119C00
ref: 23

CUSHION,FRAME COVER

€ 1.50
