STARTER CLUTCH

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

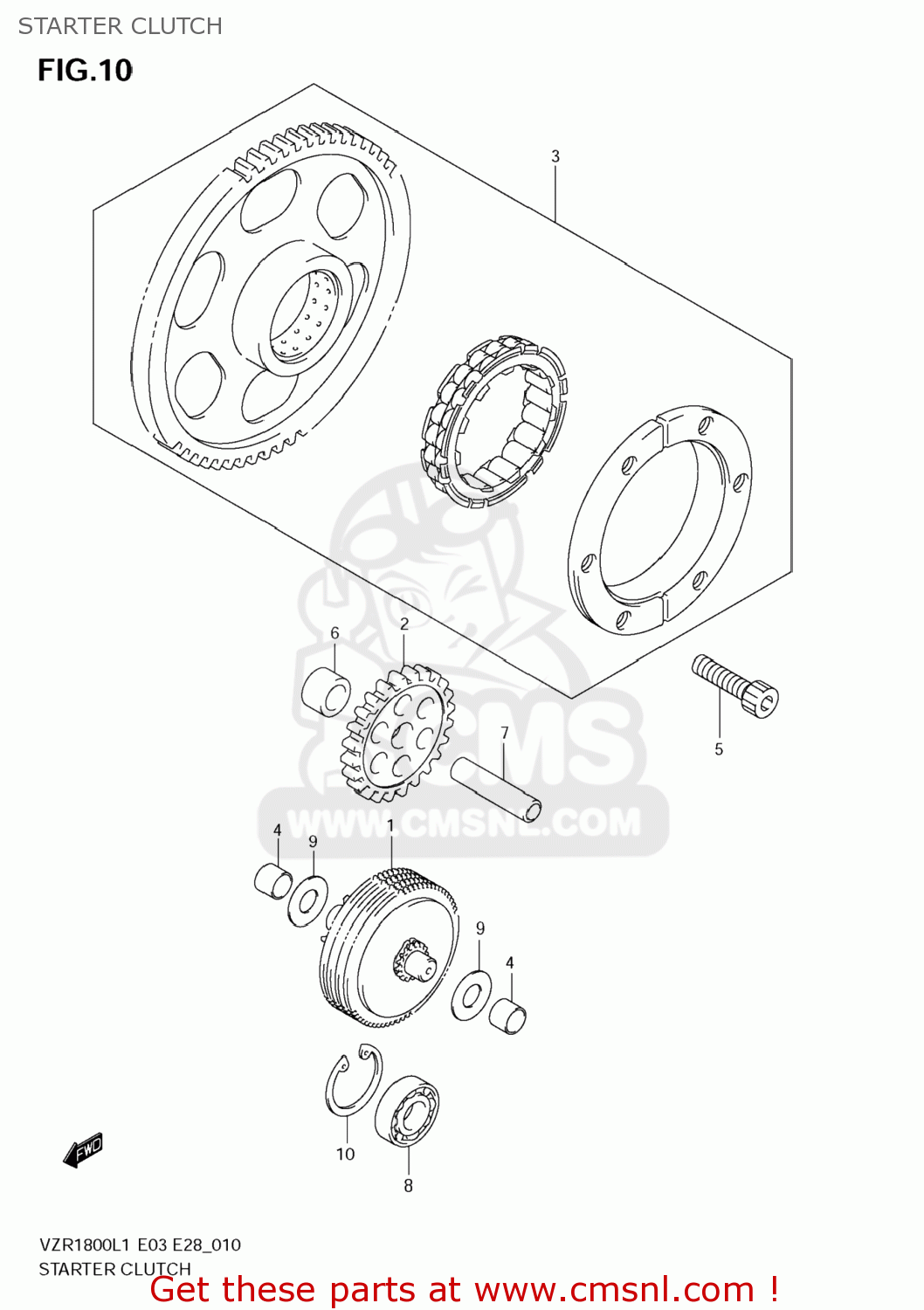

Starter clutch diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

1260048G01
ref: 1

LIMITER ASSY,START ID GR NO.1

€ 205.00

2

1261206G00
ref: 2

GEAR,STARTER IDLE NO.2

€ 50.00

3

1260048820
ref: 3

CLUTCH SET,STARTER

€ 274.00

4

1261831G00
ref: 4

BUSH,LIMITER GEAR SHAFT

€ 2.00

5

0910608190
ref: 5

BOLT(8X16)

€ 2.00

6

0918012138A05
ref: 6

SPACER(12.5X19X12.5)

€ 4.00

7

0920612006
ref: 7

PIN(8X12X45.5)

€ 7.50

8

0926212001
ref: 8

BEARING(12X28X8)

€ 15.00

9

0821110221
ref: 9

WASHER

€ 2.50

10

083314128A
ref: 10

CIRCLIP

€ 4.00
