LABEL (VZR1800Z L1 E33)

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

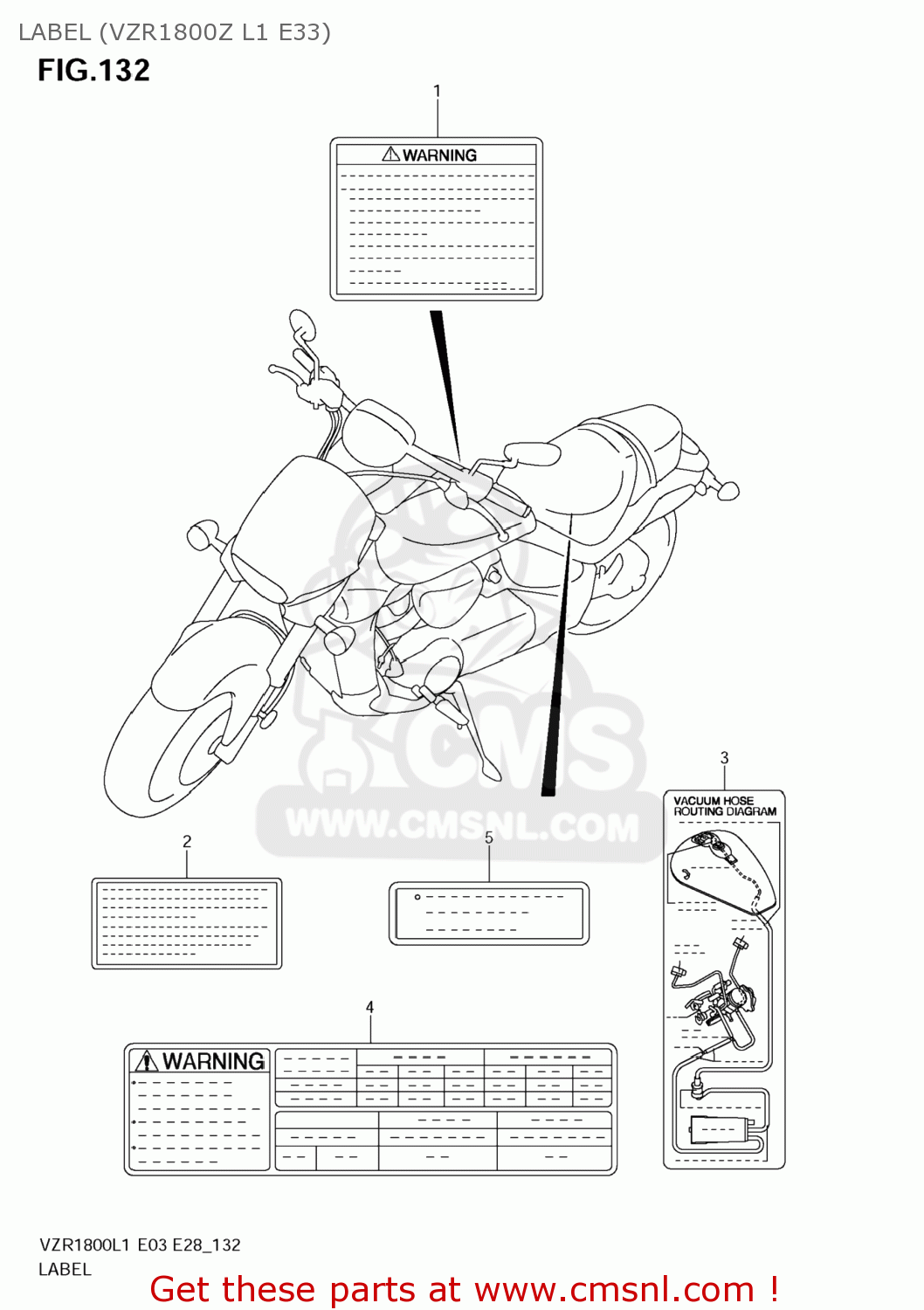

Label (vzr1800z l1 e33) diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

LABEL (VZR1800Z L1 E33) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

LABEL (VZR1800Z L1 E33) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

6831929F00
ref: 1

LABEL,GENERAL WARNING

€ 6.00

2

6835326E02
ref: 2

LABEL,MANUAL NOTICE

€ 3.50

3

6838748G10
ref: 3

LABEL,VACUUM HOSE ROUTING

€ 6.00

4

6833248G10
ref: 4

LABEL,TIRE INFORMATION

€ 0.00

5

1880302F01
ref: 5

LABEL,FUEL INFORMATION

€ 6.00

6

9901148G5503A
ref: 6

MANUAL,OWNER'S

€ 14.50
