SECONDARY DRIVE GEAR

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

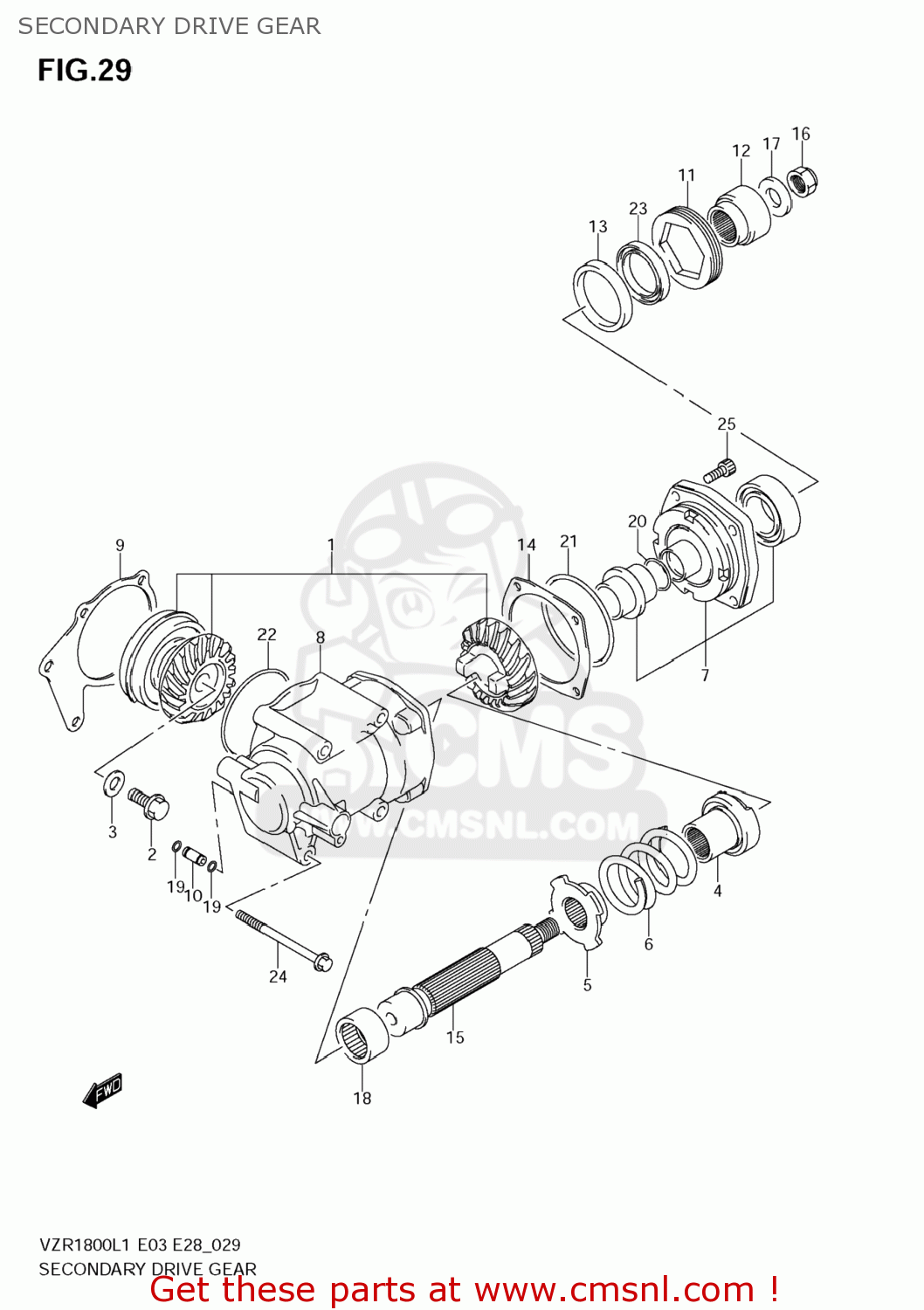

Secondary drive gear diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

SECONDARY DRIVE GEAR VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

SECONDARY DRIVE GEAR VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

2491048830
ref: 1

GEAR SET,SECONDARY

€ 754.50

2

0910312084
ref: 2

BOLT(12X24)

€ 5.50

3

0916012045
ref: 3

WASHER(12X35X2)

€ 3.50

4

2492348G10
ref: 4

DOG,OUTPUT CAM

€ 69.50

5

2492448G10
ref: 5

STOPPER,CAM SPRING

€ 51.50

6

2492548G00
ref: 6

SPRING,SECONDARY DAMPER

€ 26.00

7

2492648830
ref: 7

STOPPER SECONDARY SET,DRIVEN

€ 208.50

8

2493148G30
ref: 8

CASE,SECONDARY GEAR

€ 236.50

9

2493548810
ref: 9

SHIM SET,SEC DRIVE

€ 53.00

9

2493548810
ref: 9

SHIM SET,SEC DRIVE

€ 53.00

9

2493548810
ref: 9

SHIM SET,SEC DRIVE

€ 53.00

10

2494026D00
ref: 10

PIPE,SECONDARY CASE OIL

€ 13.50

11

2494226D00
ref: 11

STOPPER,SEC DRIVEN BEARING

€ 37.00

12

2494348G00
ref: 12

COUPLING,SEC D

€ 66.00

13

2494448G00
ref: 13

HOUSING,OIL SEAL

€ 28.00

14

2494548820
ref: 14

SHIM SET,SECONDARY DRIVEN

€ 84.50

14

2494548820
ref: 14

SHIM SET,SECONDARY DRIVEN

€ 84.50

15

2496148G00
ref: 15

SHAFT,SECONDARY DRIVEN

€ 102.50

16

0915916003
ref: 16

NUT

€ 3.50

17

0916016040
ref: 17

WASHER(16.5X36X4)

€ 7.00

18

0926332012
ref: 18

BEARING(32X48X22)

€ 62.50

19

0928006008
ref: 19

O RING(D:1.7,ID:6)

€ 2.00

20

0928024010
ref: 20

O RING(D:2.4,ID:23.7)

€ 5.50

21

0928078003
ref: 21

O RING(D:3.7,ID:76.5)

€ 6.00

22

0928092003
ref: 22

O RING(D:2.4,ID:90.8)

€ 12.00

23

0928338011
ref: 23

SEAL,OIL(38X54X6)

€ 11.50

24

015500895A
ref: 24

BOLT

€ 2.50

25

0910610087
ref: 25

BOLT(10X30)

€ 3.50
