SEAT (VZR1800 L1 E33)

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

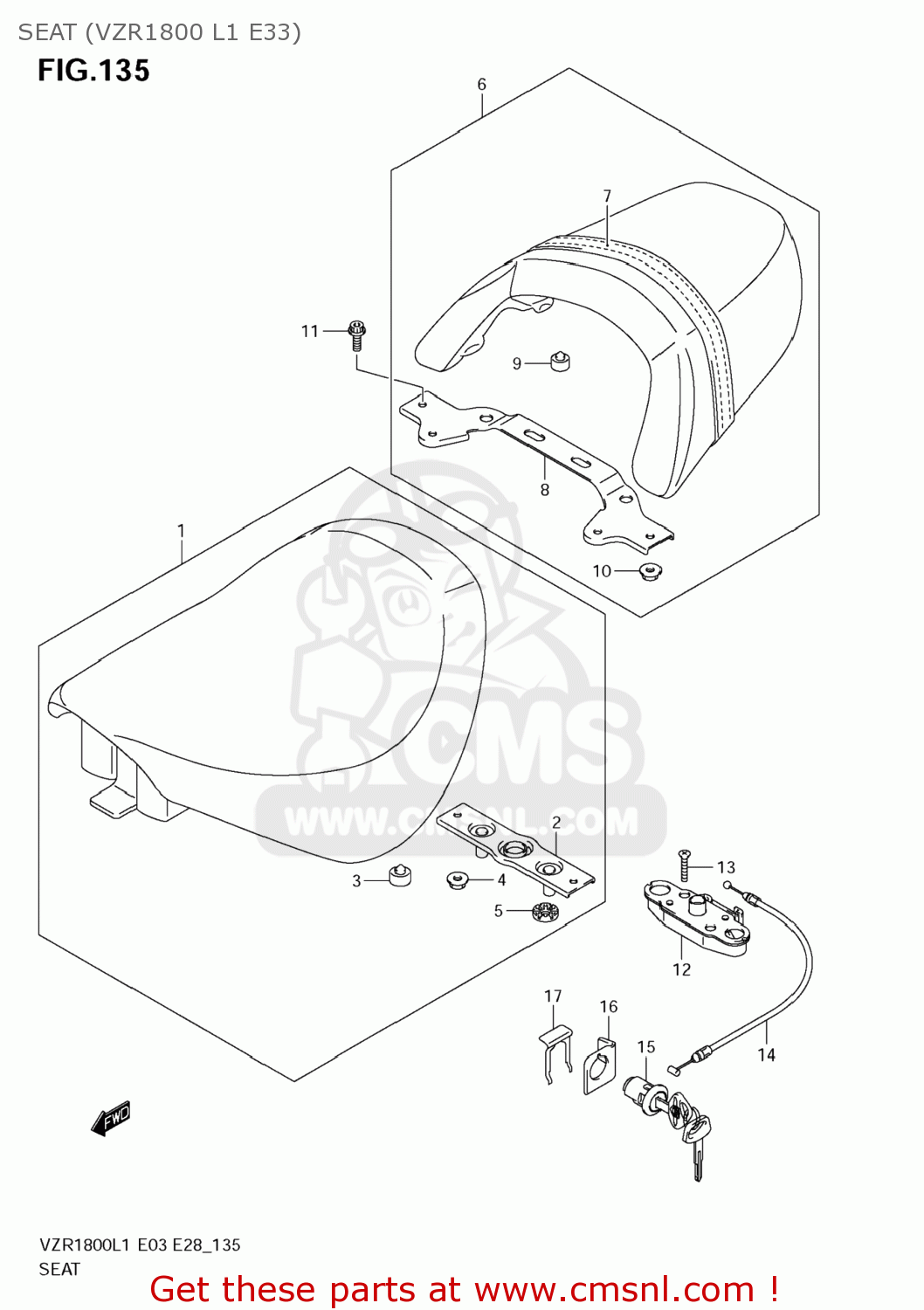

Seat (vzr1800 l1 e33) diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

SEAT (VZR1800 L1 E33) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

SEAT (VZR1800 L1 E33) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

4510048G0148H
ref: 1

SEAT ASSY

€ 287.50

2

4529042F02
ref: 2

STRIKER,SEAT LOCK

€ 23.00

3

0932110033
ref: 3

CUSHION

€ 3.50

4

083193106A
ref: 4

NUT

€ 2.50

5

4514948G00
ref: 5

CUSHION

€ 0.00

6

4530048G0048H
ref: 6

SEAT ASSY,PILLION

€ 274.50

7

4518048G00
ref: 7

BAND ASSY

€ 14.50

8

4531548G00
ref: 8

BRACKET,BAND

€ 25.00

9

0932110011
ref: 9

CUSHION

€ 3.00

10

083193106A
ref: 10

NUT

€ 2.50

11

071200616A
ref: 11

BOLT

€ 3.00

12

4522047H00
ref: 12

BRACKET,SEAT SUPPORT

€ 79.50

13

021220630A
ref: 13

SCREW

€ 1.50

14

4528048G00
ref: 14

CABLE,SEAT LOCK

€ 13.00

15

9570014810
ref: 15

LOCK SET,SEAT

€ 75.50

16

4528814F00
ref: 16

GUIDE,SEAT LOCK CABLE

€ 3.00

17

4528911F00
ref: 17

PLATE,SEAT LOCK ASSY

€ 3.00
