HEADLAMP COVER (VZR1800 L1 E28)

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

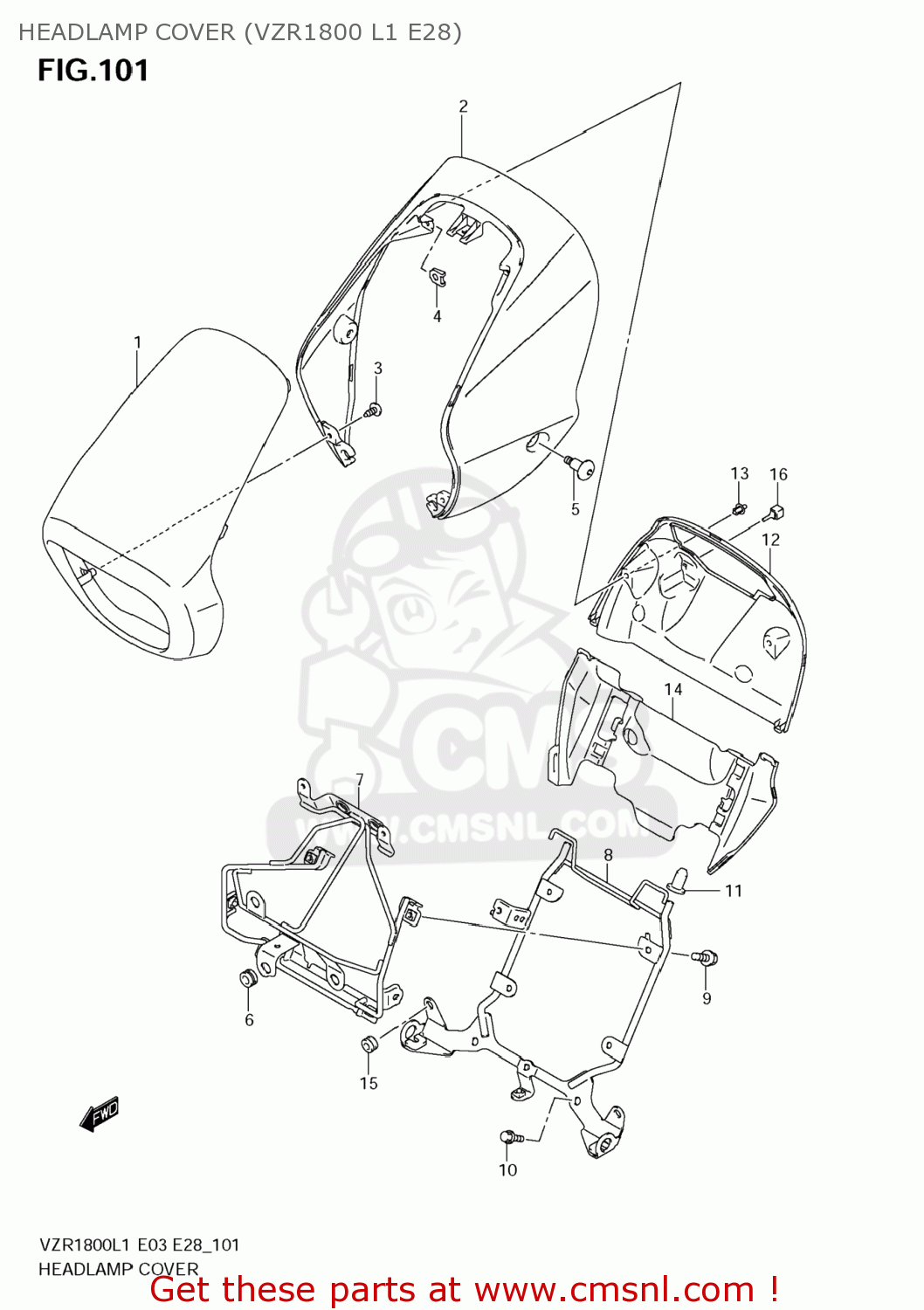

Headlamp cover (vzr1800 l1 e28) diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

HEADLAMP COVER (VZR1800 L1 E28) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

HEADLAMP COVER (VZR1800 L1 E28) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

5181148GB0
ref: 1

COVER,HEADLAMP

€ 105.00

2-1

5182148GB0YKZ
ref: 2-1

COVER,HEADLAMP LWR

€ 140.50

2-2

5182148GB0YVB
ref: 2-2

COVER,HEADLAMP LWR

€ 105.00

3

035410510A
ref: 3

SCREW

€ 1.50

4

0914805045
ref: 4

NUT

€ 2.00

5

0913906191
ref: 5

SCREW(6X22)

€ 4.50

6

0932009039
ref: 6

CUSHION

€ 6.00

7

5186048GB0
ref: 7

BRACE,HEADLAMP HOUSING

€ 116.50

8

5185048GB0
ref: 8

BRACE COMP,HEA

€ 93.50

9

015500612B
ref: 9

BOLT

€ 2.50

10

015500816A
ref: 10

BOLT

€ 2.50

11

5183121D00
ref: 11

CUSHION,HEADLAMP HOUSING BRACE

€ 3.00

12

5183148GB0
ref: 12

COVER,HEADLAMP UPR

€ 19.00

13

09409063145PK
ref: 13

CLIP(BLACK)

€ 3.50

14

5184148GB0
ref: 14

COVER,HEADLAMP HSG BRACKET

€ 17.50

15

0932006016
ref: 15

CUSHION

€ 4.50

16

5183248GB0
ref: 16

CUSHION,HEADLAMP COVER UPR

€ 3.50
