SPEEDOMETER (VZR1800 L1 E28)

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

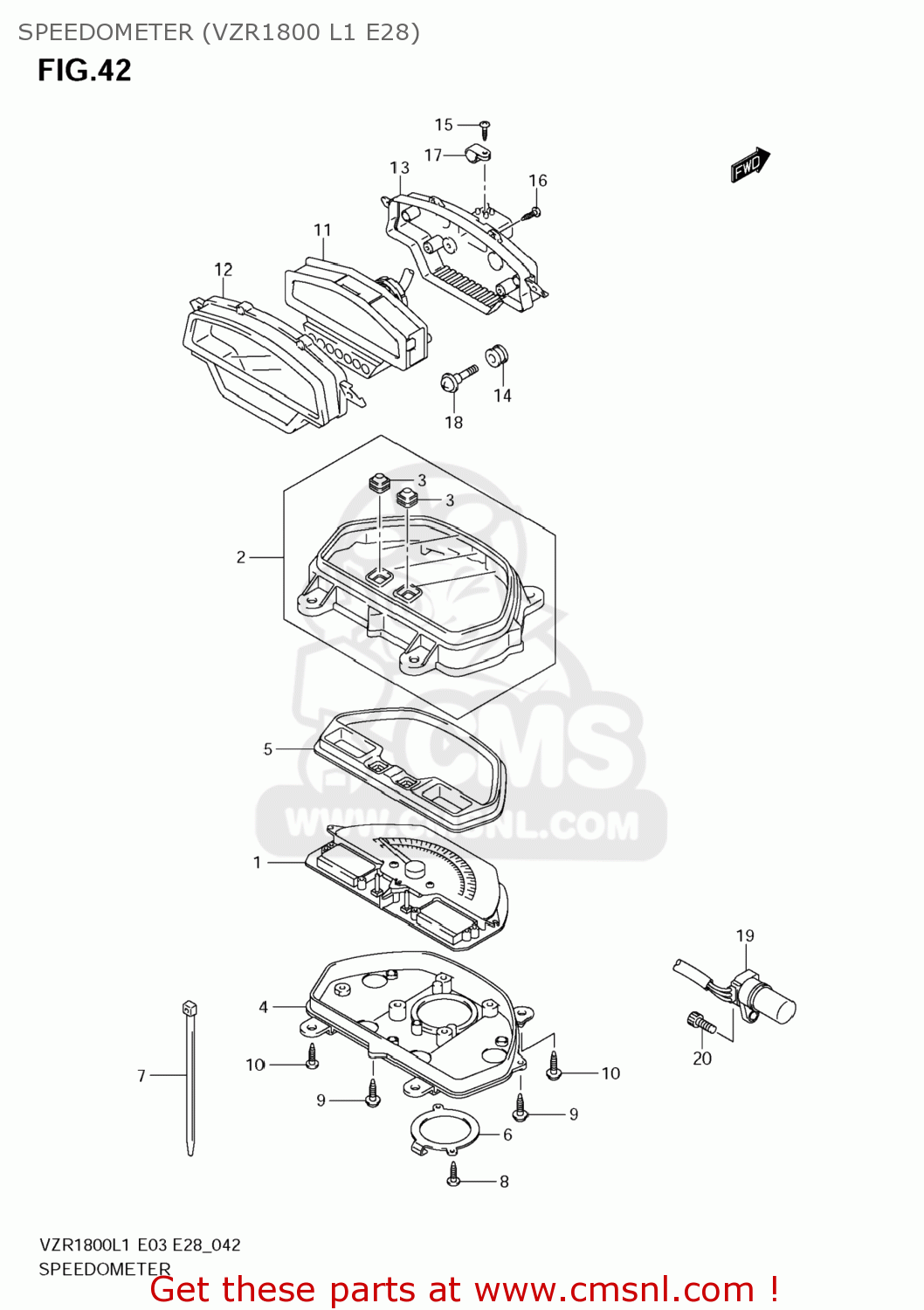

Speedometer (vzr1800 l1 e28) diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

SPEEDOMETER (VZR1800 L1 E28) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

SPEEDOMETER (VZR1800 L1 E28) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

3412048GA0
ref: 1

SPEEDOMETER

€ 809.00

2

3415048G00
ref: 2

UPR CASE ASSY

€ 78.50

3

3412432F00
ref: 3

RUBBER,SWITCH

€ 3.50

4

3411148G40
ref: 4

LWR CASE

€ 53.00

5

3412548G00
ref: 5

REFLECTOR ASSY

€ 40.00

6

3495048G00
ref: 6

BRACKET

€ 15.50

7

3419248G00
ref: 7

CLAMP

€ 10.50

8

3418309F00
ref: 8

SCREW(3X12)

€ 2.00

9

3414903G00
ref: 9

SCREW(3X14)

€ 2.50

10

035410516A
ref: 10

SCREW

€ 1.50

11

3422048G30
ref: 11

TACHOMETER ASSY

€ 855.00

12

3425048G30
ref: 12

CASE ASSY,UPR

€ 71.50

13

3421148G30
ref: 13

CASE ASSY,LWR

€ 50.00

14

3495513E00
ref: 14

CUSHION

€ 3.00

15

3414917E10
ref: 15

SCREW(4X14)

€ 4.00

16

0913203008
ref: 16

SCREW(3X16)

€ 1.50

17

3638524A30
ref: 17

CLAMP

€ 6.50

18

035410516A
ref: 18

SCREW

€ 1.50

19

3499048G00
ref: 19

SENSOR,SPEED

€ 95.50

20

071300616A
ref: 20
07130-0616B

BOLT

€ 3.00
