SECOND AIR

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

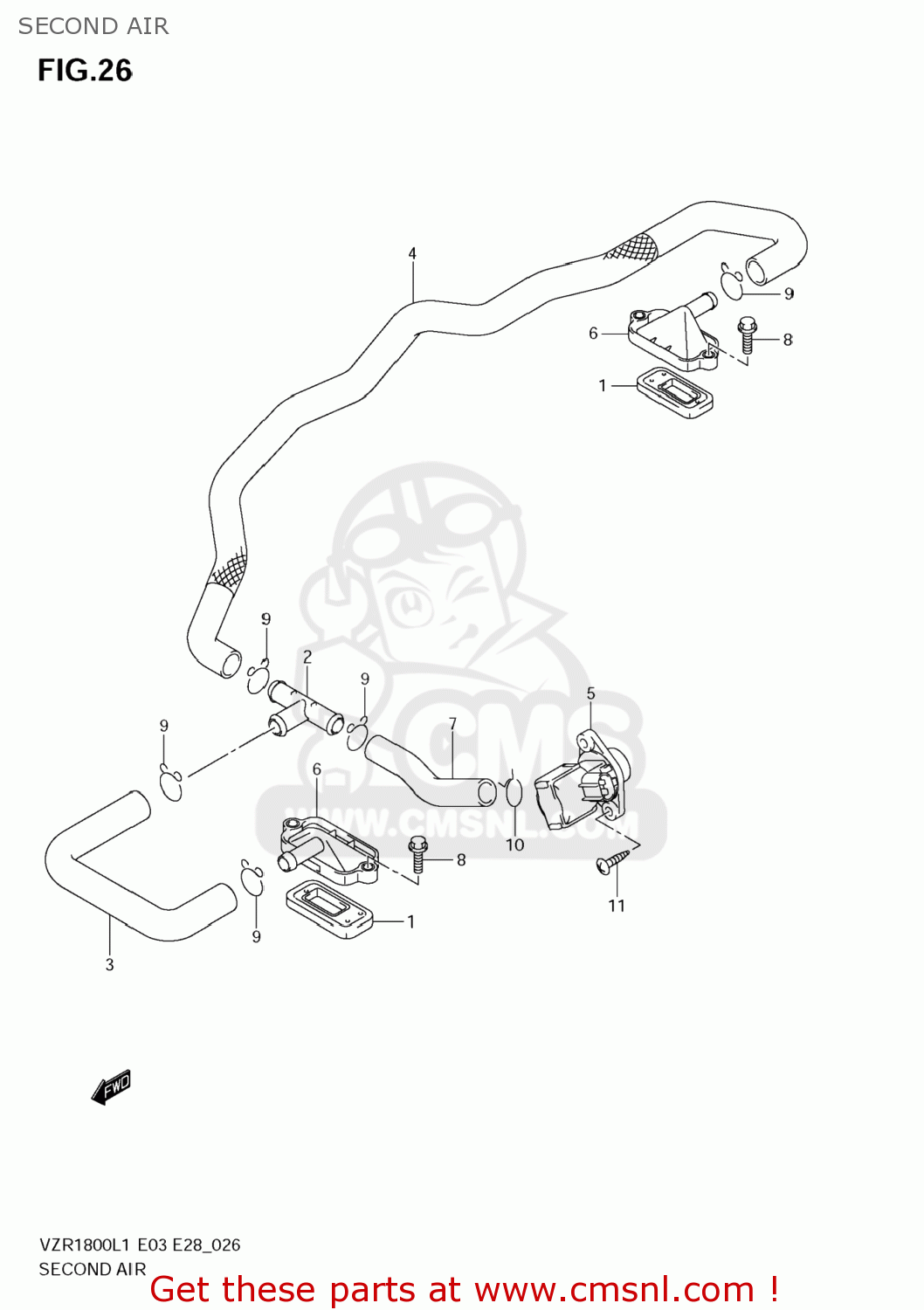

Second air diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

1845006G00
ref: 1

VALVE ASSY,2ND AIR REED

€ 22.50

2

1385518A03
ref: 2

JOINT

€ 4.00

3

1846148G10
ref: 3

HOSE,2ND AIR VALVE FR

€ 0.00

4

1847148G10
ref: 4

HOSE,2ND AIR VALVE RR

€ 0.00

5

1851027G00
ref: 5

VALVE ASSY,AIR CUT

€ 61.00

6

1853106G01
ref: 6

COVER,2ND AIR

€ 9.50

7

1871148G00
ref: 7

HOSE,2ND AIR VALVE

€ 0.00

8

0910306201
ref: 8

BOLT(6X20)

€ 2.00

9

0940115101
ref: 9

CLIP

€ 2.00

10

0940118304A05
ref: 10

CLIP

€ 2.00

11

035410520A
ref: 11

SCREW

€ 2.50

up
