SEAT TAIL BOX (VZR1800 L1 E33)

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

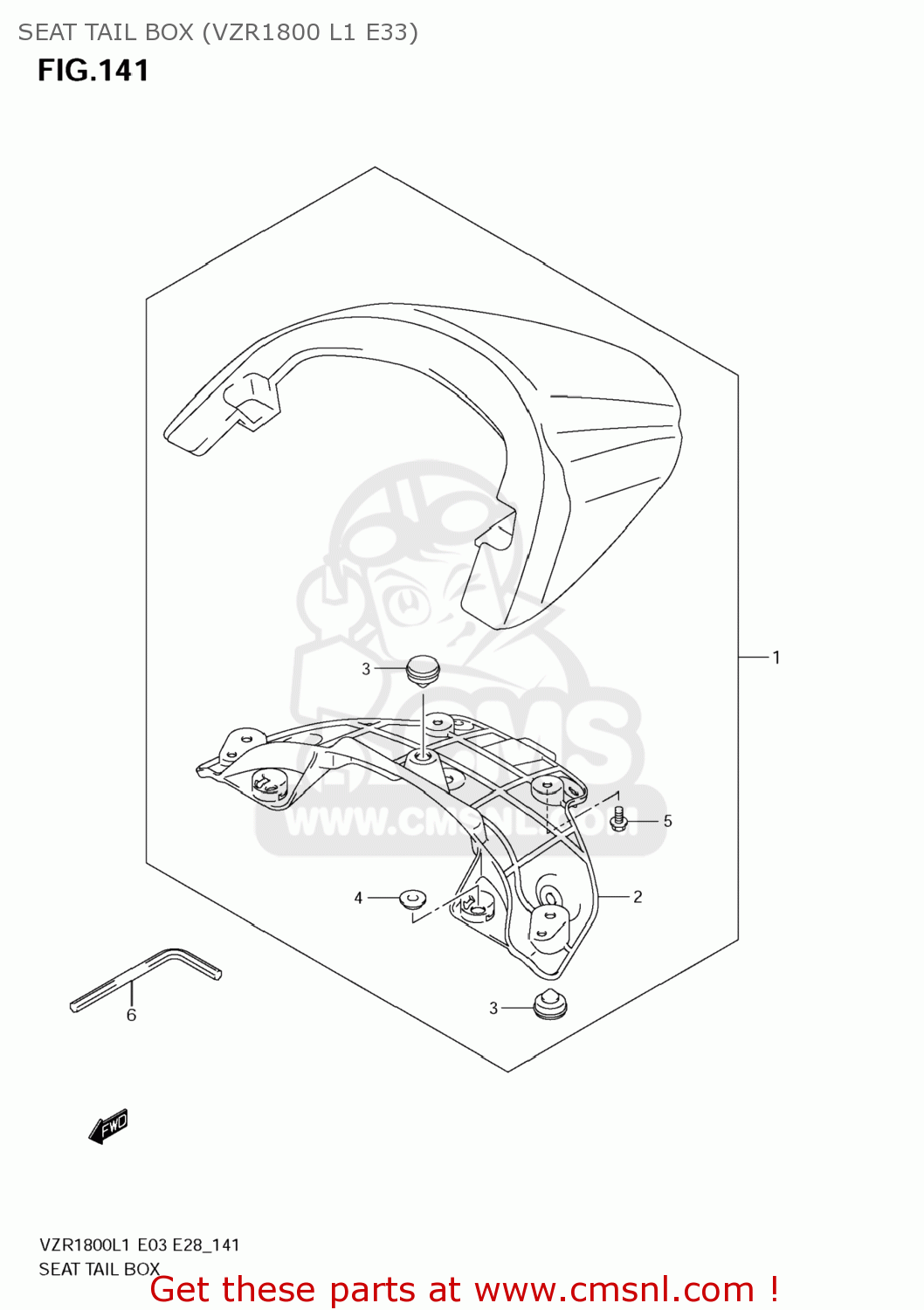

Seat tail box (vzr1800 l1 e33) diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1-1

4555048G00YKZ
ref: 1-1

BOX,SEAT TAIL(BLUE)

€ 177.50

1-2

4555048G00YVB
ref: 1-2

BOX,SEAT TAIL(BLACK)

€ 140.00

4555248G00
ref: 2

BOTTOM,SEAT TAIL BOX

€ 12.50

4514816700
ref: 3
09321-10002

CUSHION,FR

€ 2.00

4555348G00
ref: 4

COLLAR

€ 4.00

015500612B
ref: 5

BOLT

€ 2.50

0981600059
ref: 6

HEXAGON SPANNER,5

€ 5.50
