FRAME HEAD COVER (VZR1800 L1 E33)

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

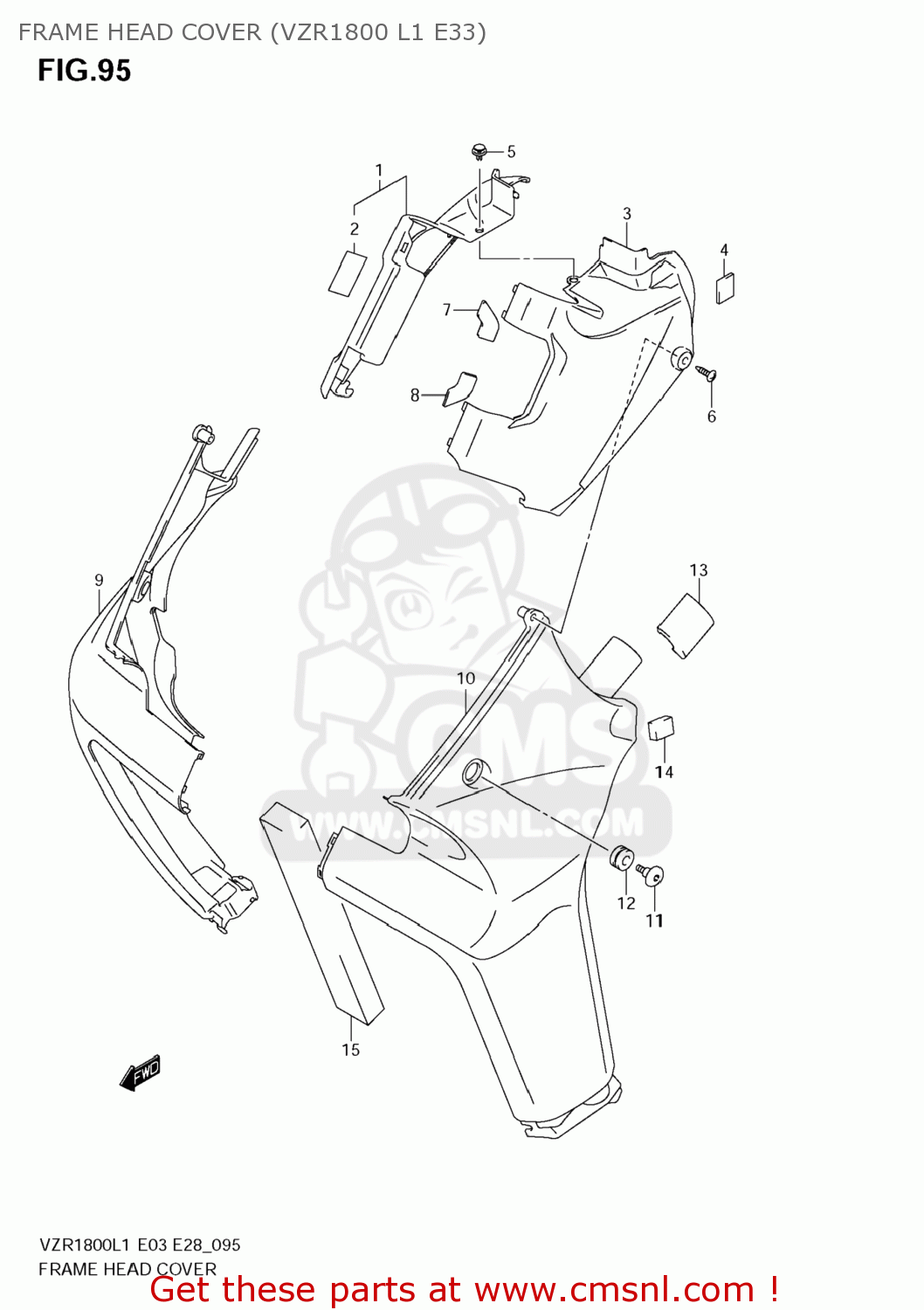

Frame head cover (vzr1800 l1 e33) diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

FRAME HEAD COVER (VZR1800 L1 E33) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

FRAME HEAD COVER (VZR1800 L1 E33) VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1-1

4735048G00YKZ
ref: 1-1

COVER,FRAME HEAD,R(BLUE)

€ 84.00

1-2

4735048G00YVB
ref: 1-2

COVER,FRAME HEAD,R(BLACK)

€ 98.50

2

8944561J00
ref: 2

PROTECTOR

€ 4.00

3-1

4736148G00YKZ
ref: 3-1

COVER,FRAME HEAD,L(BLUE)

€ 240.00

3-2

4736148G00YVB
ref: 3-2

COVER,FRAME HEAD,L(BLACK)

€ 95.00

4

1779839G00
ref: 4

CUSHION,RADIATOR COVER INNER

€ 5.50

5

0940906328
ref: 5

CLIP

€ 3.50

6

035410516A
ref: 6

SCREW

€ 1.50

7

4735248G00
ref: 7

TAPE,HEAD COVER UPR

€ 4.00

8

4735348G01
ref: 8

TAPE,HEAD COVER LWR

€ 5.00

9-1

4755148G00YKZ
ref: 9-1

COVER,FRAME BODY UPR,R

€ 149.00

9-2

4755148G00YVB
ref: 9-2

COVER,FRAME BODY UPR,R

€ 129.50

10-1

4756148G00YKZ
ref: 10-1

COVER,FRAME BODY UPR,L

€ 146.00

10-2

4756148G00YVB
ref: 10-2

COVER,FRAME BODY UPR,L

€ 129.50

11

0913906126
ref: 11

SCREW(6X20)

€ 4.00

12

0932009016
ref: 12

CUSHION

€ 2.50

13

6319125C00
ref: 13

CUSHION

€ 2.50

14

1779839G00
ref: 14

CUSHION,RADIATOR COVER INNER

€ 5.50

15

4755248G00
ref: 15

CUSHION,FRAME BODY COVER,R

€ 8.50
