RADIATOR

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

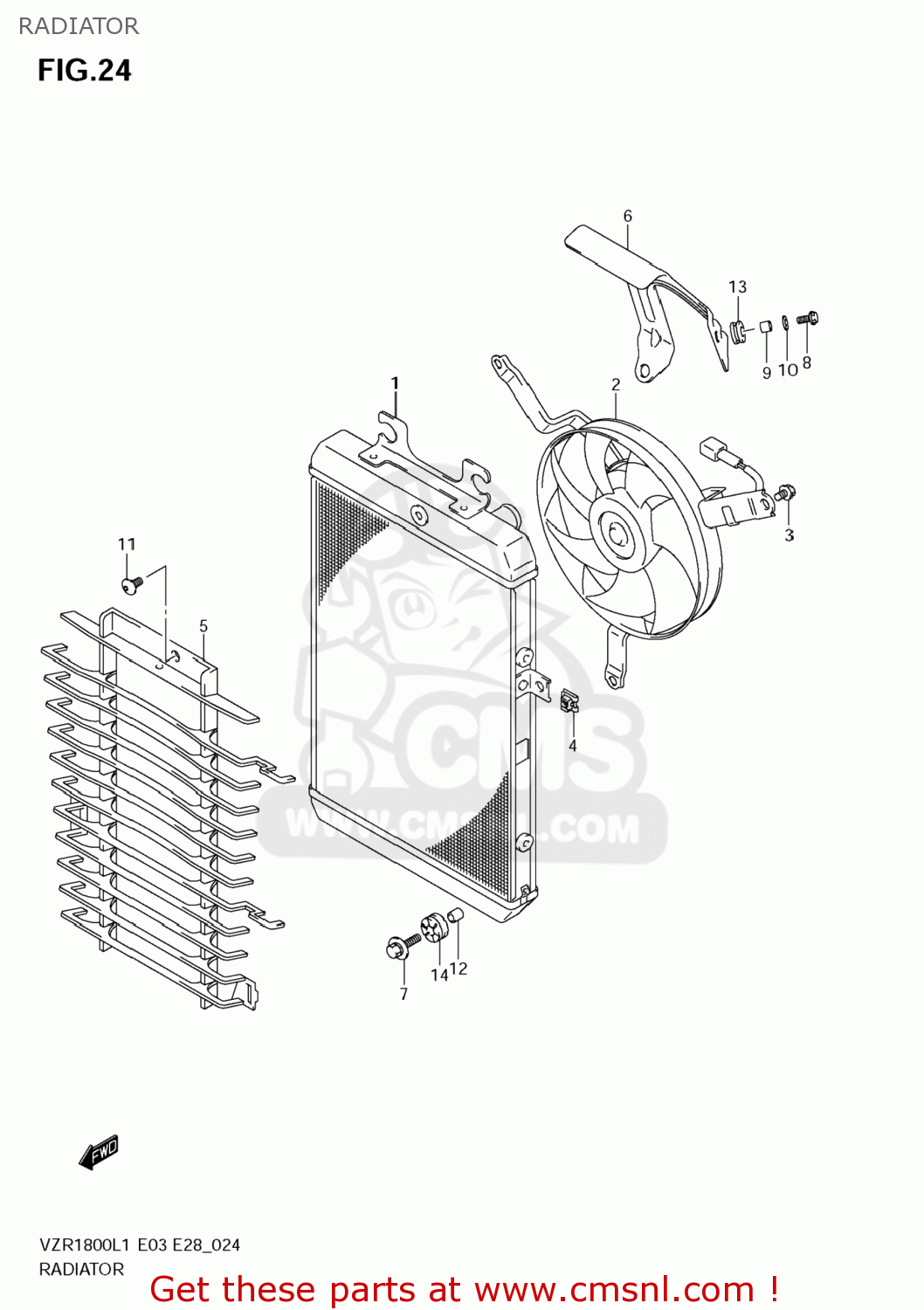

Radiator diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

RADIATOR VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)
RADIATOR VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)
RADIATOR VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)
prices are in EUR
ref
part #
description
quantity
1
1771048G00
ref: 1
RADIATOR ASSY,WATER
€ 691.50
2
1780048G00
ref: 2
FAN ASSY,RADIATOR
€ 572.00
3
1771140F00
ref: 3
BOLT,FAN ASSY
1771140F00
€ 3.50
4
1771240F00
ref: 4
NUT,FAN ASSY
1771240F00
€ 3.50
5
1776148G00
ref: 5
GUARD,RADIATOR
1776148G00
€ 29.00
6
1777148G10
ref: 6
SHIELD,RADIATOR HEAT
€ 85.00
7
0911806097
ref: 7
BOLT(6X25)
0911806097
€ 2.50
8
015470616B
ref: 8
BOLT
015470616B
€ 2.50
9
0918006001
ref: 9
SPACER(6.2X8.3X5.7)
0918006001
€ 2.00
10
0916006152
ref: 10
WASHER(6.5X20X1.2)
0916006152
€ 1.50
11
0913906144
ref: 11
SCREW(6X12)
0913906144
€ 3.00
12
0918006290
ref: 12
SPACER(6.5X10X12)
0918006290
€ 2.50
13
0932008066
ref: 13
CUSHION
0932008066
€ 7.50
14
0932010051
ref: 14
CUSHION
0932010051
€ 3.50
