MAGNETO

VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

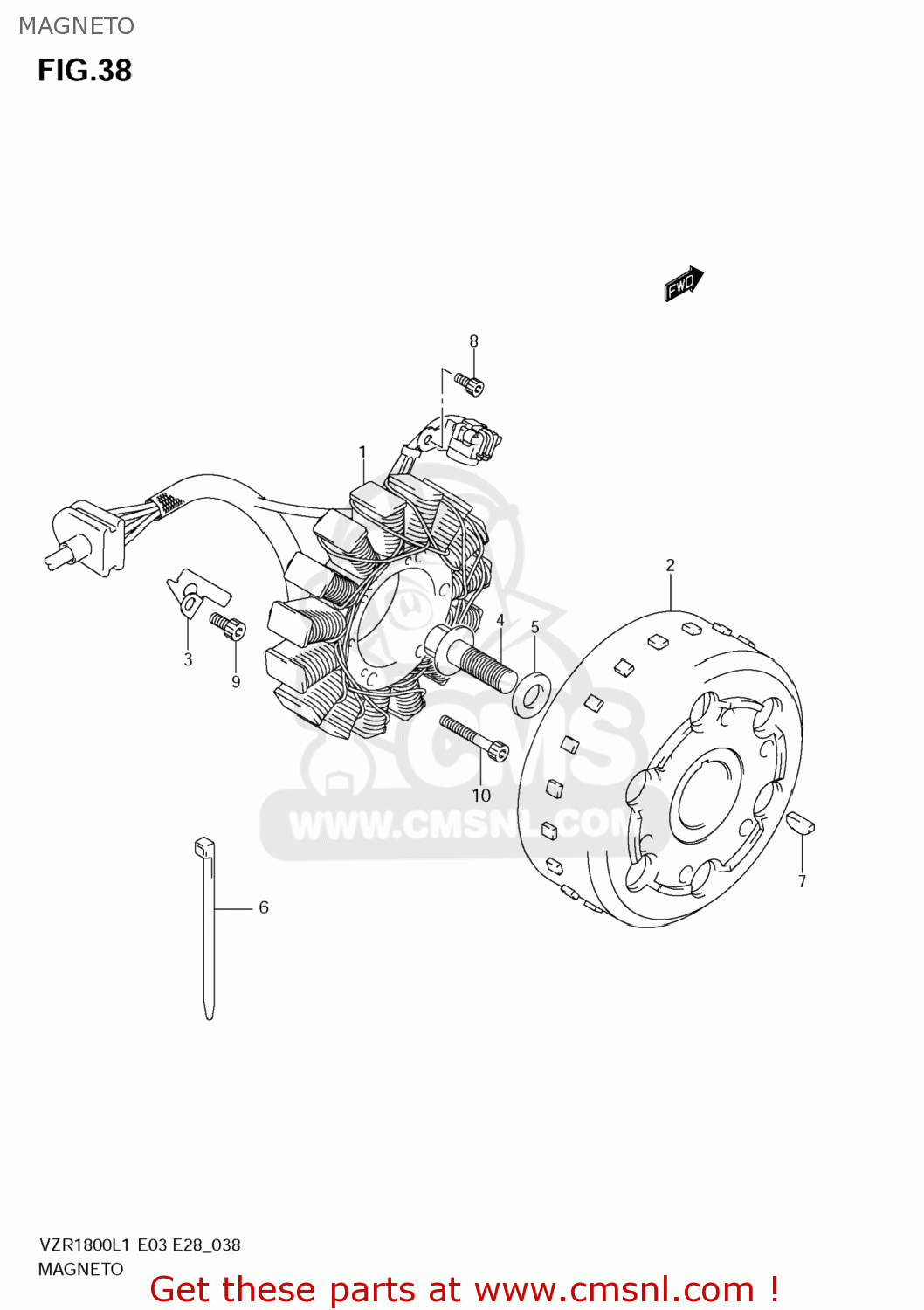

Magneto diagram VZR1800 BOULEVARD M109R 2011 (L1) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

3210148G20
ref: 1

STARTER ASSY

€ 698.50

2

3210248G20
ref: 2

ROTOR ASSY

€ 626.00

3

3237133E00
ref: 3

CLAMP,MAGNETO LEAD

€ 3.50

4

0910314001
ref: 4

BOLT(14X43)

€ 7.00

5

0916014021
ref: 5

WASHER(14X29X4)

€ 5.00

6

0940714407
ref: 6

CLAMP(L:145)

€ 4.00

7

0942005007
ref: 7

KEY

€ 3.00

8

071300510A
ref: 8

BOLT

€ 1.50

9

071300612A
ref: 9

BOLT

€ 2.50

10

0910606122
ref: 10

BOLT(6X30)

€ 2.50
