BATTERY HOLDER

DL650A VSTROM 2011 (L1) USA (E03)

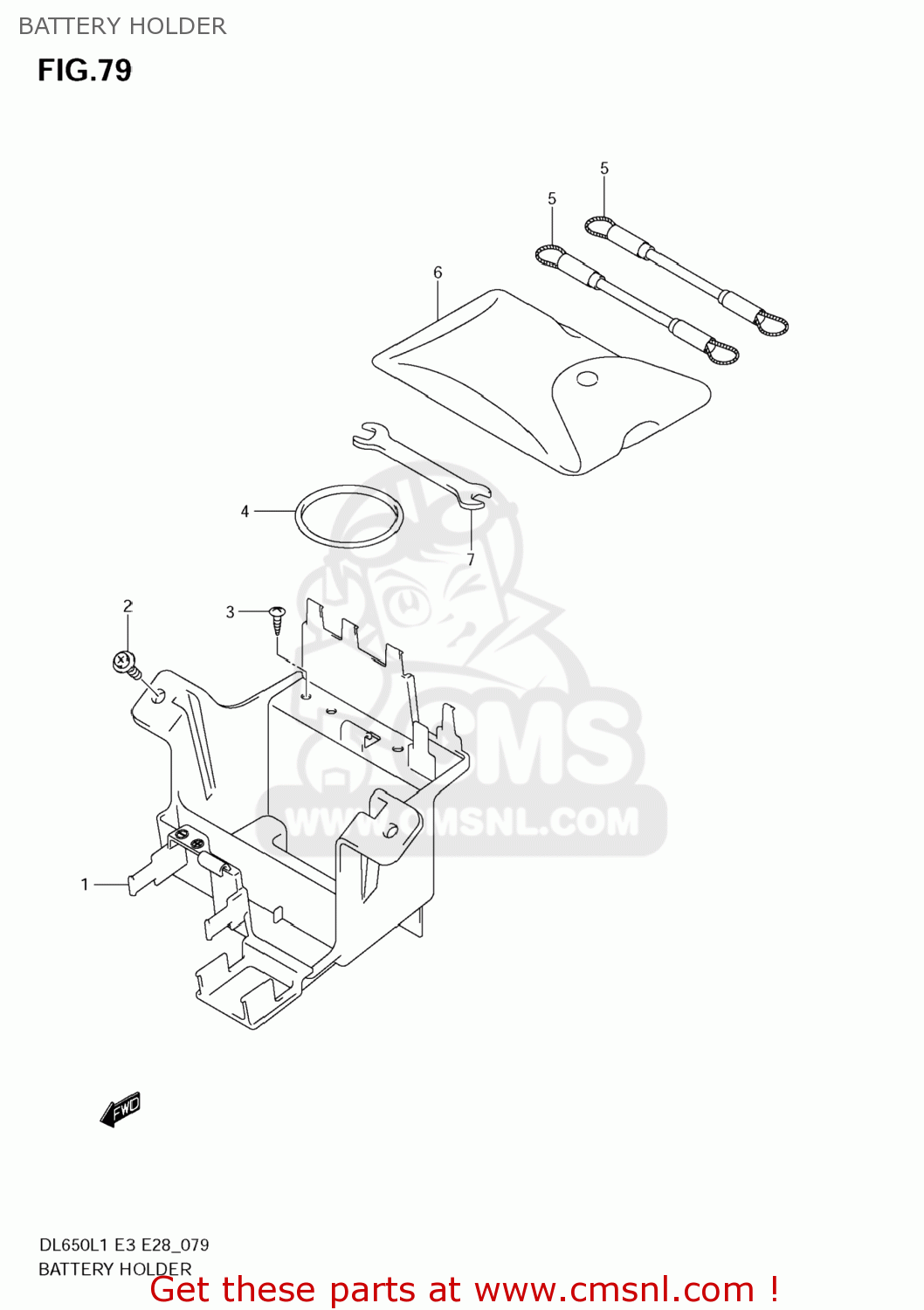

Battery holder diagram DL650A VSTROM 2011 (L1) USA (E03)

BATTERY HOLDER DL650A VSTROM 2011 (L1) USA (E03)

BATTERY HOLDER DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4743127GA0
ref: 1

HOLDER,BATTERY

€ 36.00

2

6316143E00
ref: 2

BOLT

€ 3.00

3

0913205053
ref: 3

SCREW(5X16)

€ 2.50

4

0928061002
ref: 4

O RING(D:3.5,ID:61)

€ 5.00

5

9574006G00
ref: 5

CABLE,HELMET LOCK

€ 22.50

6

0980021035
ref: 6

TOOL ASSY

€ 28.50

7

0981300027
ref: 7

OPEN SPANNER(8X10)

€ 3.00

all assemblies

BATTERY (DL650 L1 E28)

BATTERY (DL650 L1 E3)

BATTERY (DL650 L1 E33)

BATTERY (DL650A L1 E28)

BATTERY (DL650A L1 E3)

BATTERY (DL650A L1 E33)
