FRONT BRAKE HOSE (DL650A L1 E33)

DL650A VSTROM 2011 (L1) USA (E03)

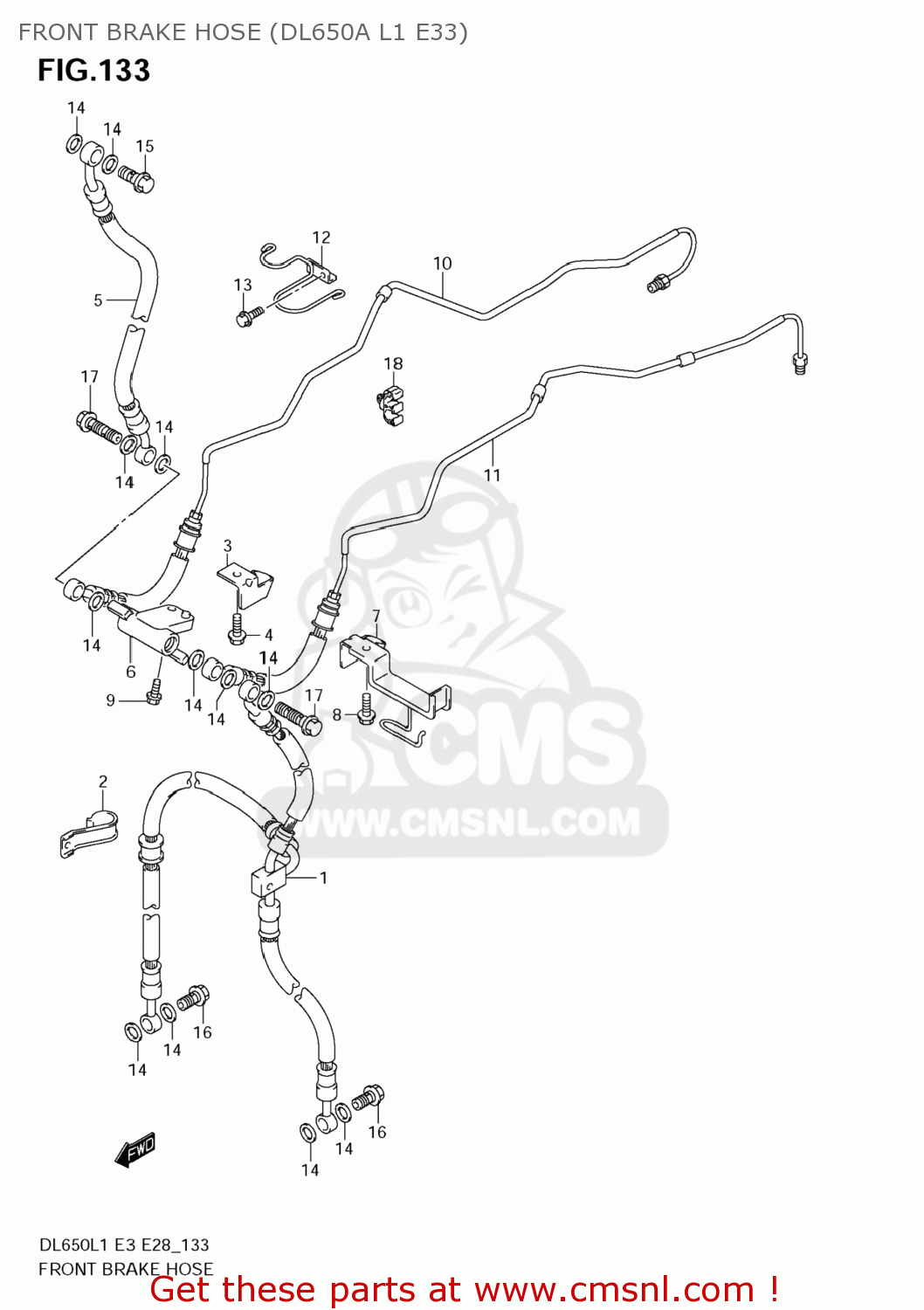

Front brake hose (dl650a l1 e33) diagram DL650A VSTROM 2011 (L1) USA (E03)

FRONT BRAKE HOSE (DL650A L1 E33) DL650A VSTROM 2011 (L1) USA (E03)

FRONT BRAKE HOSE (DL650A L1 E33) DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5924027G00
ref: 1

HOSE,FR BRAKE NO.2

€ 219.00

2

5926827G00
ref: 2

CLAMP,FR BRAKE HOSE,R

€ 8.50

3

5925327G00
ref: 3

CLAMP,FR BRAKE HOSE ASSY NO.1

€ 9.50

3

5925327G00
ref: 3

CLAMP,FR BRAKE HOSE ASSY NO.1

€ 9.50

4

015470612A
ref: 4

BOLT

€ 2.00

5

5948027G00
ref: 5

HOSE,FR BRAKE NO.1

€ 77.00

6

5949138G00
ref: 6

JOINT,FR BRAKE HOSE

€ 60.50

7

5926027G00
ref: 7

CLAMP,FR BRAKE HOSE NO.2

€ 24.00

8

015470612A
ref: 8

BOLT

€ 2.00

9

015500616A
ref: 9

BOLT

€ 2.50

10

5920027G00
ref: 10

HOSE ASSY,FR BRAKE NO.1

€ 110.50

11

5940027G00
ref: 11

HOSE ASSY,FR BRAKE NO.2

€ 102.00

12

5954006G10
ref: 12

GUIDE,FR BRAKE HOSE

€ 22.00

13

015470612A
ref: 13

BOLT

€ 2.00

14

0916110009
ref: 14

WASHER(10X15X1.5)

€ 2.00

15

0936010062
ref: 15

BOLT UNION

€ 5.00

16

0936010062
ref: 16

BOLT UNION

€ 5.00

17

0936010064
ref: 17

BOLT UNION

€ 5.00

18

0940307334
ref: 18

CLAMP

€ 3.00
