CYLINDER

DL650A VSTROM 2011 (L1) USA (E03)

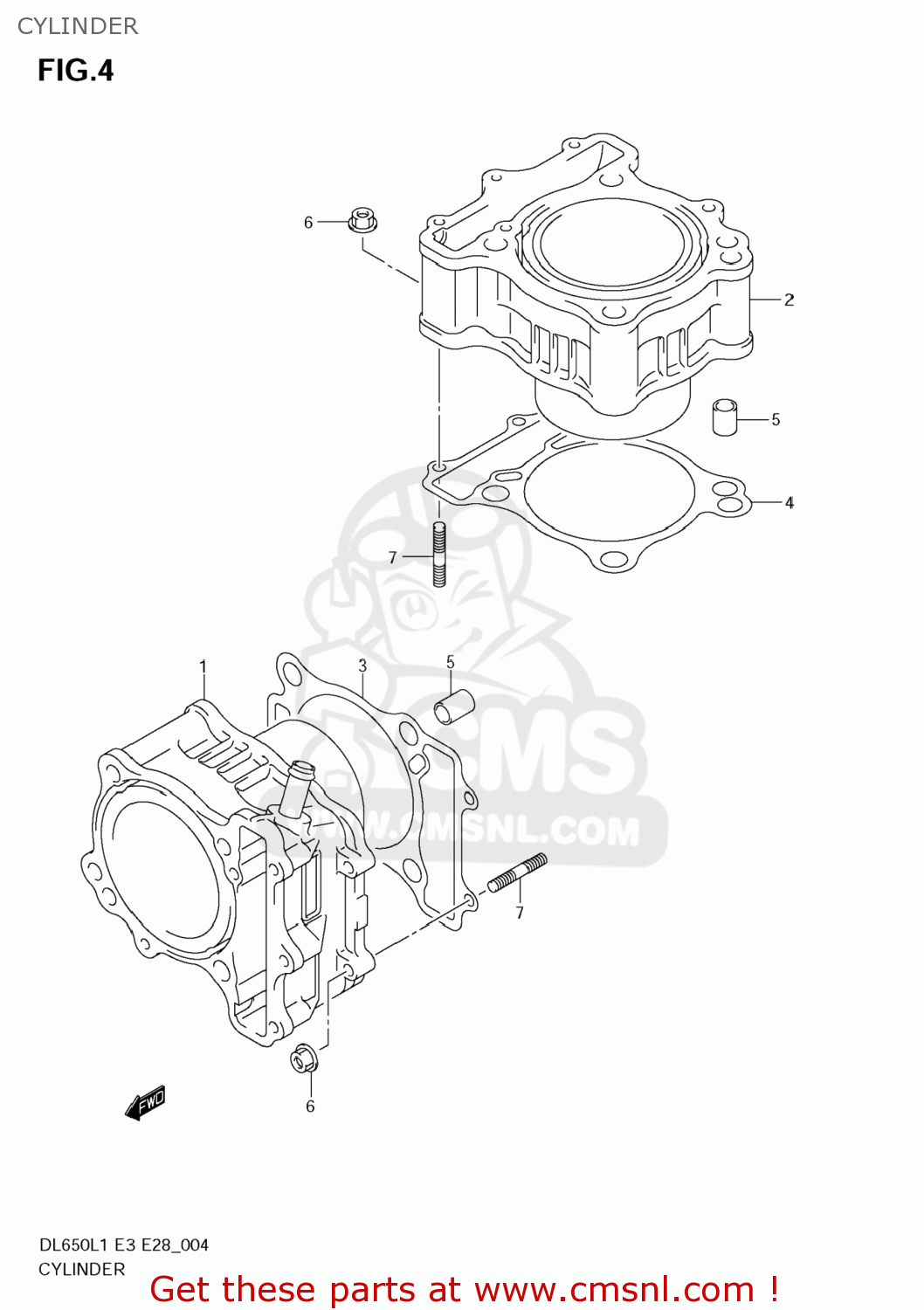

Cylinder diagram DL650A VSTROM 2011 (L1) USA (E03)

CYLINDER DL650A VSTROM 2011 (L1) USA (E03)

CYLINDER DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121020F300F0
ref: 1

CYLINDER,FR

€ 620.00

2

1122020F200F0
ref: 2

CYLINDER,RR

€ 620.00

3

1124119F00
ref: 3

GASKET,CYLINDER FR (NAS)

€ 11.50

4

1124219F00
ref: 4

GASKET,CYLINDER RR (NAS)

€ 11.00

5

0421113189
ref: 5

PIN

€ 2.50

6

083161006B
ref: 6

NUT

€ 2.50

7

014210625B
ref: 7

BOLT,STUD

€ 2.50
