CRANKSHAFT

DL650A VSTROM 2011 (L1) USA (E03)

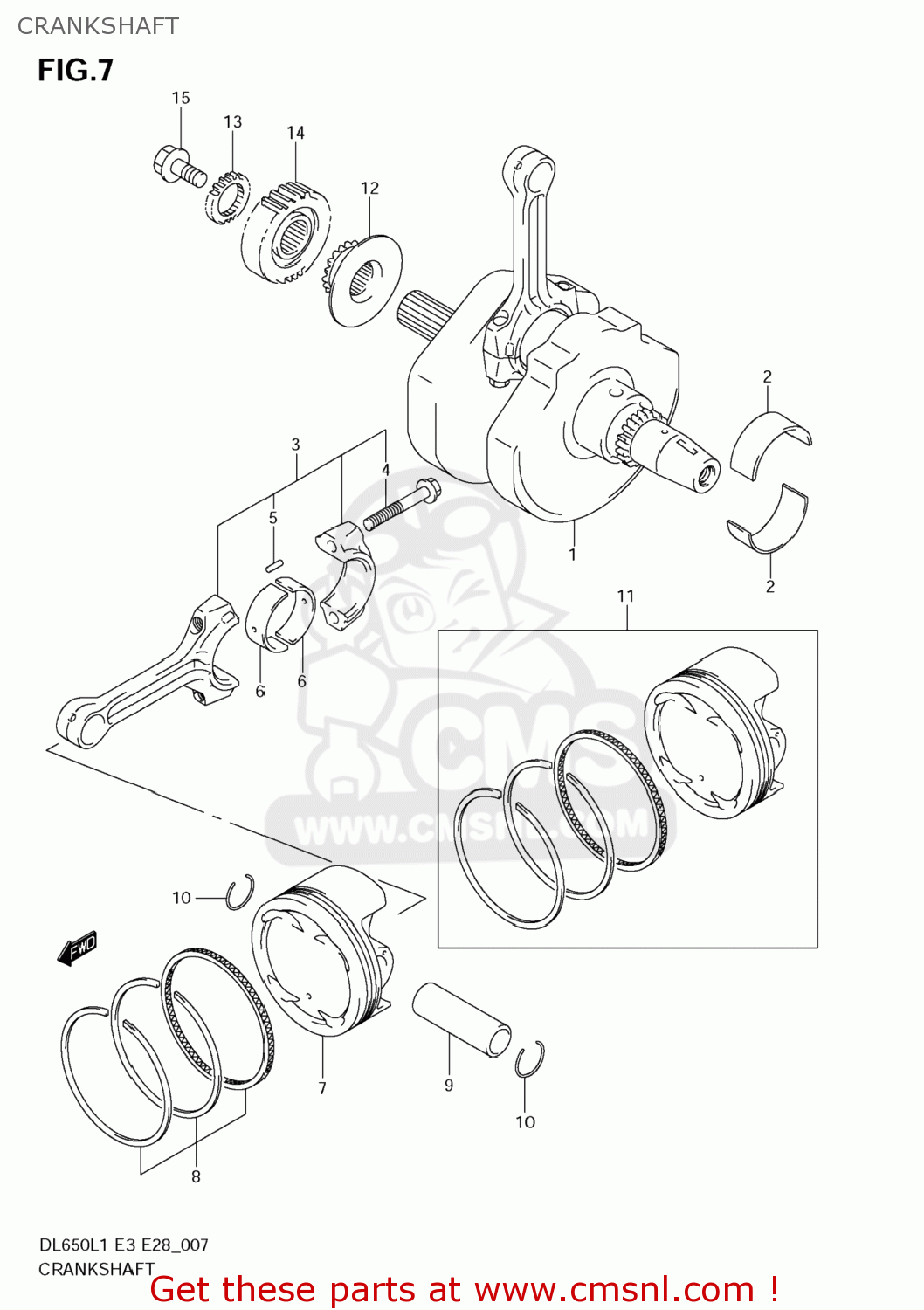

Crankshaft diagram DL650A VSTROM 2011 (L1) USA (E03)

CRANKSHAFT DL650A VSTROM 2011 (L1) USA (E03)

CRANKSHAFT DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1222017G00
ref: 1

CRANKSHAFT

€ 1,429.00

2-1

1222944H000A0
ref: 2-1

BEARING,CRANKSHAFT

€ 14.50

2-2

1222944H000B0
ref: 2-2

BEARING,CRANKSHAFT

€ 14.50

2-3

1222944H000C0
ref: 2-3

BEARING,CRANKSHAFT

€ 14.50

3

1216017G10
ref: 3

CONNECTING ROD ASSY

€ 146.50

4

1216324F10
ref: 4

BOLT,CONNECTING ROD

€ 13.00

5

0422104089
ref: 5

PIN

€ 1.50

6-1

1216446E010A0
ref: 6-1

BEARING,CRANK PIN

€ 17.50

6-2

1216446E010B0
ref: 6-2

BEARING,CRANK PIN

€ 16.50

6-3

1216446E010C0
ref: 6-3

BEARING,CRANK PIN

€ 17.50

6-4

1216446E010D0
ref: 6-4

BEARING,CRANK PIN

€ 16.50

7

1211120F100F0
ref: 7

PISTON

€ 87.00

8

1214017G20
ref: 8

RING SET,PISTON

€ 66.00

9

1215105A00
ref: 9

PIN,PISTON

€ 12.00

10

0938120004
ref: 10

CIRCLIP,PISTON PIN

€ 2.00

11

1210017G20050
ref: 11

PISTON SET(OS:0.5)

€ 147.00

12

1273119F00
ref: 12

SPROCKET,CAM CHAIN DRIVE

€ 45.00

13

1745117G00
ref: 13

GEAR,WATER PUMP DRIVE

€ 26.00

14

2111120F10
ref: 14

GEAR,PRIMARY DRIVE

€ 111.50

15

0910310338
ref: 15

BOLT(10X19)

€ 6.00
