COWL BODY INSTALLATION PARTS

DL650A VSTROM 2011 (L1) USA (E03)

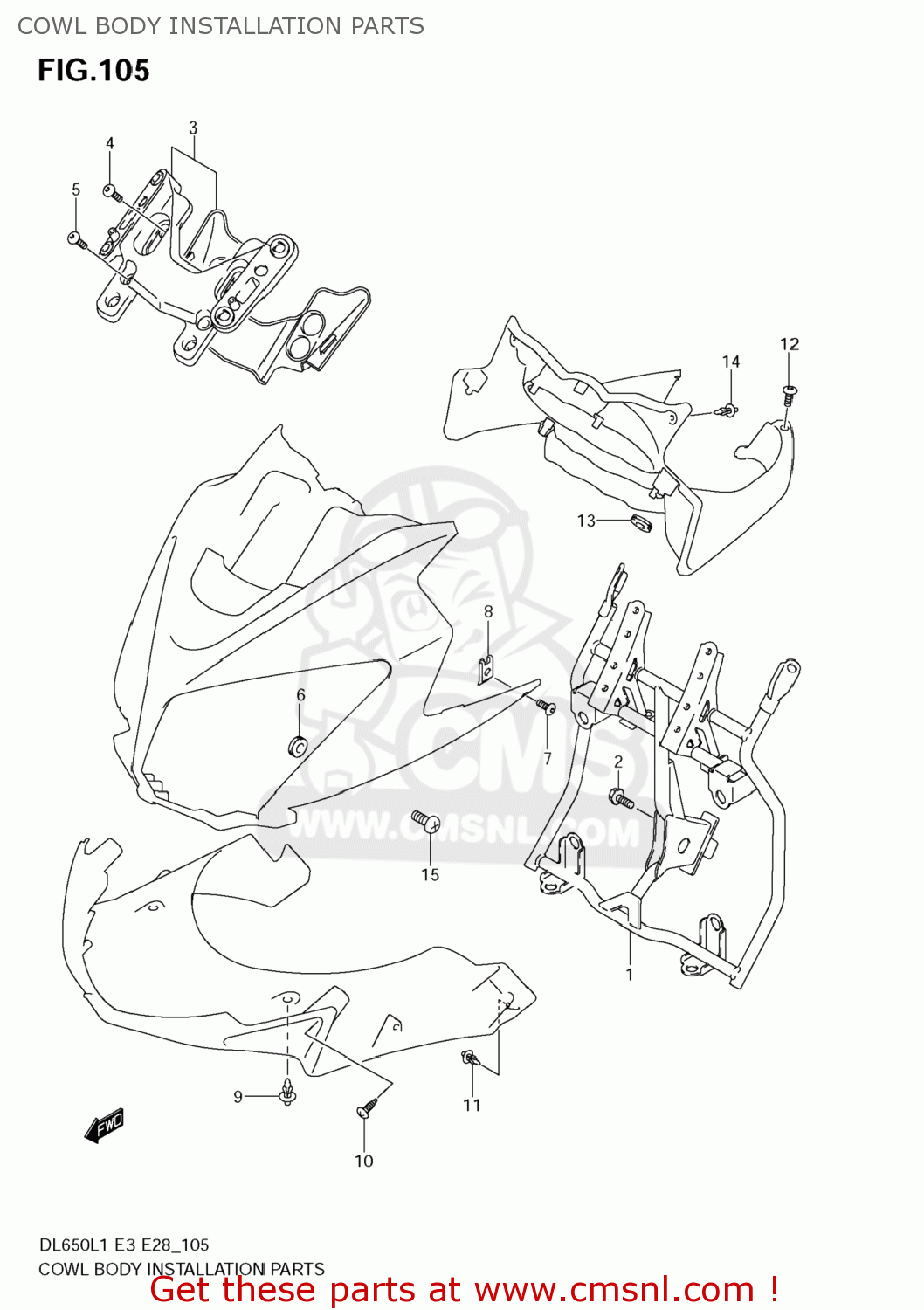

Cowl body installation parts diagram DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

9451027G01
ref: 1

BRACE,COWLING

€ 440.00

015500820B
ref: 2

BOLT

€ 3.00

9460027G00
ref: 3

BRACE ASSY,WINDSCREEN

€ 76.50

0913906126
ref: 4

SCREW(6X20)

€ 4.00

0913906120
ref: 5

SCREW(6X16)

€ 3.00

0932008028
ref: 6

CUSHION

€ 2.50

0913905064
ref: 7

SCREW(5X13)

€ 2.50

0914805038
ref: 8

NUT

€ 2.50

0940907333
ref: 9

CLIP

€ 2.50

032410516B
ref: 10

SCREW

€ 1.50

09409063145PK
ref: 11

CLIP(BLACK)

€ 3.50

0913906122
ref: 12

SCREW(6X10)

€ 3.00

0932006016
ref: 13

CUSHION

€ 4.50

09409063145PK
ref: 14

CLIP(BLACK)

€ 3.50

0913205057
ref: 15

SCREW(5X16)

€ 2.00
