FRONT FENDER (DL650 L1 E3)

DL650A VSTROM 2011 (L1) USA (E03)

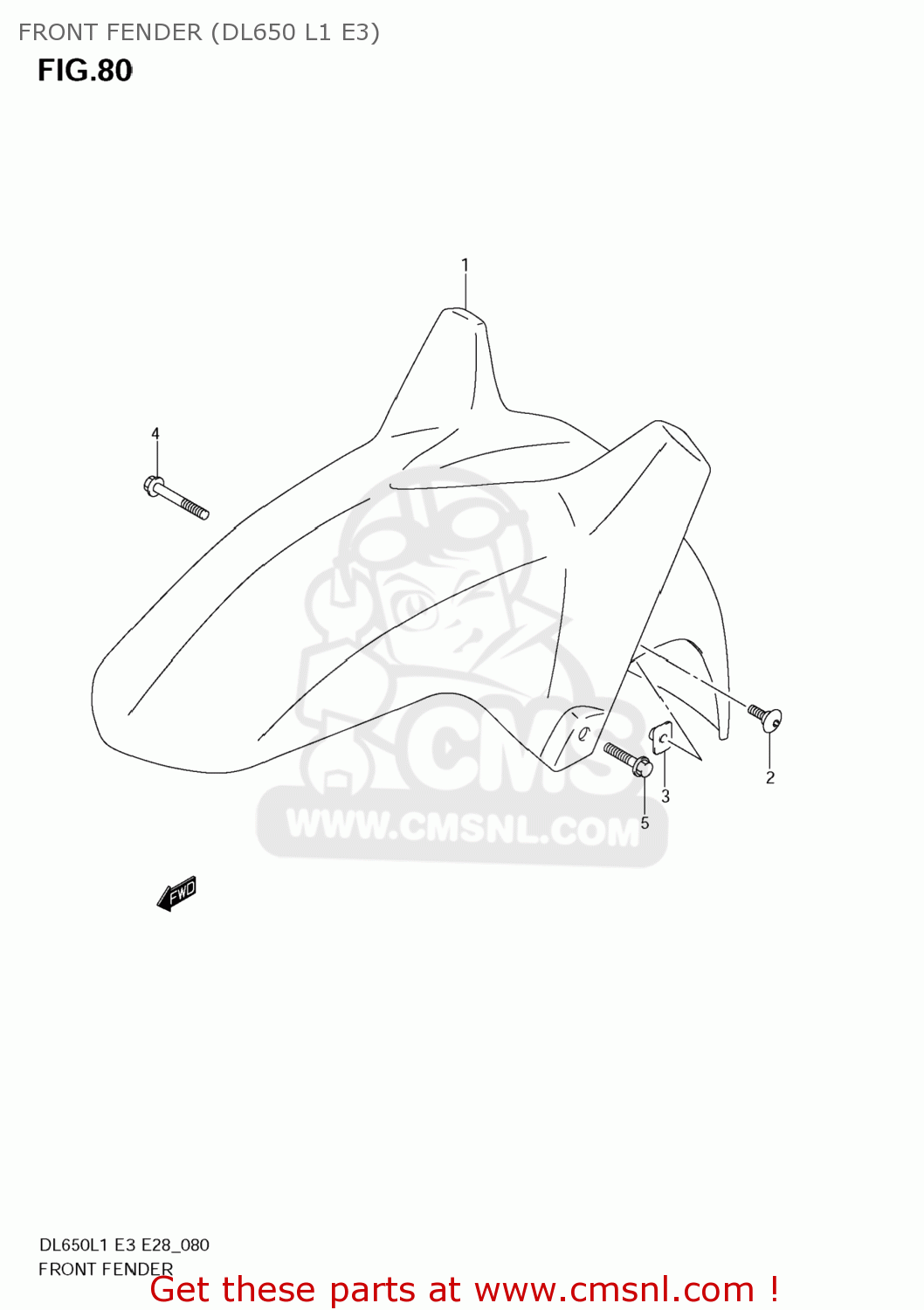

Front fender (dl650 l1 e3) diagram DL650A VSTROM 2011 (L1) USA (E03)

FRONT FENDER (DL650 L1 E3) DL650A VSTROM 2011 (L1) USA (E03)

FRONT FENDER (DL650 L1 E3) DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5311106G00YAY
ref: 1

FENDER,FR

€ 343.50

2

0913906131
ref: 2

SCREW(6X16)

€ 4.00

3

5312206G00
ref: 3

NUT,FR FENDER

€ 4.00

4

015470645A
ref: 4

BOLT

€ 2.50

5

015470630A
ref: 5

BOLT

€ 2.50
