FRONT DAMPER
DL650A VSTROM 2011 (L1) USA (E03)

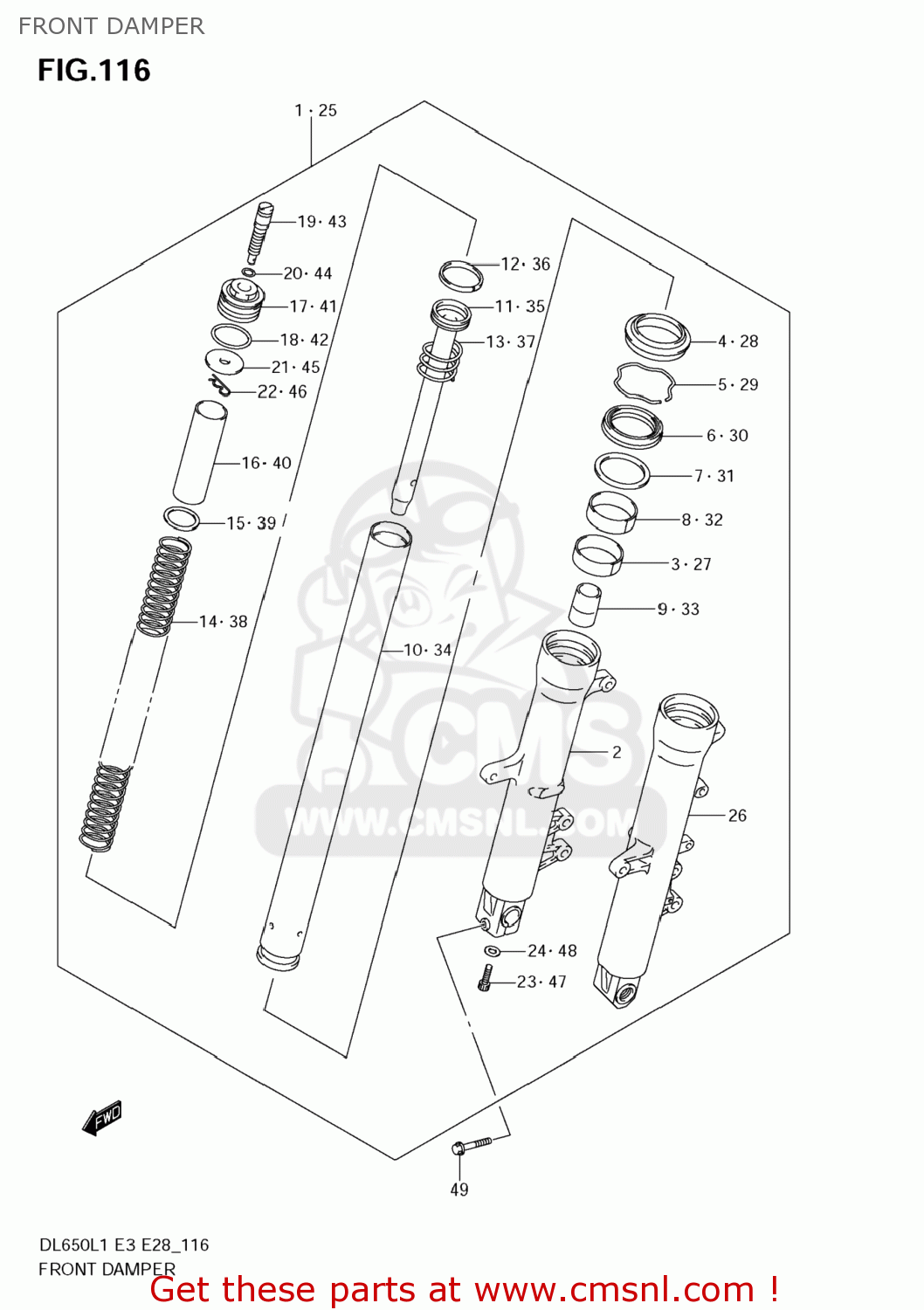

Front damper diagram DL650A VSTROM 2011 (L1) USA (E03)
FRONT DAMPER DL650A VSTROM 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110327G20
ref: 1
DAMPER ASSY,FR FORK,R
€ 1,009.00
2
5113127G20
ref: 2
TUBE,OUTER,R
€ 542.00
3
5112103F00
ref: 3
BUSH,SLIDE
€ 14.00
4
5117327G00
ref: 4
SEAL,DUST
€ 22.00
5
5155638B00
ref: 5
CIRCLIP,FORK OIL SEAL
€ 4.50
6
5155327G00
ref: 6
SEAL,OIL
€ 15.00
7
5116817C00
ref: 7
SPACER,SEAL
€ 5.00
8
5115213E00
ref: 8
BUSH,GUIDE
€ 23.50
9
5119527G00
ref: 9
PIECE,OIL LOCK
€ 15.00
10
5111027G00
ref: 10
TUBE,INNER
€ 387.00
11
5114627G00
ref: 11
CYLINDER
€ 53.50
12
5119627G00
ref: 12
RING,PISTON
€ 6.00
13
5117714D00
ref: 13
SPRING,REBOUND
€ 8.00
14
5117127G00
ref: 14
SPRING,FR
€ 96.00
15
5118617C00
ref: 15
SEAT,SPRING LWR
€ 4.50
16
5117627G00
ref: 16
COLLAR,SPRING
€ 14.50
17
5118927G00
ref: 17
BOLT,FORK
€ 72.00
18
5111717C00
ref: 18
O RING
€ 3.50
19
5118527G00
ref: 19
ADJUSTER BOLT,SPRING
€ 44.50
20
5118714D00
ref: 20
09280-14011
O RING
€ 3.50
21
5118612C00
ref: 21
SEAT,SPRING
€ 3.50
22
5118832B00
ref: 22
PIN,SEAT SPRING
€ 3.50
23
5114748130
ref: 23
BOLT(8X27)
€ 3.50
24
5114836011
ref: 24
GASKET (NAS)
€ 4.00
25
5110427G20
ref: 25
DAMPER ASSY,FR FORK,L
€ 1,009.00
26
5114127G20
ref: 26
TUBE,OUTER,L
€ 542.00
27
5112103F00
ref: 27
BUSH,SLIDE
€ 14.00
28
5117327G00
ref: 28
SEAL,DUST
€ 22.00
29
5155638B00
ref: 29
CIRCLIP,FORK OIL SEAL
€ 4.50
30
5155327G00
ref: 30
SEAL,OIL
€ 15.00
31
5116817C00
ref: 31
SPACER,SEAL
€ 5.00
32
5115213E00
ref: 32
BUSH,GUIDE
€ 23.50
33
5119527G00
ref: 33
PIECE,OIL LOCK
€ 15.00
34
5111027G00
ref: 34
TUBE,INNER
€ 387.00
35
5114627G00
ref: 35
CYLINDER
€ 53.50
36
5119627G00
ref: 36
RING,PISTON
€ 6.00
37
5117714D00
ref: 37
SPRING,REBOUND
€ 8.00
38
5117127G00
ref: 38
SPRING,FR
€ 96.00
39
5118617C00
ref: 39
SEAT,SPRING LWR
€ 4.50
40
5117627G00
ref: 40
COLLAR,SPRING
€ 14.50
41
5118927G00
ref: 41
BOLT,FORK
€ 72.00
42
5111717C00
ref: 42
O RING
€ 3.50
43
5118527G00
ref: 43
ADJUSTER BOLT,SPRING
€ 44.50
44
5118714D00
ref: 44
09280-14011
O RING
€ 3.50
45
5118612C00
ref: 45
SEAT,SPRING
€ 3.50
46
5118832B00
ref: 46
PIN,SEAT SPRING
€ 3.50
47
5114748130
ref: 47
BOLT(8X27)
€ 3.50
48
5114836011
ref: 48
GASKET (NAS)
€ 4.00
49
5132803FK0
ref: 49
BOLT(8X40)
€ 4.50
