WATER PUMP

DL650A VSTROM 2011 (L1) USA (E03)

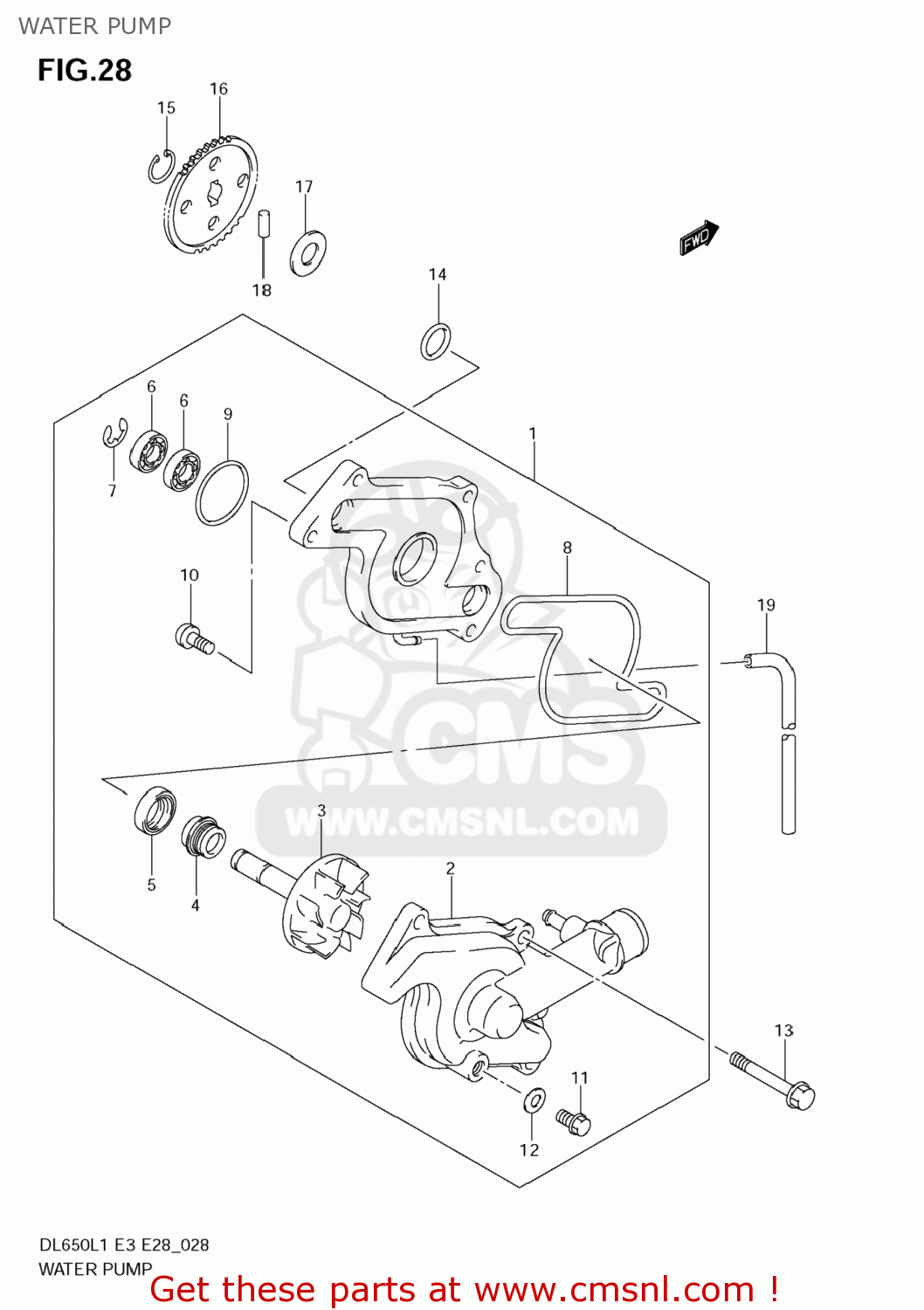

Water pump diagram DL650A VSTROM 2011 (L1) USA (E03)

WATER PUMP DL650A VSTROM 2011 (L1) USA (E03)

WATER PUMP DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1740019F50
ref: 1

PUMP ASSY,WATER

€ 393.50

2

1741119F50
ref: 2

CASE,WATER PUMP

€ 120.50

3

1749119F40
ref: 3

IMPELLER/SHAFT

€ 31.50

4

1747002F10
ref: 4

SEAL,MECHANICAL

€ 21.50

5

0928310004
ref: 5

SEAL,OIL(10X21X5)

€ 4.50

6

0926210014
ref: 6

BEARING(10X26X8)

€ 13.00

7

083321108A
ref: 7

E RING

€ 2.00

8

1741819F00
ref: 8

O RING

€ 6.00

9

1743533400
ref: 9

O RING,WATER PUMP HOLDER

€ 13.00

10

021120616B
ref: 10

SCREW

€ 2.00

11

1741520920
ref: 11

BOLT,DRAIN

€ 5.00

12

0916808016
ref: 12

GASKET(8.2X14X1) (NAS)

€ 1.00

13

0910306216
ref: 13

BOLT(6X55)

€ 2.50

14

0928022001
ref: 14

O RING(D:2.4,ID:21.8)

€ 2.00

15

083313110A
ref: 15

CIRCLIP

€ 2.00

16

1746119F00
ref: 16

GEAR,WATER PUMP DRIVEN

€ 37.50

17

0918110158
ref: 17

SHIM(10X18X0.5)

€ 2.50

18

0926104002
ref: 18

ROLLER(4X13.8)

€ 1.50

19

0935235653600
ref: 19

HOSE(3.5X6.5X600)

€ 12.50
