HYDRAULIC UNIT (DL650A L1 E28)

DL650A VSTROM 2011 (L1) USA (E03)

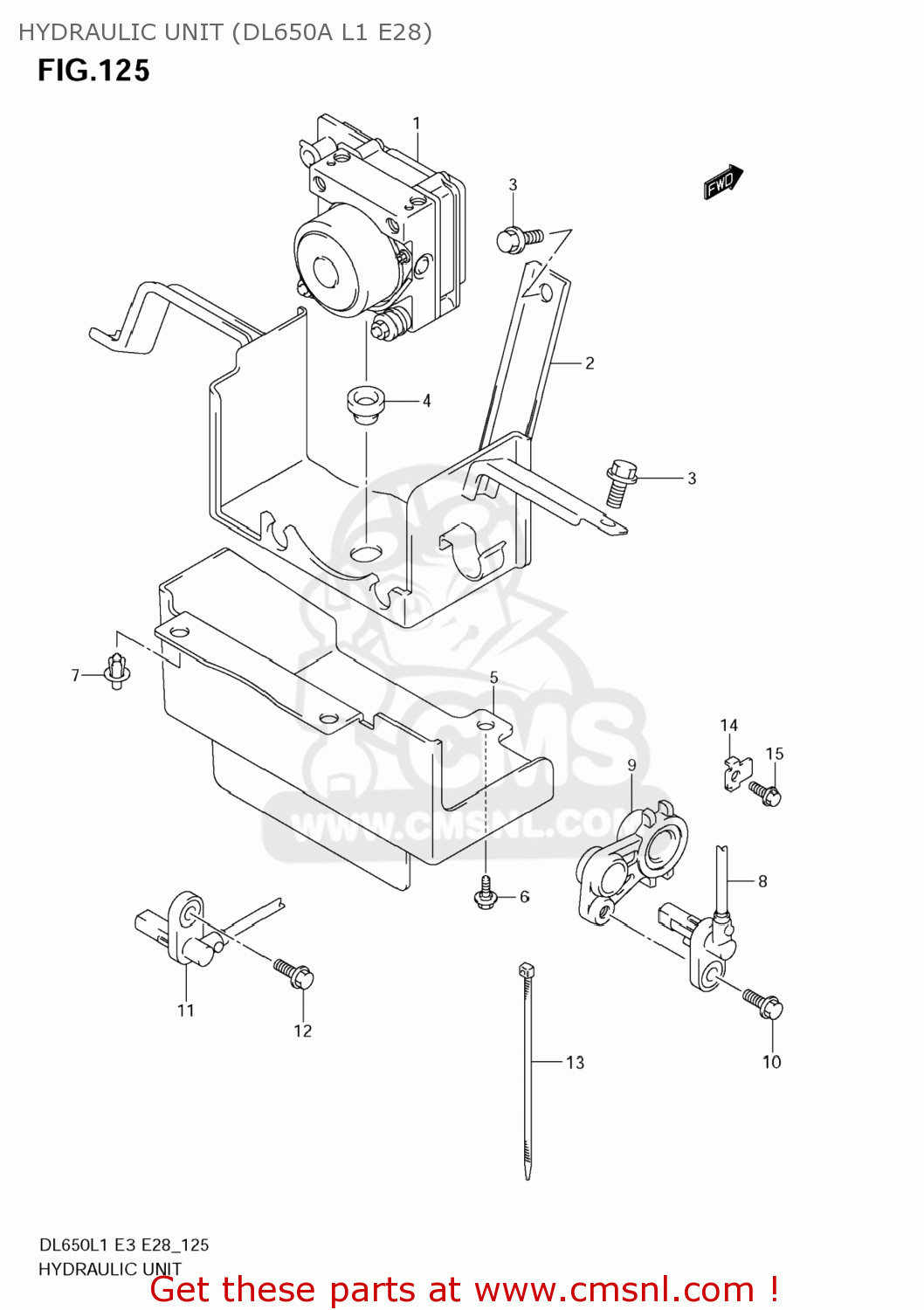

Hydraulic unit (dl650a l1 e28) diagram DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

5561027G01
ref: 1

UNIT ASSY,HYDRAULIC ABS

€ 2,687.50

5566027G00
ref: 2

HOLDER,HYDRAULIC UNIT ABS

€ 99.00

015500616A
ref: 3

BOLT

€ 2.50

5612158J00
ref: 4

DAMPER,ACTUATOR MOUNT

€ 0.00

5566727G10
ref: 5

COVER,HYDR ABS UNIT

€ 14.50

0911106065
ref: 6

BOLT(6X16)

€ 2.00

09409083085ES
ref: 7

CLIP(BLACK)

€ 2.00

5571027G00
ref: 8

SENSOR,FR WHEEL ABS

€ 221.00

5572027G00
ref: 9

BRACKET,SPEED SENSOR FR

€ 109.50

015500816A
ref: 10

BOLT

€ 2.50

6571027G00
ref: 11

SENSOR,RR WHEEL ABS

€ 248.00

015500816A
ref: 12

BOLT

€ 2.50

0940714407
ref: 13

CLAMP(L:145)

€ 4.00

3493814F00
ref: 14

GUIDE,SENSOR LEAD

€ 4.00

015470612B
ref: 15

BOLT

€ 2.00
