EVAP SYSTEM (DL650 L1 E33)

DL650A VSTROM 2011 (L1) USA (E03)

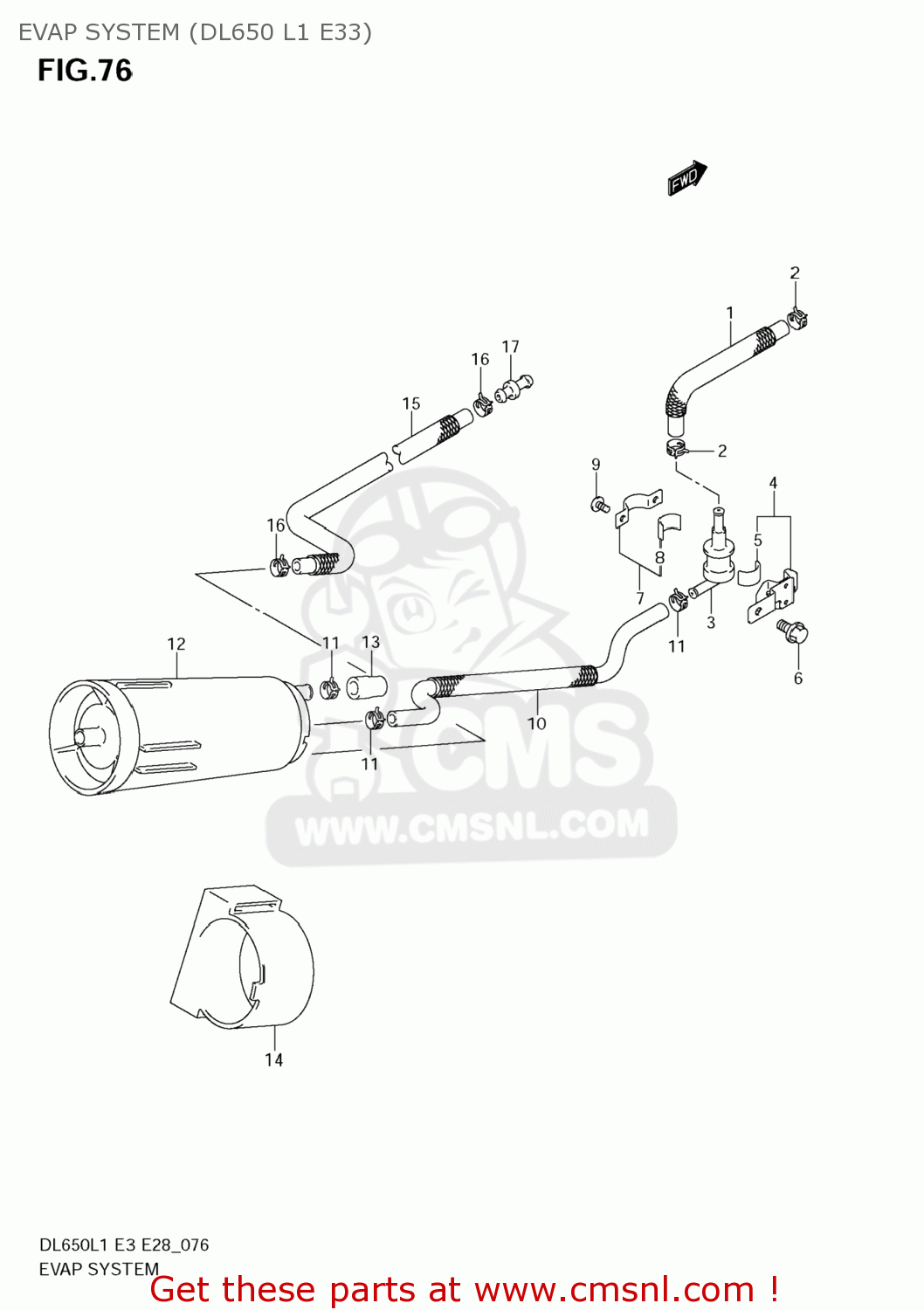

Evap system (dl650 l1 e33) diagram DL650A VSTROM 2011 (L1) USA (E03)

EVAP SYSTEM (DL650 L1 E33) DL650A VSTROM 2011 (L1) USA (E03)

EVAP SYSTEM (DL650 L1 E33) DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4443406G10
ref: 1

HOSE,TANK & BREATHER VALVE

€ 14.00

2

0940111413
ref: 2

CLIP

€ 2.50

3

4424017C00
ref: 3

VALVE,FUEL TANK BREATHER

€ 40.00

4

4489006G00
ref: 4

PLATE,BREATHER VALVE

€ 0.00

5

4489424A00
ref: 5

CUSHION

€ 1.50

6

015500612B
ref: 6

BOLT

€ 2.50

7

4489224A00
ref: 7

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

8

4489424A00
ref: 8

CUSHION

€ 1.50

9

021420408B
ref: 9

SCREW

€ 1.50

10

4443527G10
ref: 10

HOSE,BREATHER VALVE & CANISTER

€ 25.50

11

0940111413
ref: 11

CLIP

€ 2.50

12

1721026E00
ref: 12

CANISTER ASSY,CHARCOAL

€ 261.50

13

0925107005
ref: 13

CAP

€ 5.50

14

4488306G00
ref: 14

CUSHION,CANISTER

€ 8.00

15

4443606G10
ref: 15

HOSE,CSTR PURGE

€ 29.00

16

0940112404
ref: 16

CLIP

€ 2.50

17

0936706009
ref: 17

JOINT

€ 2.50
