REAR MASTER CYLINDER (DL650A L1 E33)

DL650A VSTROM 2011 (L1) USA (E03)

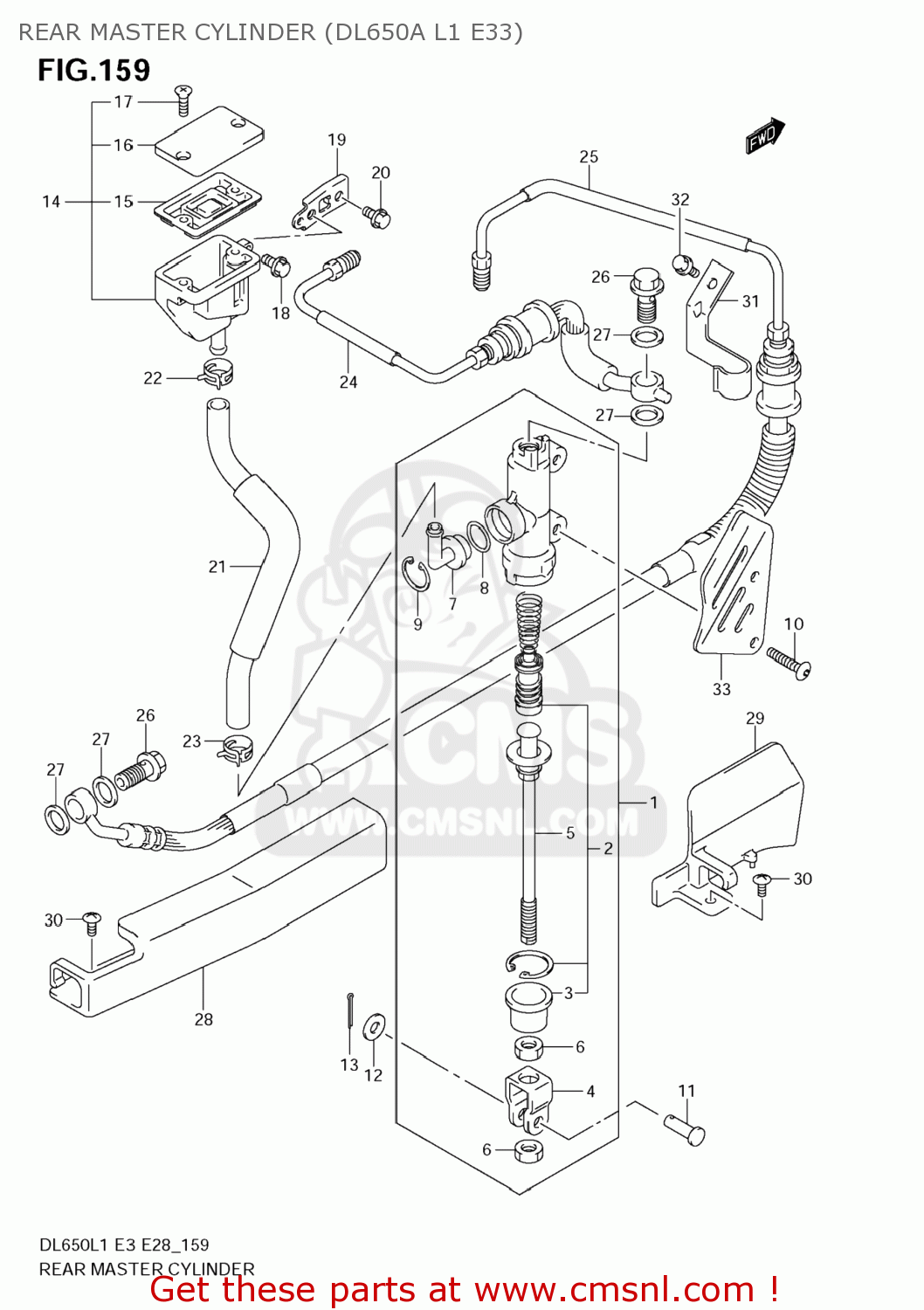

Rear master cylinder (dl650a l1 e33) diagram DL650A VSTROM 2011 (L1) USA (E03)

REAR MASTER CYLINDER (DL650A L1 E33) DL650A VSTROM 2011 (L1) USA (E03)

REAR MASTER CYLINDER (DL650A L1 E33) DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6960006G00
ref: 1

CYLINDER ASSY,RR MASTER

€ 131.50

2

6960034820
ref: 2

PISTON/CUP SET

€ 37.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969219A00
ref: 4

YOKE

€ 10.50

5

6967003G00
ref: 5

ROD,PUSH

€ 27.50

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967200B20
ref: 7

CONNECTOR

€ 5.00

8

6968634200
ref: 8

O RING

€ 3.50

9

6967400B20
ref: 9

CIRCLIP

€ 3.00

10

0913906029
ref: 10

SCREW(6X25)

€ 5.00

11

0920006068
ref: 11

PIN(6X18.2)

€ 5.00

12

083220106B
ref: 12

WASHER

€ 2.00

13

041112015A
ref: 13

PIN

€ 1.50

14

6974001D02
ref: 14

TANK ASSY,RR RESERVOIR

€ 58.00

15

5966704700
ref: 15

DIAPHRAGM

€ 8.00

16

5966905D00
ref: 16

CAP

€ 13.50

17

6968904A00
ref: 17

SCREW

€ 2.00

18

015470612A
ref: 18

BOLT

€ 2.00

19

6975027G10
ref: 19

BRACKET,RR RES

€ 12.00

20

015470612A
ref: 20

BOLT

€ 2.00

21

6973027G00
ref: 21

HOSE,RR RESERVOIR TANK

€ 25.00

22

0940113417
ref: 22

CLIP

€ 2.50

23

0940112404
ref: 23

CLIP

€ 2.50

24

6920027G00
ref: 24

HOSE ASSY,RR BRAKE NO.1

€ 87.00

25

6940027G00
ref: 25

HOSE ASSY,RR BRAKE NO.2

€ 100.50

26

0936010062
ref: 26

BOLT UNION

€ 5.00

27

0916110009
ref: 27

WASHER(10X15X1.5)

€ 2.00

28

6119627G00
ref: 28

GUIDE,REAR BRA

€ 15.50

29

6119606G00
ref: 29

GUIDE,RR BRAKE HOSE FR

€ 18.00

30

021420510A
ref: 30
02142-0510B

SCREW

€ 2.50

31

6926627G00
ref: 31

CLAMP,RR BRAKE HOSE NO.2

€ 9.50

32

015470612A
ref: 32

BOLT

€ 2.00

33

6964106G00
ref: 33

COVER,RR MASTER CYLINDER

€ 21.50
