ELECTRICAL

DL650A VSTROM 2011 (L1) USA (E03)

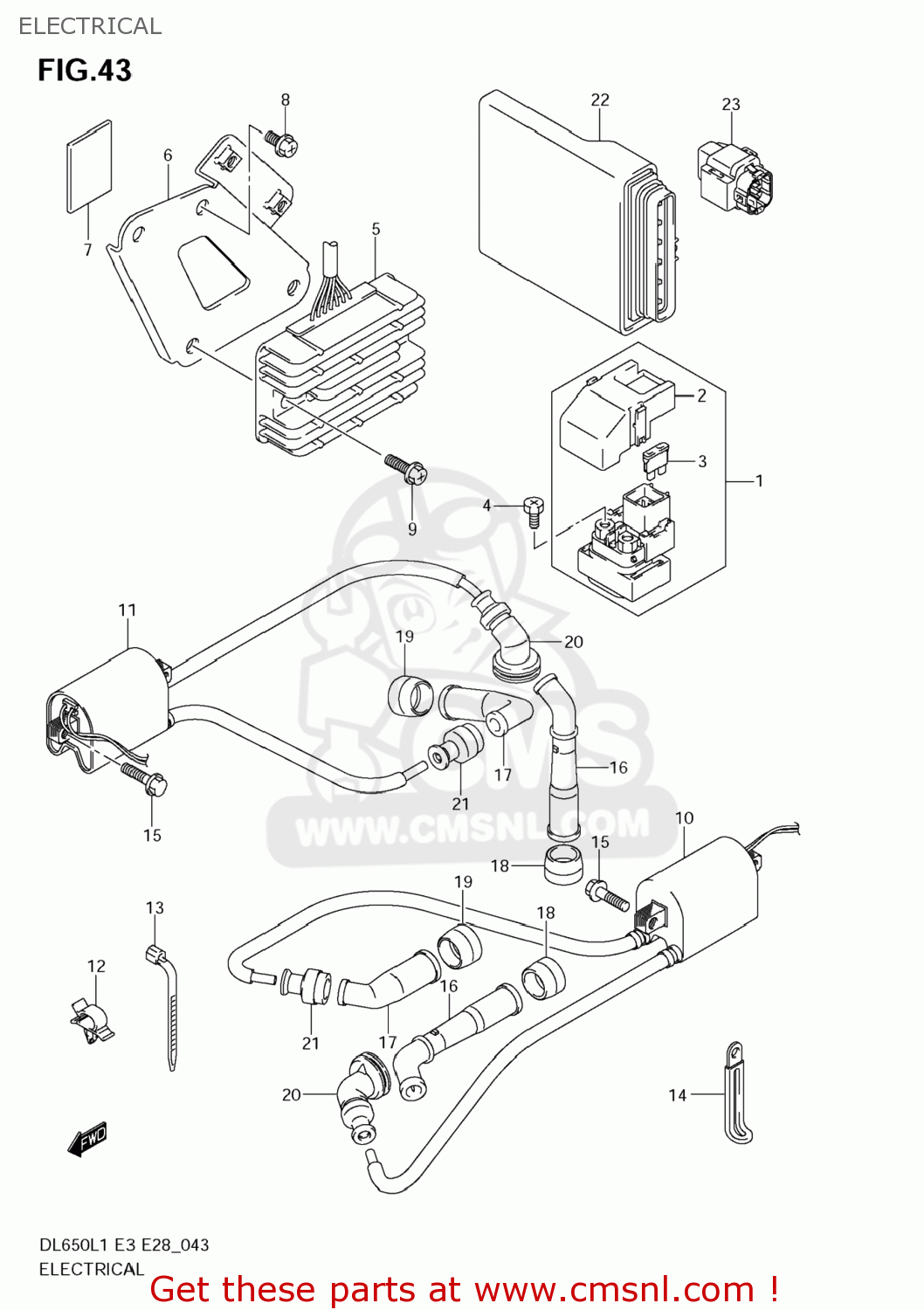

Electrical diagram DL650A VSTROM 2011 (L1) USA (E03)

ELECTRICAL DL650A VSTROM 2011 (L1) USA (E03)

ELECTRICAL DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3180006G00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 78.50

2

3186147E00
ref: 2

COVER

€ 10.50

3

0948130101
ref: 3

FUSE(30A)

€ 6.00

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280041G10
ref: 5

RECTIFIER ASSY

€ 268.50

6

3283127G20
ref: 6

BRACKET,RECT FTG

€ 11.00

7

3365236100
ref: 7

PROTECTOR,BATTERY

€ 2.50

8

021620610B
ref: 8

SCREW

€ 1.50

9

021620620B
ref: 9

SCREW

€ 2.00

10

3341027G00
ref: 10

COIL ASSY,IGNITION FR

€ 113.00

11

3342027G00
ref: 11

COIL ASSY,IGNITION RR

€ 94.00

12

0940310319
ref: 12

CLAMP

€ 2.50

13

0940718402
ref: 13

CLAMP(L:165)

€ 2.50

14

0940406429
ref: 14

CLAMP(L:45)

€ 2.50

15

015470625A
ref: 15

BOLT

€ 2.50

16

3351017G00
ref: 16

CAP ASSY,SPARK PLUG

€ 28.50

17

3351020E00
ref: 17

CAP ASSY,SPARK PLUG

€ 22.50

18

3354123E10
ref: 18

SEAL,SPARK PLUG

€ 5.00

19

3354147D00
ref: 19

SEAL,SPARK PLUG

€ 7.00

20

3354217G01
ref: 20

SEAL,HIGH TENSION CORD CTR

€ 5.50

21

3354238B00
ref: 21

SEAL,HIGH TENSION CORD

€ 4.50

22

3292027GC1
ref: 22

CONTROL UNIT,FI

€ 675.00

23

3396027G00
ref: 23

SENSOR ASSY,FUEL CUT

€ 72.00
