CRANKCASE
DL650A VSTROM 2011 (L1) USA (E03)

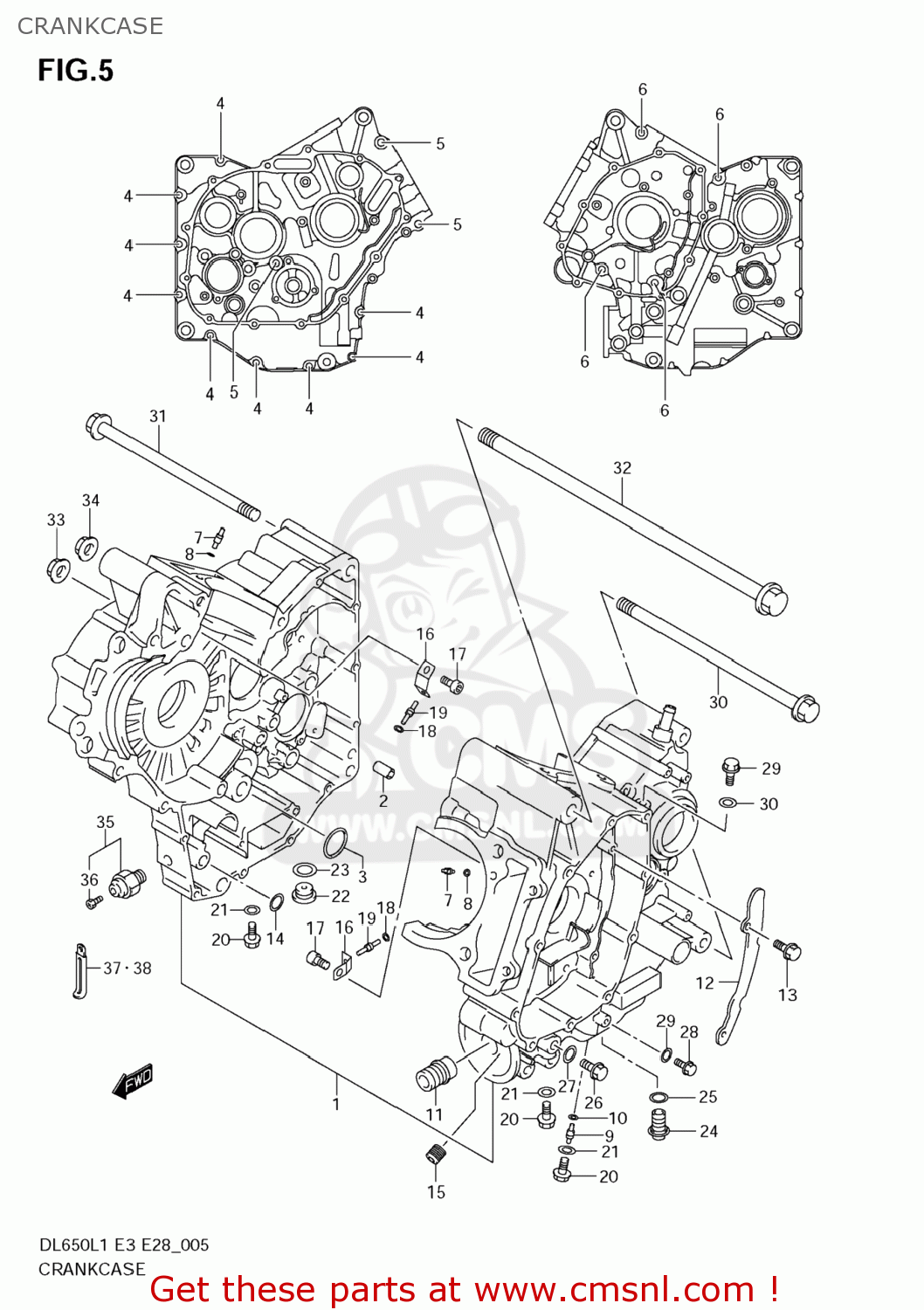

Crankcase diagram DL650A VSTROM 2011 (L1) USA (E03)
CRANKCASE DL650A VSTROM 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130120883
ref: 1
CRANKCASE SET
€ 2,002.50
2
0920611007
ref: 2
PIN(8.4X11X20)
€ 1.50
3
0928015007
ref: 3
O RING(D:2.4,ID:15.8)
€ 2.00
4
015470650A
ref: 4
BOLT
€ 2.50
5
071200855A
ref: 5
BOLT
€ 2.50
6
071200880A
ref: 6
BOLT
€ 3.00
7
0949328010
ref: 7
JET,AIR(14)
€ 10.50
8
0928004004
ref: 8
O RING(D:1.2,ID:4)
€ 2.00
9
0949328010
ref: 9
JET,AIR(14)
€ 10.50
10
0928004004
ref: 10
O RING(D:1.2,ID:4)
€ 2.00
11
1659106B01
ref: 11
UNION,OIL STAND
€ 6.00
12
1132319F00
ref: 12
PLATE,OIL SEPARATOR
€ 3.00
13
015470612A
ref: 13
BOLT
€ 2.00
14
0928012009
ref: 14
O RING(D:1.9,ID:12.6)
€ 2.50
15
1132917G00
ref: 15
JET,OIL GALLERY(3.6)
€ 6.00
16
1643819F00
ref: 16
PLATE,PISTON COOLING JET
€ 2.50
17
0910606075
ref: 17
BOLT(6X12)
€ 2.50
18
0928004004
ref: 18
O RING(D:1.2,ID:4)
€ 2.00
19
0949326007
ref: 19
JET(13)
€ 13.50
20
015500812A
ref: 20
BOLT
€ 2.50
21
0916808016
ref: 21
GASKET(8.2X14X1) (NAS)
€ 1.00
22
0924816012
ref: 22
PLUG,16X8
€ 4.50
23
0916816002
ref: 23
GASKET(16X22X2) (NAS)
€ 2.00
24
0924712011
ref: 24
PLUG(12X20)
€ 4.50
25
0916812002
ref: 25
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
26
0924712006
ref: 26
PLUG(12X10)
€ 2.50
27
0916812017
ref: 27
GASKET(12X17X1) (NAS)
€ 2.00
28
015470610A
ref: 28
BOLT
€ 2.00
29
0916806023
ref: 29
GASKET(5.8X13X1.2) (NAS)
€ 2.00
30
0910310347
ref: 30
BOLT(10X275)
€ 12.00
31
0910310205
ref: 31
BOLT(10X225)
€ 9.50
32
0910312054
ref: 32
BOLT(12X310)
€ 15.00
33
083193110A
ref: 33
NUT
€ 3.00
34
0915912054
ref: 34
NUT
€ 8.00
35
3782033D10
ref: 35
SWITCH ASSY,OIL PRESSURE
€ 29.00
36
3782233D00
ref: 36
BOLT,OIL PRESSURE SWITCH
€ 3.00
37
0940406429
ref: 37
CLAMP(L:45)
€ 2.50
38
0940406433
ref: 38
CLAMP(L:80)
€ 3.00
