REAR WHEEL (DL650 L1 E28)

DL650A VSTROM 2011 (L1) USA (E03)

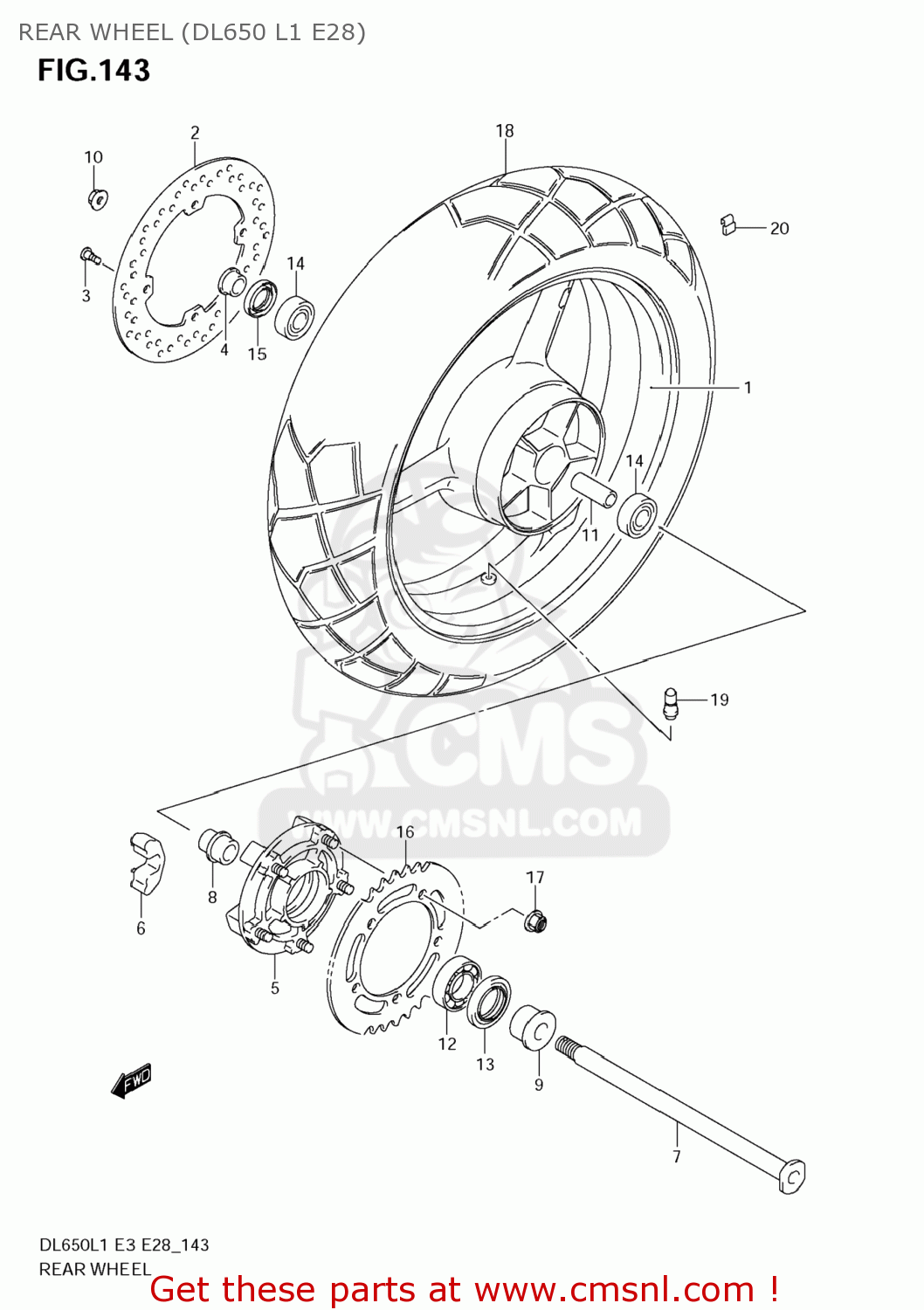

Rear wheel (dl650 l1 e28) diagram DL650A VSTROM 2011 (L1) USA (E03)

REAR WHEEL (DL650 L1 E28) DL650A VSTROM 2011 (L1) USA (E03)

REAR WHEEL (DL650 L1 E28) DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6411106G10019
ref: 1-1

WHEEL,RR(17M/CXMT4.00)

€ 1,205.50

1-1

6411106G10019
ref: 1-1

WHEEL,RR(17M/CXMT4.00)

€ 1,205.50

1-2

6411106G10YD8
ref: 1-2

WHEEL,RR(17M/CXMT4.00)

€ 851.50

1-2

6411106G10YD8
ref: 1-2

WHEEL,RR(17M/CXMT4.00)

€ 851.50

2

6921106G00
ref: 2

DISC,RR BRAKE

€ 121.00

3

0910608160
ref: 3

BOLT(8X21)

€ 3.50

4

6474110F00
ref: 4

SPACER,RR AXLE,R

€ 16.00

5

6461035F10
ref: 5

DRUM, REAR SPROCKET

€ 219.00

6

6465135F10
ref: 6

ABSORBER,RR HUB SHOCK

€ 10.50

7

6471103F00
ref: 7

AXLE,RR

€ 77.00

8

6473306G00
ref: 8

RETAINER,RR SPROCKET DRUM

€ 21.00

9

6475127G00
ref: 9

SPACER,RR AXLE,L

€ 19.50

10

083193118A
ref: 10

NUT

€ 17.50

11

0918020112
ref: 11

SPACER(20.8X27.2X124)

€ 21.00

12

0926232007
ref: 12
09262-32022

BEARING

€ 49.00

13

0928539001
ref: 13

SEAL,OIL(39X65X7)

€ 9.00

14

0812362047
ref: 14

BEARING

€ 17.00

15

0928528001
ref: 15

SEAL,OIL(28X47X7)

€ 11.50

16

6451127G00
ref: 16

SPROCKET,RR(47T-525)

€ 60.50

17

083193110A
ref: 17

NUT

€ 3.00

18

6511006G10
ref: 18

TIRE,REAR,150/

€ 175.50

18

6511006G10
ref: 18

TIRE,REAR,150/

€ 175.50

19

4313024A00
ref: 19

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

20-1

4322273H10
ref: 20-1

WEIGHT,WHEEL BALANCE 10G

€ 4.00

20-2

4322473H10
ref: 20-2

WEIGHT,WHEEL BALANCE 20G

€ 5.00

20-3

4322673H10
ref: 20-3

WEIGHT,WHEEL BALANCE 30G

€ 6.00
