FRONT WHEEL (DL650 L1 E33)

DL650A VSTROM 2011 (L1) USA (E03)

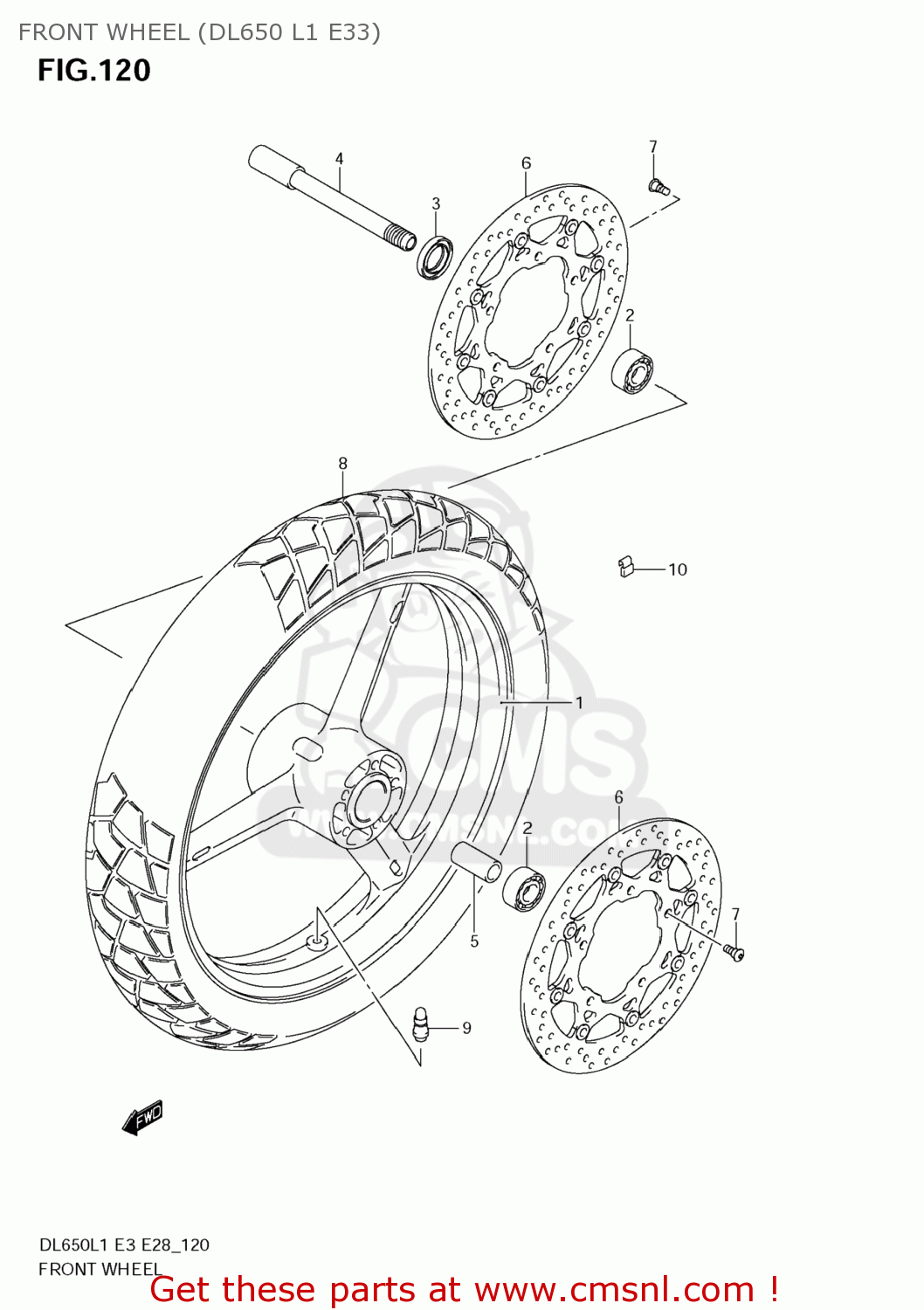

Front wheel (dl650 l1 e33) diagram DL650A VSTROM 2011 (L1) USA (E03)

FRONT WHEEL (DL650 L1 E33) DL650A VSTROM 2011 (L1) USA (E03)

FRONT WHEEL (DL650 L1 E33) DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5411127G10019
ref: 1-1
54111-27G30-019

WHEEL,FR(19M/C

€ 882.50

1-1

5411127G10019
ref: 1-1
54111-27G30-019

WHEEL,FR(19M/C

€ 882.50

1-2

5411127G10YD8
ref: 1-2

WHEEL FR SILVER

€ 779.50

1-2

5411127G10YD8
ref: 1-2

WHEEL FR SILVER

€ 779.50

2

0813362037
ref: 2

BEARING

€ 24.50

3

0928522004
ref: 3

SEAL,OIL(22X40X7)

€ 5.50

4

5471108F00
ref: 4

AXLE,FR

€ 69.00

5

0918017067
ref: 5

SPACER(17.5X25X88)

€ 13.50

6

5921044G11
ref: 6

DISC,FR BRAKE

€ 211.00

7

0910608160
ref: 7

BOLT(8X21)

€ 3.50

8

5511006G10
ref: 8

TIRE,FRONT,110

€ 143.00

8

5511006G10
ref: 8

TIRE,FRONT,110

€ 143.00

9

4313024A00
ref: 9

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

10-1

4322273H10
ref: 10-1

WEIGHT,WHEEL BALANCE 10G

€ 4.00

10-2

4322473H10
ref: 10-2

WEIGHT,WHEEL BALANCE 20G

€ 5.00

10-3

4322673H10
ref: 10-3

WEIGHT,WHEEL BALANCE 30G

€ 6.00
