REAR FENDER (DL650A L1 E3)

DL650A VSTROM 2011 (L1) USA (E03)

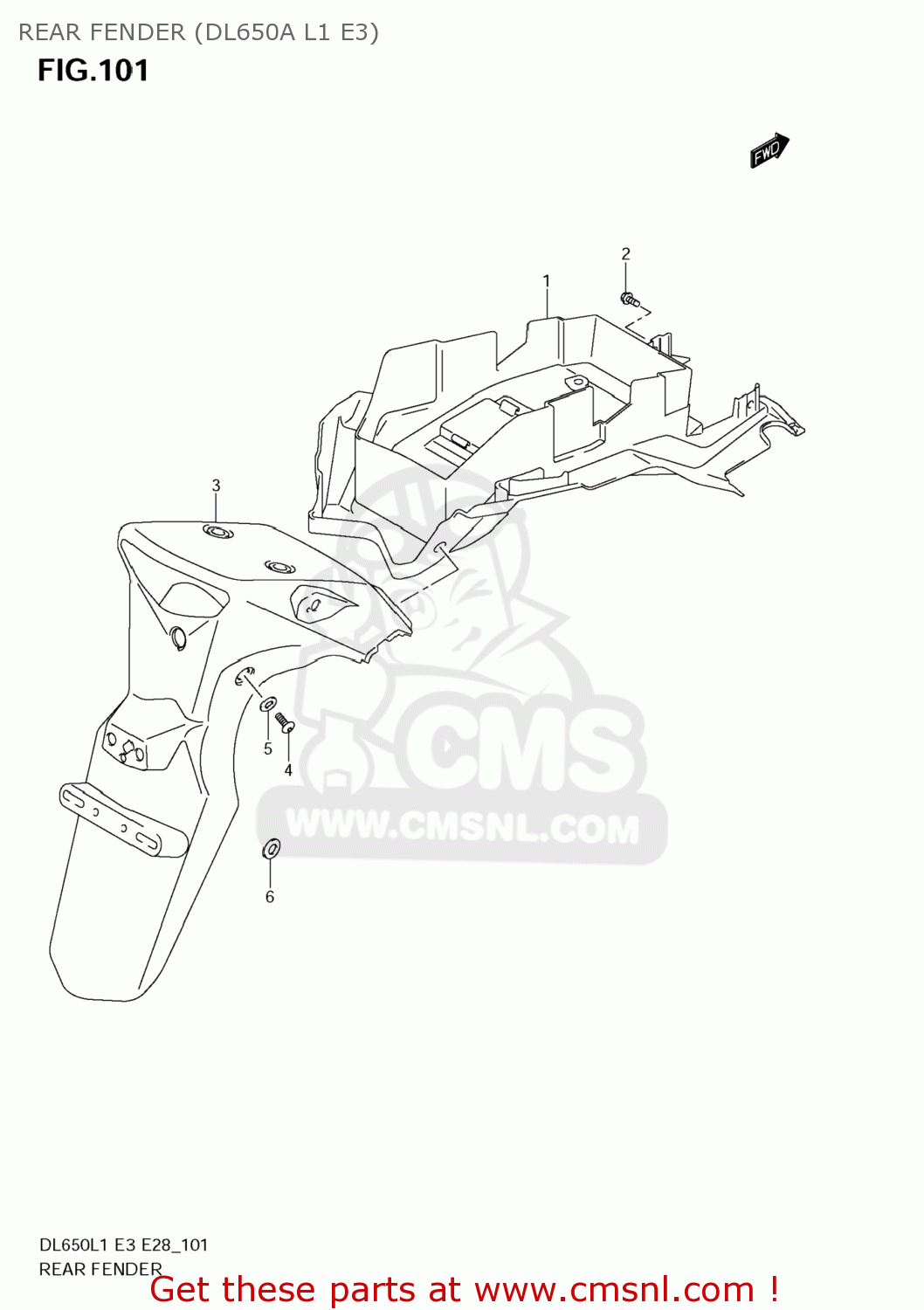

Rear fender (dl650a l1 e3) diagram DL650A VSTROM 2011 (L1) USA (E03)

REAR FENDER (DL650A L1 E3) DL650A VSTROM 2011 (L1) USA (E03)

REAR FENDER (DL650A L1 E3) DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311127GA1
ref: 1

FENDER,RR

€ 112.50

2

0911606210
ref: 2

BOLT(6X12)

€ 1.50

3

6311227G105PK
ref: 3

FENDER,RR RR

€ 99.00

4

0913906140
ref: 4

SCREW(6X16)

€ 3.50

5

0916006156
ref: 5

WASHER(6.5X18X1.6)

€ 1.50

6

083220106B
ref: 6

WASHER

€ 2.00
