REAR SWINGING ARM

DL650A VSTROM 2011 (L1) USA (E03)

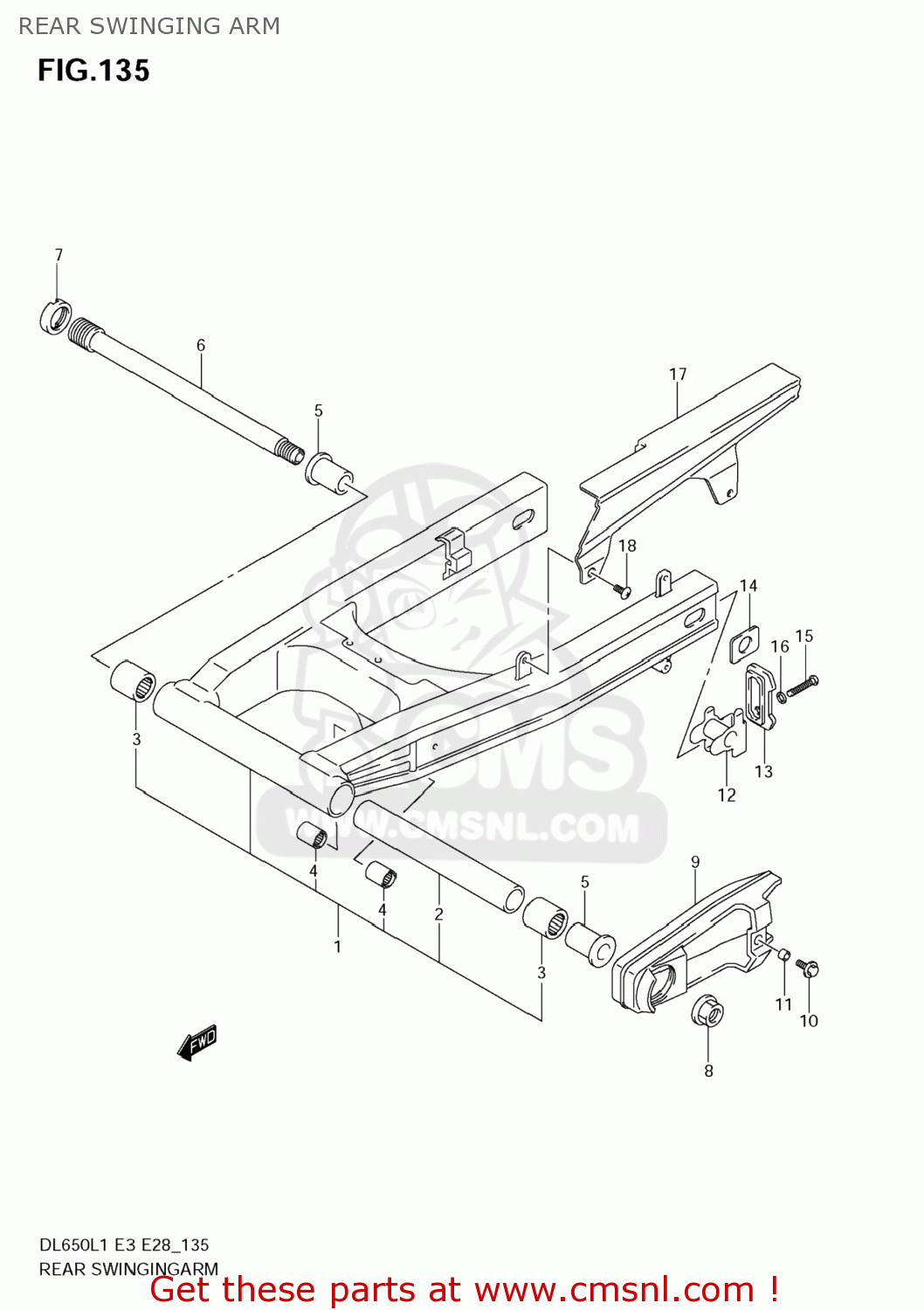

Rear swinging arm diagram DL650A VSTROM 2011 (L1) USA (E03)

REAR SWINGING ARM DL650A VSTROM 2011 (L1) USA (E03)

REAR SWINGING ARM DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6100027G20
ref: 1

SWINGINGARM AS

€ 910.00

2

0918020118
ref: 2

SPACER(20.8X27.2X196.7)

€ 13.50

3

0926325059
ref: 3

BEARING(25X33X35)

€ 35.00

4

0926317037
ref: 4

BEARING(17X24X25)

€ 19.00

5

6125131E00
ref: 5

SPACER,RR SWGARM PIVOT BERRING

€ 16.00

6

6121106G00
ref: 6

SHAFT,RR SWINGINGARM PIVOT

€ 62.50

7

6121419F00
ref: 7
61214-19F10

NUT,REAR SWING ARM PIVOT BOLT

€ 8.50

8

083193118A
ref: 8

NUT

€ 17.50

9

6127327G00
ref: 9

BUFFER,CHAIN TOUCH DEFENSE

€ 22.00

10

0911606152
ref: 10

BOLT(6X20)

€ 2.00

11

0918006283
ref: 11

SPACER(6.5X10X7)

€ 2.00

12

6141003F00
ref: 12

ADJUSTER,CHAIN

€ 12.50

13-1

6142133D01
ref: 13-1

PLATE,CHAIN ADJUSTER GUIDE,R

€ 17.00

13-2

6142233D01
ref: 13-2

PLATE,CHAIN ADJUSTER GUIDE,L

€ 17.00

14-1

6471203F00
ref: 14-1

WASHER,CHAIN ADJUSTER

€ 5.00

14-2

6471303F00
ref: 14-2

WASHER,CHAIN ADJUSTER

€ 4.00

15

0910608119
ref: 15

BOLT(8X50)

€ 4.50

16

0916408015
ref: 16

WASHER

€ 3.00

17

6131016G00
ref: 17

CASE,CHAIN

€ 44.00

18

0913906083
ref: 18

SCREW(6X16)

€ 2.50
