FOOTREST
DL650A VSTROM 2011 (L1) USA (E03)

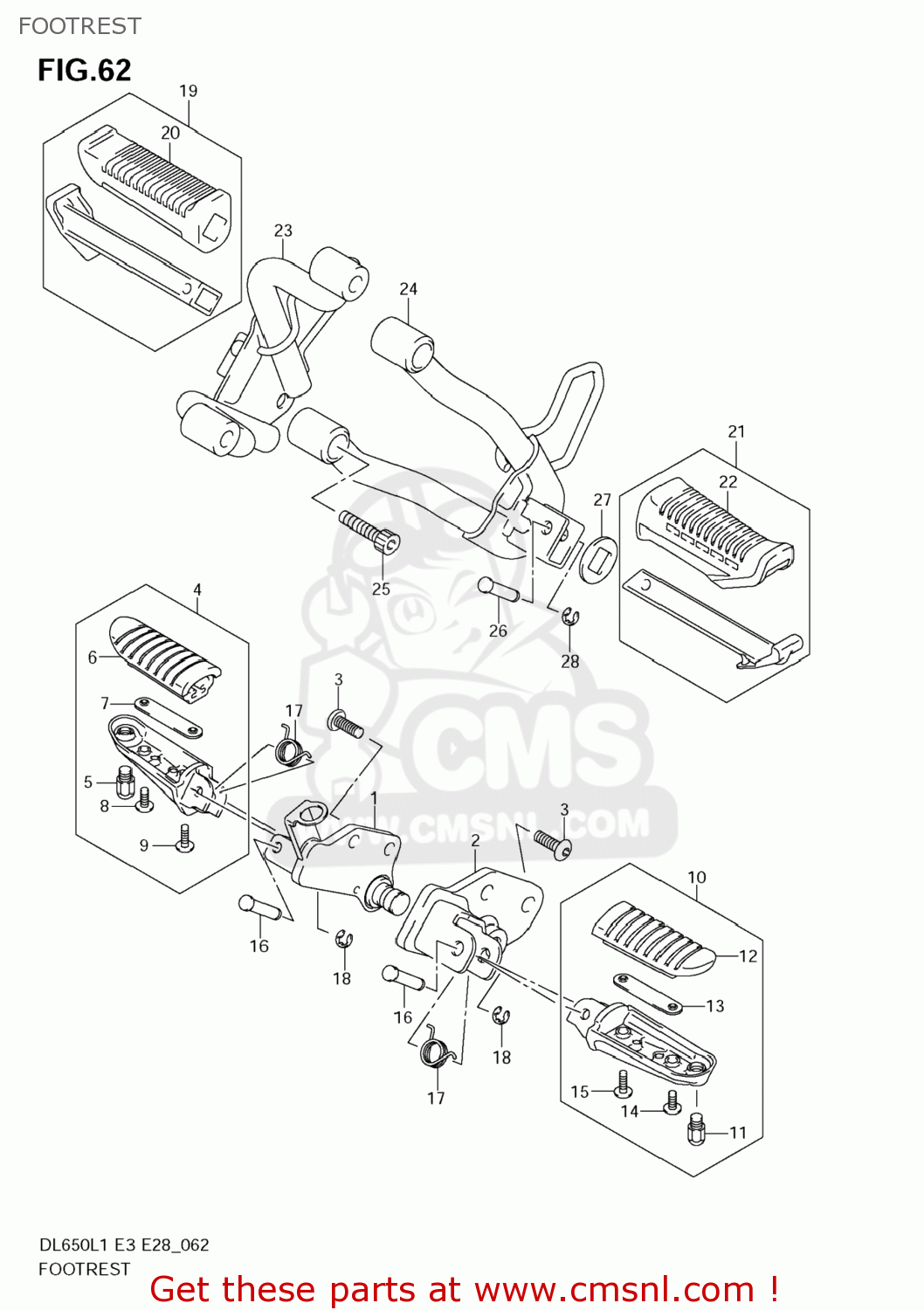

Footrest diagram DL650A VSTROM 2011 (L1) USA (E03)
FOOTREST DL650A VSTROM 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351027G01YAP
ref: 1
BRACKET,FR FOO
€ 57.00
2
4352027G01YAP
ref: 2
BRACKET,FR FOO
€ 28.50
3
0910608150
ref: 3
BOLT(8X23)
€ 3.50
4
4350106G01
ref: 4
FOOTREST ASSY,PILLION,R
€ 49.00
5
4357607D01
ref: 5
BOLT,BANK SENSOR
€ 8.00
6
4355106G00
ref: 6
RUBBER,FOOTREST
€ 7.50
7
4355206G00
ref: 7
PLATE,FR FOOTREST RUBBER
€ 6.50
8
021420516B
ref: 8
SCREW
€ 2.50
9
021420520B
ref: 9
SCREW
€ 2.00
10
4350206G01
ref: 10
FOOTREST ASSY,PILLION,L
€ 79.50
11
4357607D01
ref: 11
BOLT,BANK SENSOR
€ 8.00
12
4355106G00
ref: 12
RUBBER,FOOTREST
€ 7.50
13
4355206G00
ref: 13
PLATE,FR FOOTREST RUBBER
€ 6.50
14
021420516B
ref: 14
SCREW
€ 2.50
15
021420520B
ref: 15
SCREW
€ 2.00
16
0920808010
ref: 16
PIN(8X33.2)
€ 3.00
17
0944818022
ref: 17
SPRING
€ 3.50
18
083321106B
ref: 18
E RING
€ 2.00
19
4360012B00
ref: 19
FOOTREST ASSY,PILLION,R
€ 20.00
20
4355129B21
ref: 20
RUBBER,FOOTREST
€ 14.50
21
4355129B21
ref: 21
RUBBER,FOOTREST
€ 14.50
22
4370012B00
ref: 22
FOOTREST ASSY,PILLION,L
€ 22.00
23
4381027G10019
ref: 23
BRACKET,PILLION FOOTREST,R
€ 121.00
24
4382027G01019
ref: 24
BRACKET,PILLION FOOTREST,L(BLA
€ 90.50
25
0910608074
ref: 25
BOLT(8X40)
€ 3.50
26
0920806008
ref: 26
PIN(6X29.5)
€ 2.50
27
4363134A01
ref: 27
WASHER,FOOTREST RUBBER
€ 6.50
28
083321104A
ref: 28
E RING
€ 2.00
